Order no.: 0161800

EDL-606

P2000

Order no.: 0161800

EDL-606

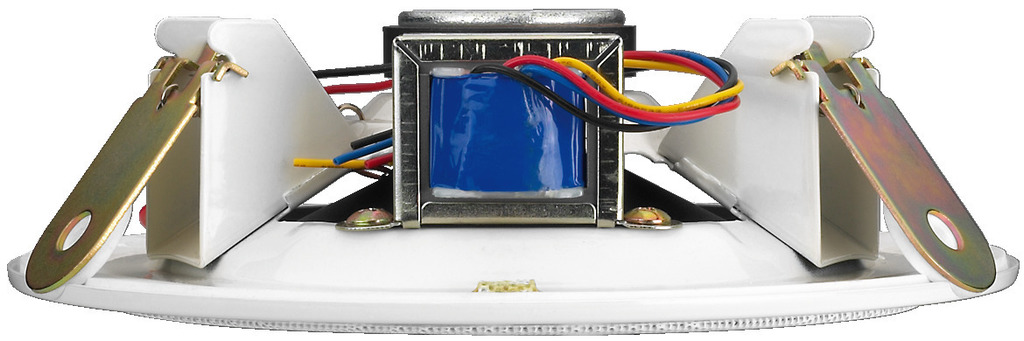

PA ceiling speaker

100 V transmission technology via audio transformer with 3 power taps 6/3/1.5 W
For a ceiling thickness from 5 to 22 mm
Type 165 full range speaker
A more powerful reproduction of the range of fundamental notes
Robust metal version (basket and protective grille)

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

PA ceiling speaker

100 V transmission technology via audio transformer with 3 power taps 6/3/1.5 W
For a ceiling thickness from 5 to 22 mm
Type 165 full range speaker
A more powerful reproduction of the range of fundamental notes
Robust metal version (basket and protective grille)

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Transmission technology	100 V
Frequency range	100-20,000 Hz
Power rating (RMS)	6/3/1.5 W
SPL	92 dB/W/m

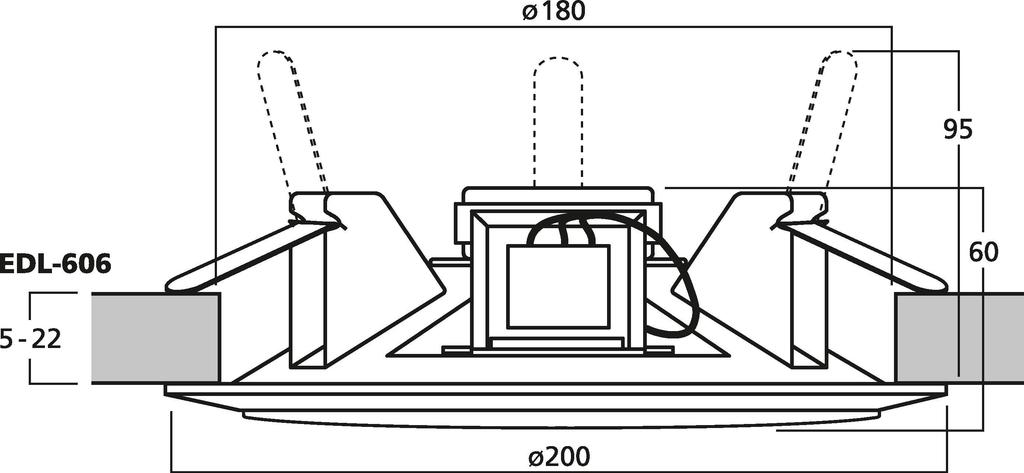

Mounting cutout	Ø 180 mm
Mounting depth	50 mm
Dimensions	Ø 200 mm x 60 mm
Outside diameter	Ø 200 mm
Width	Ø 200 mm
Height	Ø 200 mm
Depth	60 mm
Colour	white
Admiss. ambient temp.	0-40 °C
Weight	698 g
Packing unit	1
Type of speaker	165
Packaging dimensions (W x H x L)	0.24 x 0.1 x 0.25 m
Gross weight	0.946 kg
Net weight	0.698 kg

EAN code	4007754181708
Net weight	0.698 kg

Downloads

Accessories for EDL-606

Order no.: 0111340

JYSTY-2208

Signal line, type J-Y(St)Y, 4 x 0.5 mm2, 100 m

Intended use:
signal, 100 V PA, alarm, communication

Cable specification:
J-Y(ST)Y

Length:
100 m

Order no.: 0111340

JYSTY-2208

Signal line, type J-Y(St)Y, 4 x 0.5 mm2, 100 m
