Order no.: 0163170

EDL-612EN

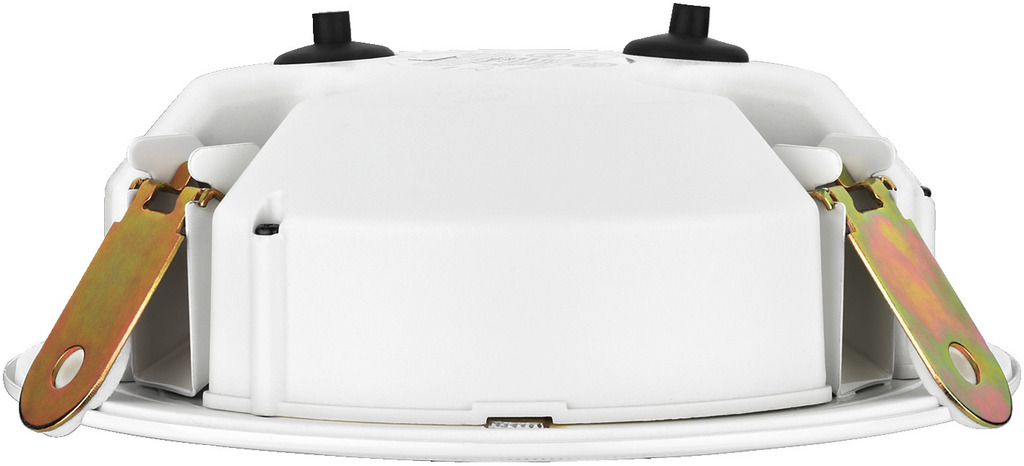

PA ceiling speaker,

with EN 54-24 certification.

100 V transmission technology with 3 power taps 12/6/3 W
Type 165 full range speaker with optimised voice reproduction
Plastic cover with low mounting depth
For a ceiling thickness from 5 to 22 mm
Quick installation
Robust metal basket and protective grille

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

PA ceiling speaker,

with EN 54-24 certification.

100 V transmission technology with 3 power taps 12/6/3 W
Type 165 full range speaker with optimised voice reproduction
Plastic cover with low mounting depth
For a ceiling thickness from 5 to 22 mm
Quick installation
Robust metal basket and protective grille

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Transmission technology	100 V
Frequency range	120-15,000 Hz
Power rating (RMS)	12/6/3 W
SPL	93 dB/W/m

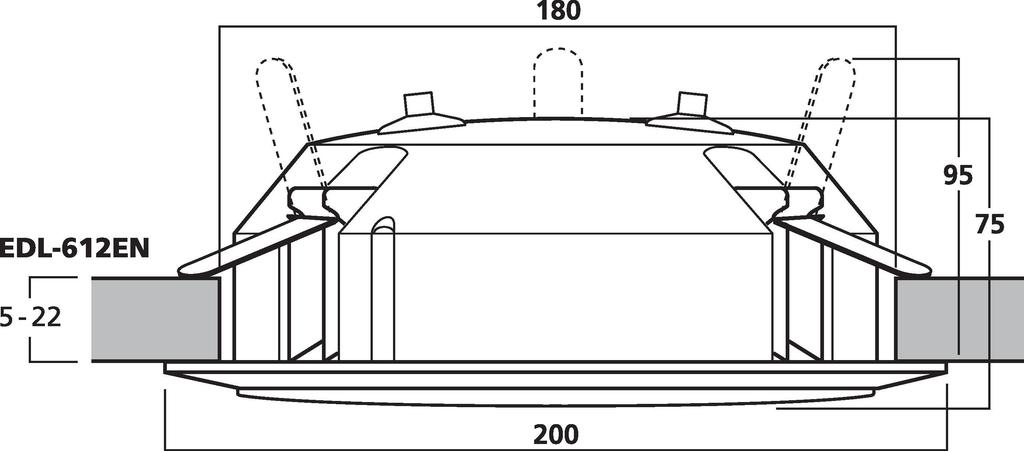

Mounting cutout	Ø 180 mm
Mounting depth	60 mm
Dimensions	Ø 200 mm x 70 mm
Outside diameter	Ø 200 mm
Width	Ø 200 mm
Height	Ø 200 mm
Depth	70 mm
Colour	white
Admiss. ambient temp.	0-40 °C
Weight	950 g
Packing unit	1
Type of speaker	165
Packaging dimensions (W x H x L)	0.25 x 0.1 x 0.24 m
Gross weight	1.187 kg
Net weight	0.954 kg

EAN code	4007754238778
Net weight	0.954 kg

Downloads

Accessories for EDL-612EN

Order no.: 0111340

JYSTY-2208

Signal line, type J-Y(St)Y, 4 x 0.5 mm2, 100 m

Intended use:
signal, 100 V PA, alarm, communication

Cable specification:
J-Y(ST)Y

Length:
100 m

Order no.: 0111340

JYSTY-2208

Signal line, type J-Y(St)Y, 4 x 0.5 mm2, 100 m
