Order no.: 0163430

EDL-62HQ

P2000

P1980

P211

Order no.: 0163430

EDL-62HQ

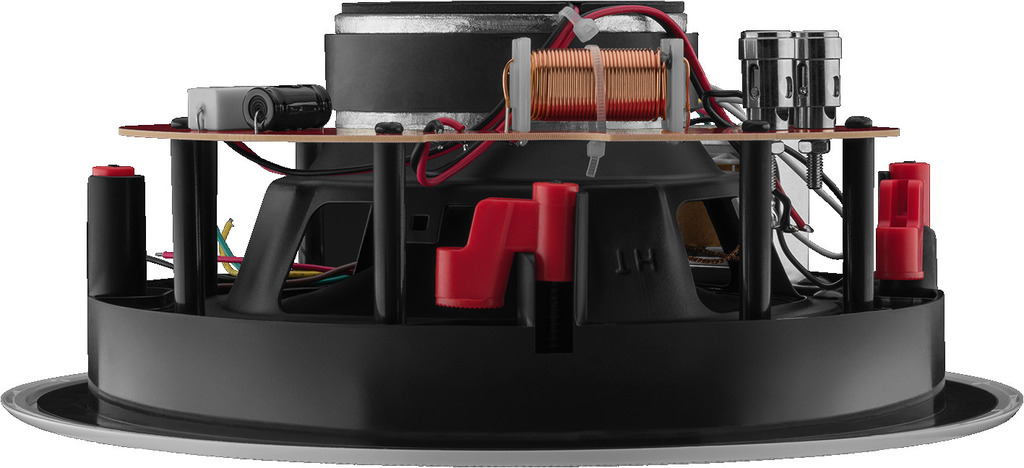

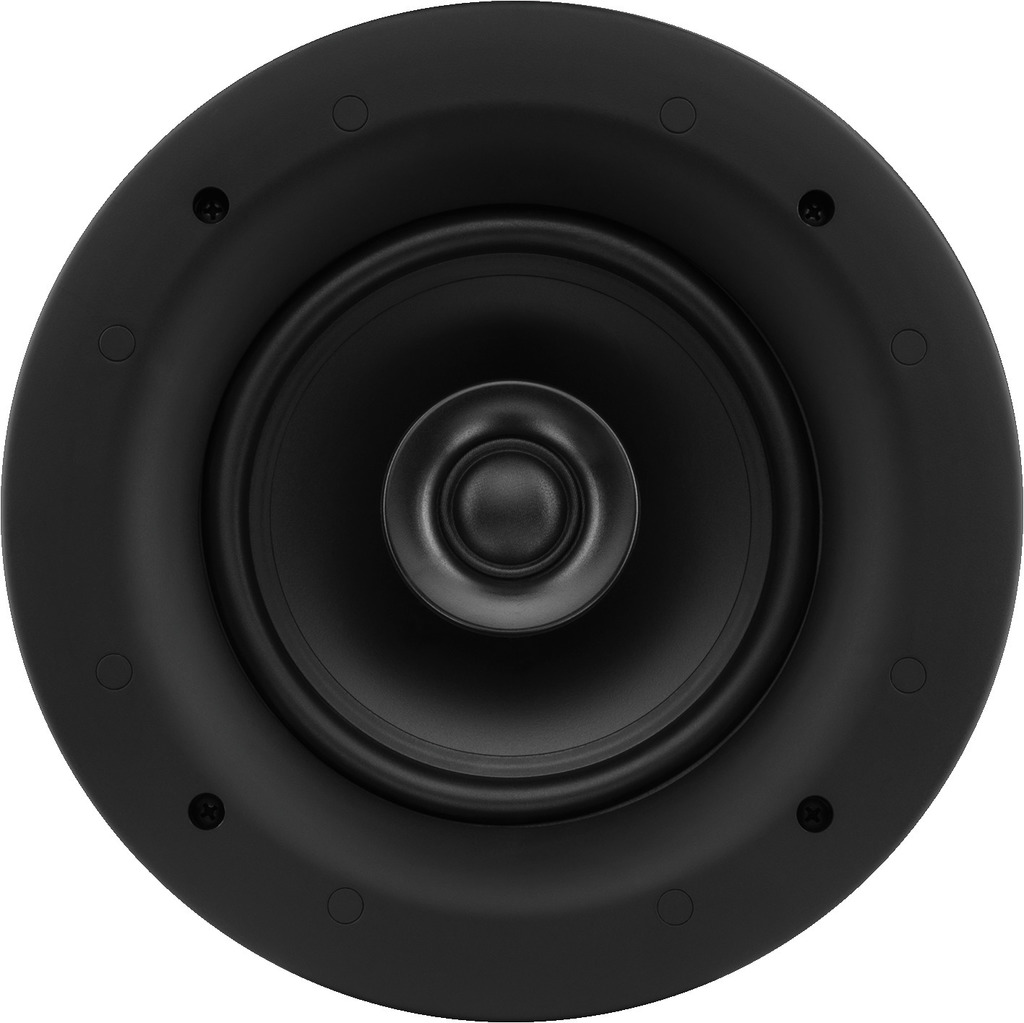

PA hi-fi wall and ceiling speaker, 30 W

100 V transmission technology or 8 Ω operation
2-way version with coaxial dome tweeter
16 cm (6½") bass speaker with waveguide and 25 mm (1") silk dome
Pivoting tweeter via ball joint
Excellent sound characteristics
Stylish flush fit protective metal grille with slim plastic frame
Protective grille magnetically attached to speaker front
For a wall thickness/ceiling thickness from 6 to 35 mm

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

PA hi-fi wall and ceiling speaker, 30 W

100 V transmission technology or 8 Ω operation
2-way version with coaxial dome tweeter
16 cm (6½") bass speaker with waveguide and 25 mm (1") silk dome
Pivoting tweeter via ball joint
Excellent sound characteristics
Stylish flush fit protective metal grille with slim plastic frame
Protective grille magnetically attached to speaker front
For a wall thickness/ceiling thickness from 6 to 35 mm

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z)	8 Ω
Transmission technology	100 V or low-impedance

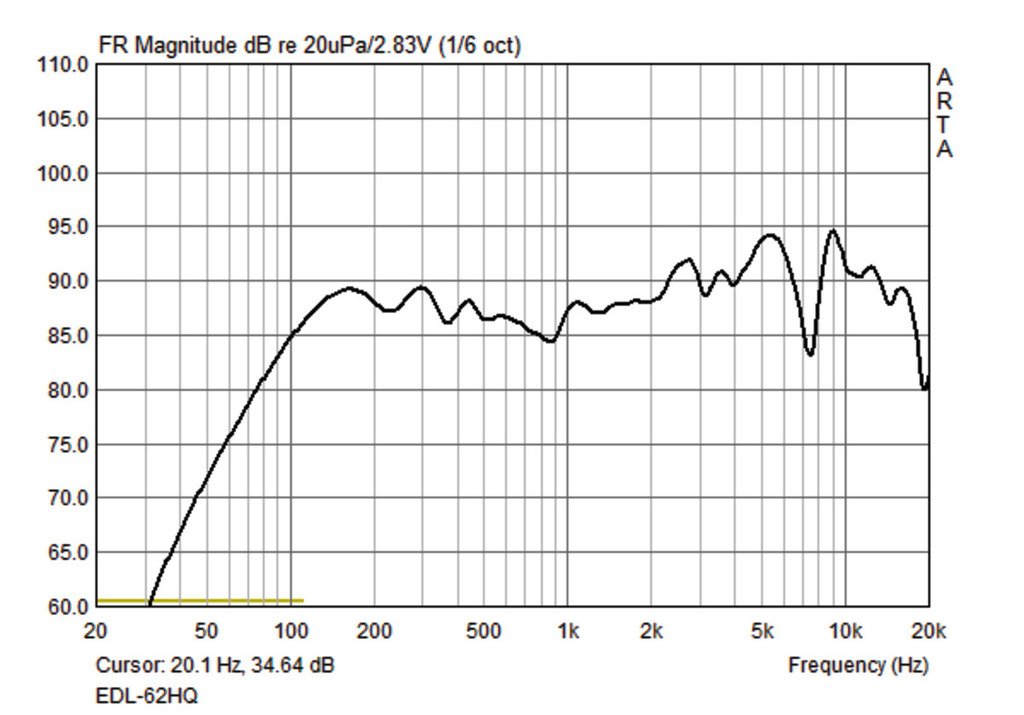

Frequency range	50-20,000 Hz
Resonant frequency (fs)	60 Hz
Power rating (RMS)	35 W (8 Ω) 30/16/8/4 W (100 V)
Peak music power output (MAX)	70 W
SPL	89 dB/W/m

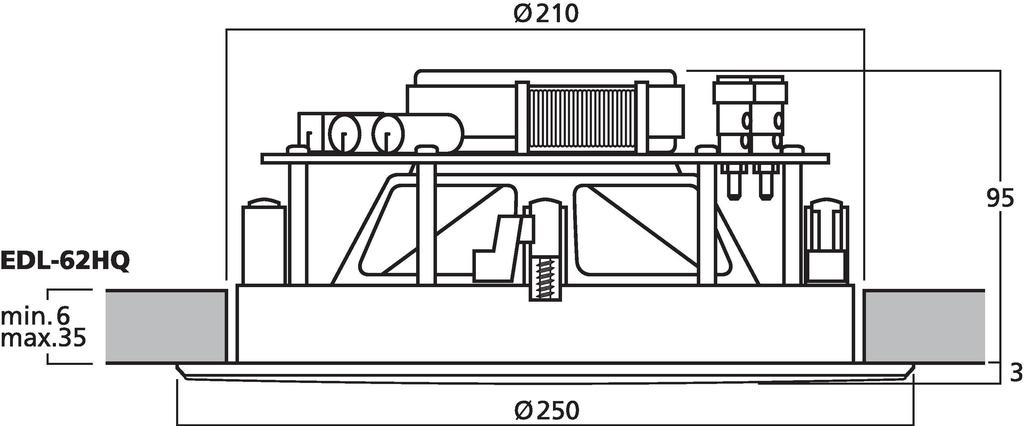

Mounting cutout	Ø 210 mm
Mounting depth	97 mm
Dimensions	Ø 250 mm x 98 mm
Outside diameter	Ø 250 mm
Width	Ø 250 mm
Height	Ø 250 mm
Depth	98 mm
Colour	white/black
Admiss. ambient temp.	0-40 °C
Weight	1.82 kg
Packing unit	1
Type of speaker	165
Packaging dimensions (W x H x L)	0.27 x 0.13 x 0.27 m
Gross weight	2.15 kg
Net weight	1.82 kg

EAN code	4007754254686
Net weight	1.82 kg

Downloads

Accessories for EDL-62HQ

Order no.: 1001315

SG-62HQ/BK

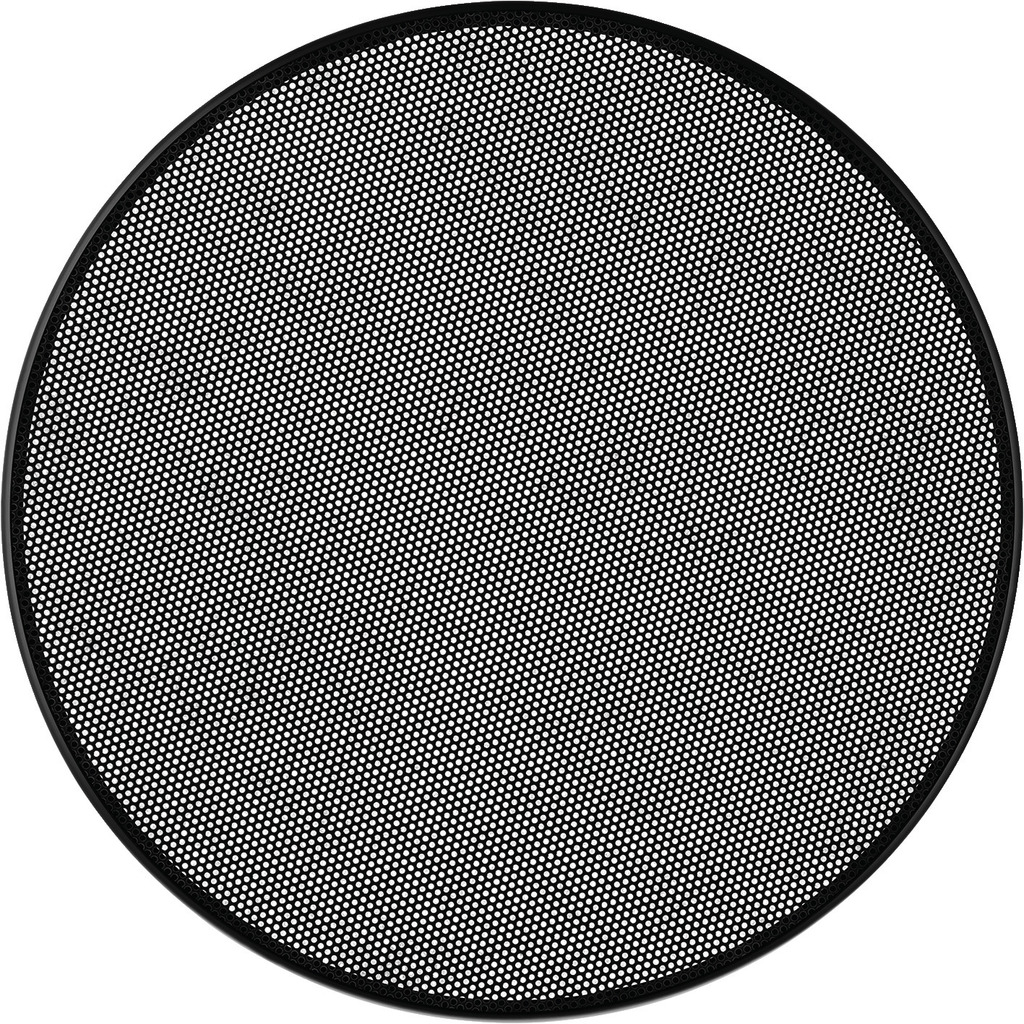

Speaker replacement protective grille for EDL-62HQ, Ø 248 mm

Outside Ø:
Ø 248 mm

Total height:
9 mm

Order no.: 1001315

SG-62HQ/BK

Speaker replacement protective grille for EDL-62HQ, Ø 248 mm
