Order no.: 0162220

EDL-65TW

Order no.: 0162220

EDL-65TW

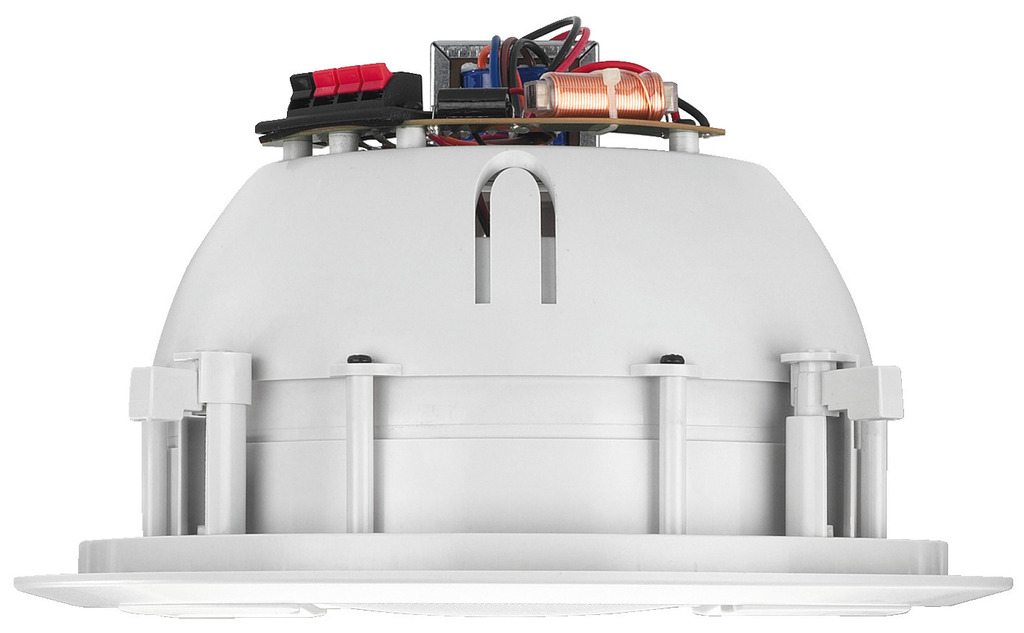

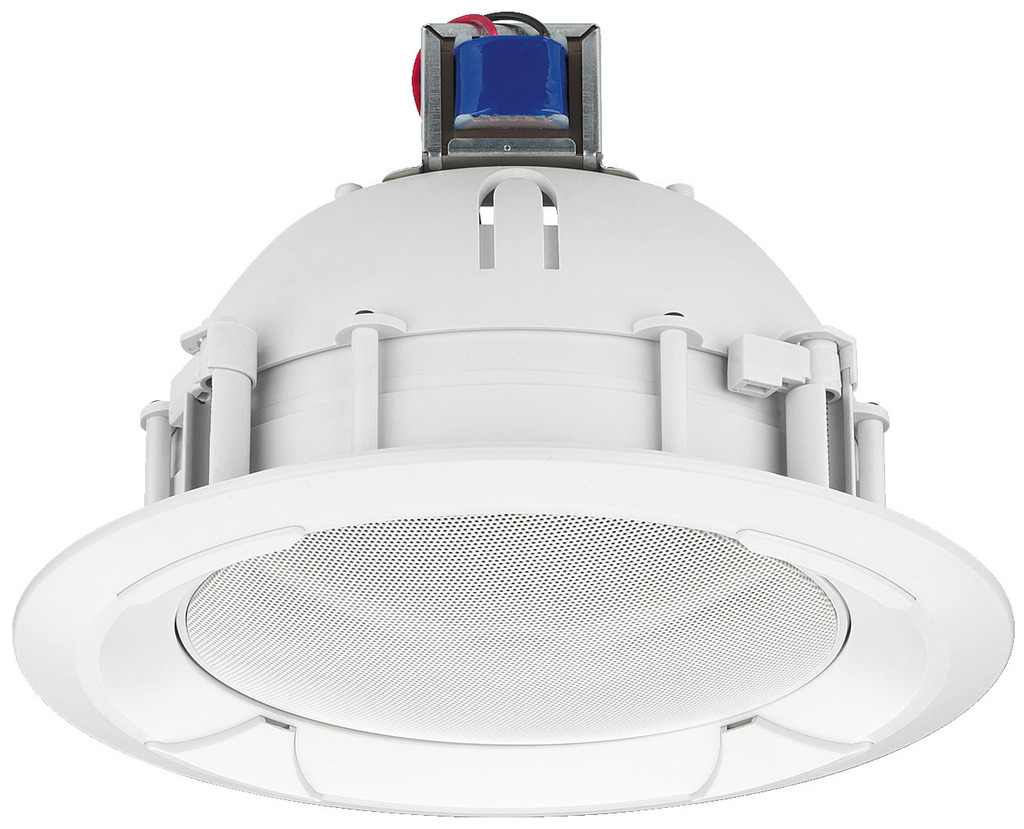

Pivoting PA ceiling speaker
  • 100 V transmission technology
  • High power rating with 30 W max.
  • High-quality 2-way coaxial speaker system with 2-way crossover network
  • Complete speaker part can be moved for optimising the sound radiation pattern indoors
  • Plastic housing of superior design with metal grille
  • Plastic material of ABS and self-extinguishing according to UL 94V-0
  • For a ceiling thickness from 9 to 35 mm
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

About

Pivoting PA ceiling speaker
  • 100 V transmission technology
  • High power rating with 30 W max.
  • High-quality 2-way coaxial speaker system with 2-way crossover network
  • Complete speaker part can be moved for optimising the sound radiation pattern indoors
  • Plastic housing of superior design with metal grille
  • Plastic material of ABS and self-extinguishing according to UL 94V-0
  • For a ceiling thickness from 9 to 35 mm
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Transmission technology 100 V
Frequency range 50-20,000 Hz
Power rating (RMS) 30/15/7.5 W
SPL 91 dB/W/m

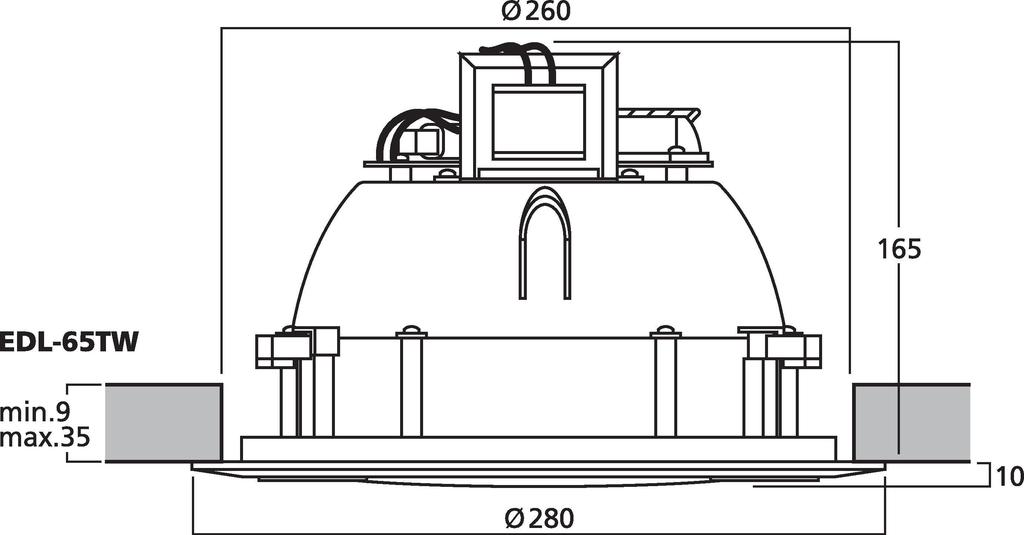

Mounting cutout Ø 260 mm
Mounting depth 165 mm
Dimensions Ø 280 mm x 175 mm
Outside diameter Ø 280 mm
Width Ø 280 mm
Height Ø 280 mm
Depth 175 mm
Colour white
Admiss. ambient temp. 0-40 °C
Weight 2.38 kg
Packing unit 1
Type of speaker 180
Packaging dimensions (W x H x L) 0.33 x 0.22 x 0.33 m
Gross weight 3.12 kg
Net weight 2.38 kg
EAN code 4007754197921
Net weight 2.38 kg

Accessories for EDL-65TW

Intended use:
signal, 100 V PA, alarm, communication
Cable specification:
J-Y(ST)Y
Length:
100 m
Order no.: 0111340
Signal line, type J-Y(St)Y, 4 x 0.5 mm2, 100 m
