Order no.: 0163310

EDL-70/WS

Order no.: 0163310

EDL-70/WS

PA ceiling speaker,

with special 2-step mounting.

100 V transmission technology
Snap-in mounting
For a ceiling thickness from 2 to 45 mm
Full range speaker with a clear voice reproduction
Wide frequency range
Robust metal version (basket and protective grille)

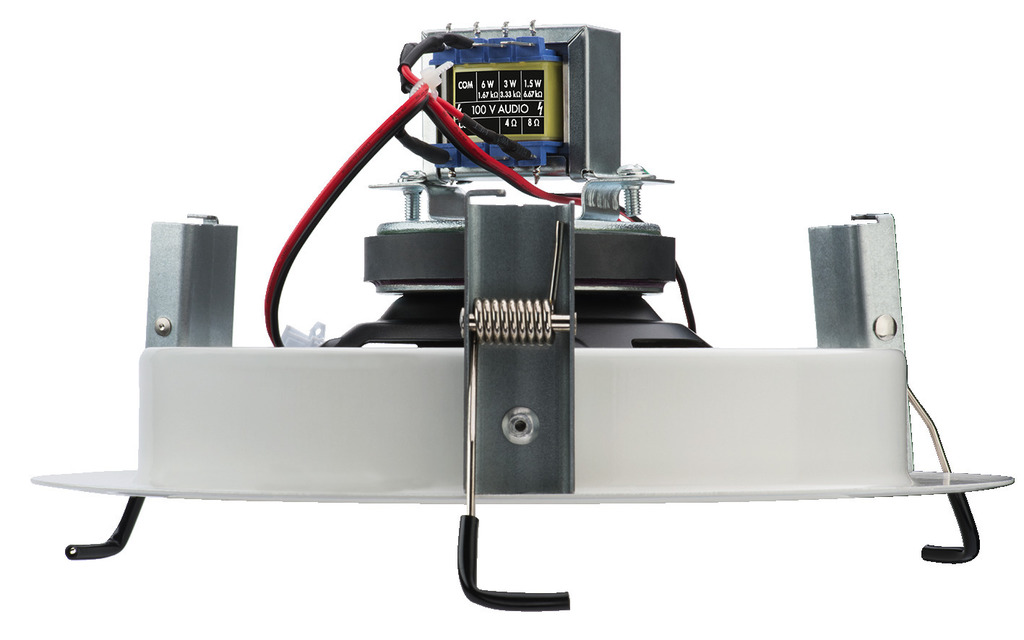

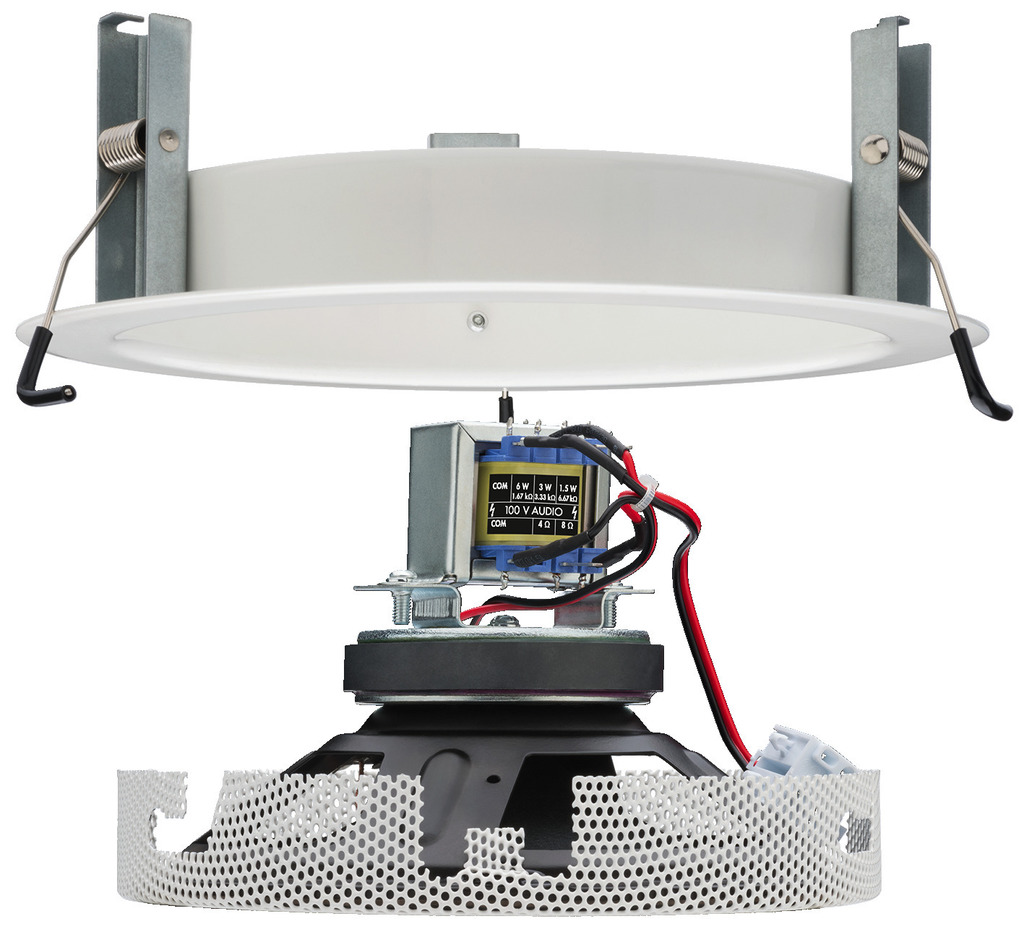

For mounting this PA ceiling speaker, the mounting frame is attached to the ceiling cutout at first via the snap-in system. Then, the speaker is inserted into the frame with a bayonet-type locking. A safety rope provides additional safety.

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

PA ceiling speaker,

with special 2-step mounting.

100 V transmission technology
Snap-in mounting
For a ceiling thickness from 2 to 45 mm
Full range speaker with a clear voice reproduction
Wide frequency range
Robust metal version (basket and protective grille)

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Transmission technology	100 V
Frequency range	90-20,000 Hz
Power rating (RMS)	6/3/1.5 W
SPL	97 dB/W/m

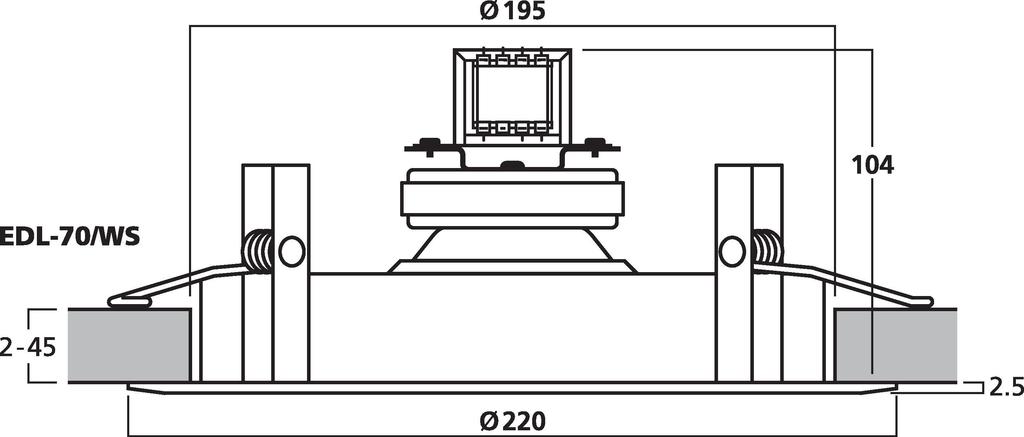

Mounting cutout	Ø 195 mm
Mounting depth	100 mm
Dimensions	Ø 220 mm x 104 mm
Outside diameter	Ø 220 mm
Width	Ø 220 mm
Height	Ø 220 mm
Depth	104 mm
Colour	white, RAL9010
Admiss. ambient temp.	0-40 °C
Weight	1 kg
Packing unit	1
Type of speaker	165
Packaging dimensions (W x H x L)	0.225 x 0.115 x 0.225 m
Gross weight	1.127 kg
Net weight	1.017 kg
