Order no.: 0163440

EDL-82HQ

P2000

P1980

P191

Order no.: 0163440

EDL-82HQ

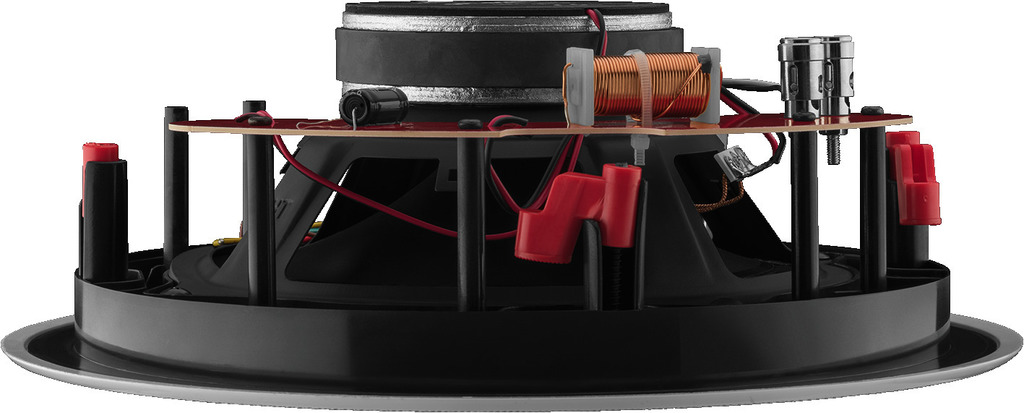

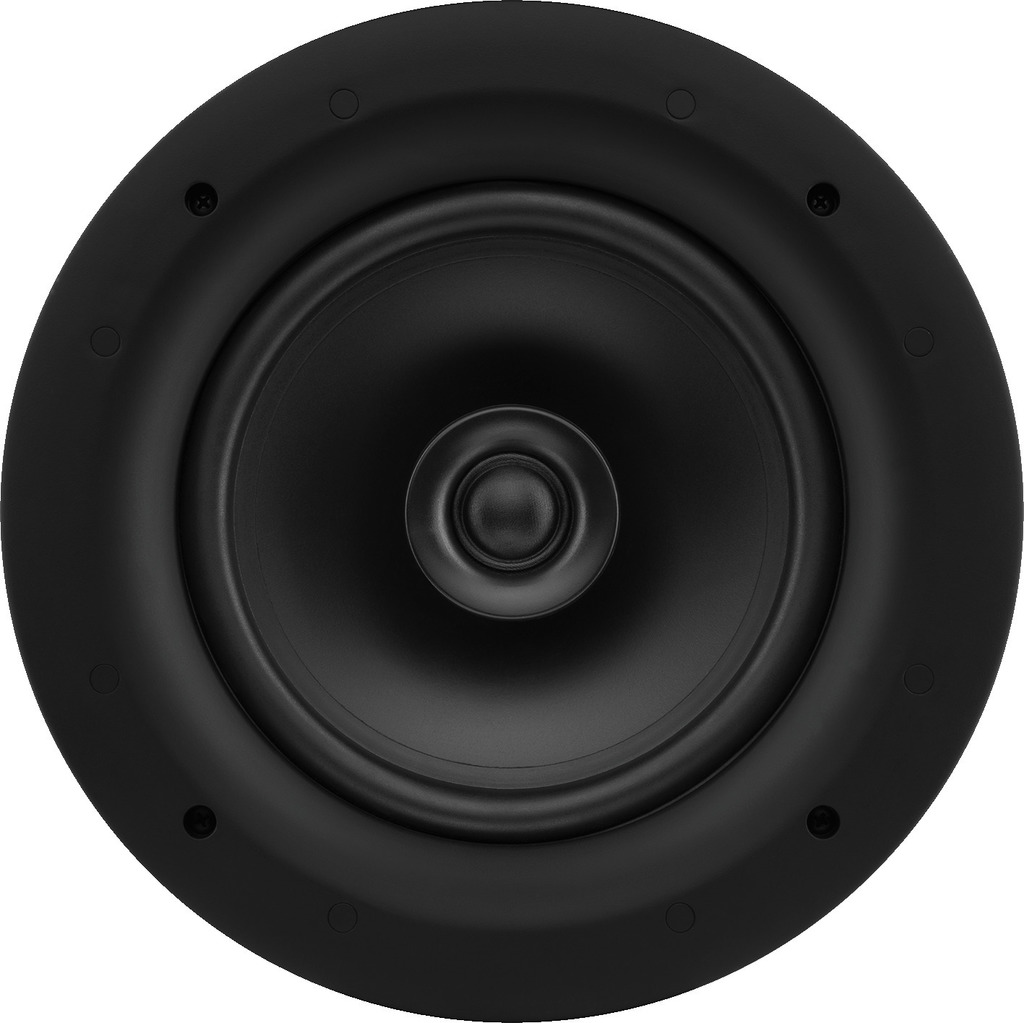

PA hi-fi wall and ceiling speaker, 30 W

100 V transmission technology or 8 Ω operation
2-way version with coaxial dome tweeter
20 cm (8") bass speaker with waveguide and 25 mm (1") silk dome
Pivoting tweeter via ball joint
Excellent sound characteristics
Stylish flush fit protective metal grille with slim plastic frame
Protective grille magnetically attached to speaker front
For a wall thickness/ceiling thickness from 6 to 35 mm

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

PA hi-fi wall and ceiling speaker, 30 W

100 V transmission technology or 8 Ω operation
2-way version with coaxial dome tweeter
20 cm (8") bass speaker with waveguide and 25 mm (1") silk dome
Pivoting tweeter via ball joint
Excellent sound characteristics
Stylish flush fit protective metal grille with slim plastic frame
Protective grille magnetically attached to speaker front
For a wall thickness/ceiling thickness from 6 to 35 mm

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z)	8 Ω
Transmission technology	100 V or low-impedance

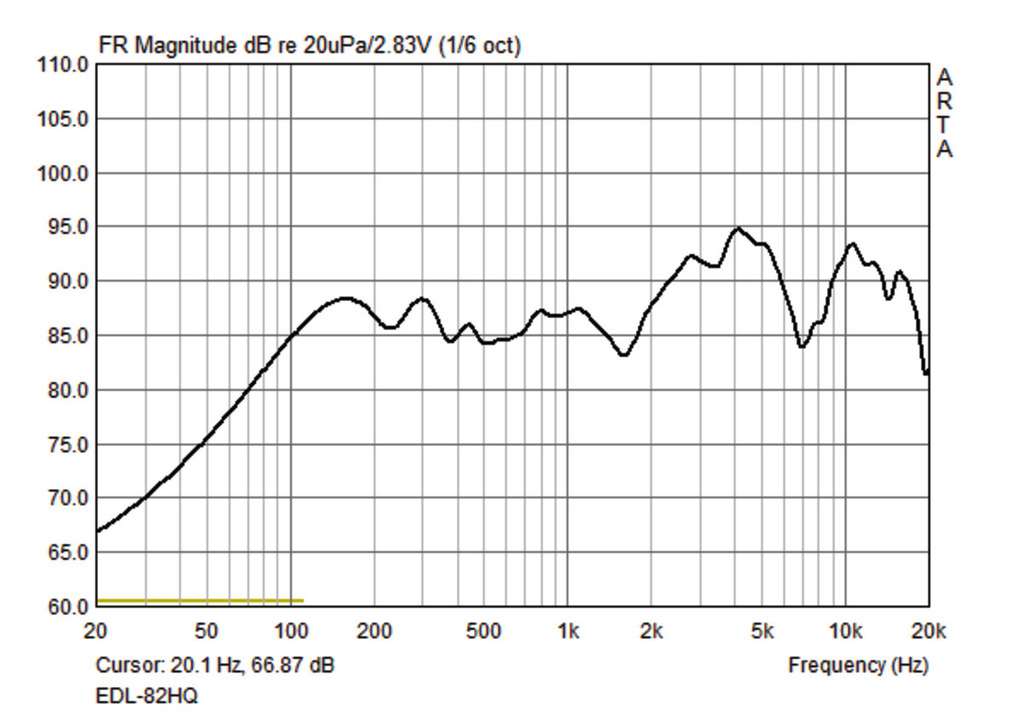

Frequency range	30-20,000 Hz
Resonant frequency (fs)	40 Hz
Power rating (RMS)	50 W (8 Ω) 30/16/8/4 W (100 V)
Peak music power output (MAX)	100 W
SPL	89 dB/W/m

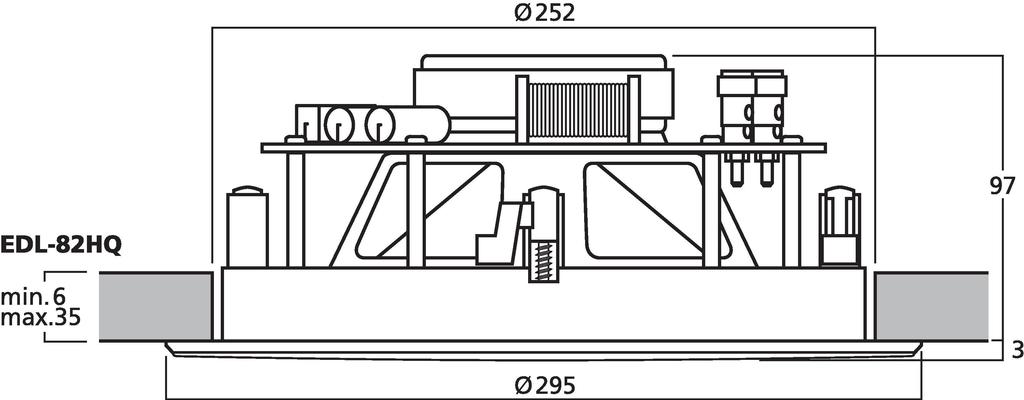

Mounting cutout	Ø 252 mm
Mounting depth	99 mm
Dimensions	Ø 295 mm x 100 mm
Outside diameter	Ø 295 mm
Width	Ø 295 mm
Height	Ø 295 mm
Depth	100 mm
Colour	white/black
Admiss. ambient temp.	0-40 °C
Weight	2 kg
Packing unit	1
Type of speaker	200
Packaging dimensions (W x H x L)	0.315 x 0.135 x 0.315 m
Gross weight	2.47 kg
Net weight	2.07 kg

EAN code	4007754254693
Net weight	2.07 kg

Downloads

Accessories for EDL-82HQ

Order no.: 1001316

SG-82HQ/BK

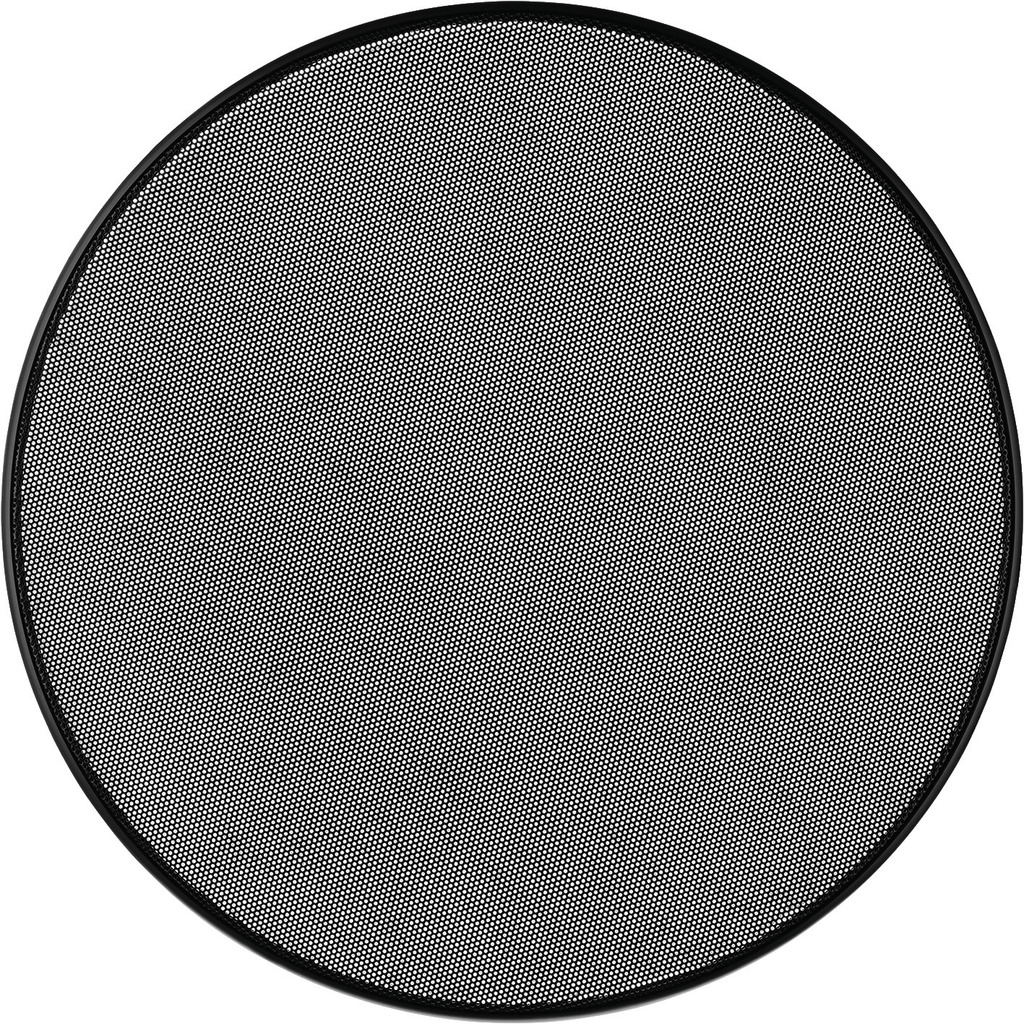

Speaker replacement protective grille for EDL-82HQ, Ø 291 mm

Outside Ø:
Ø 291 mm

Total height:
9 mm

Order no.: 1001316

SG-82HQ/BK

Speaker replacement protective grille for EDL-82HQ, Ø 291 mm
