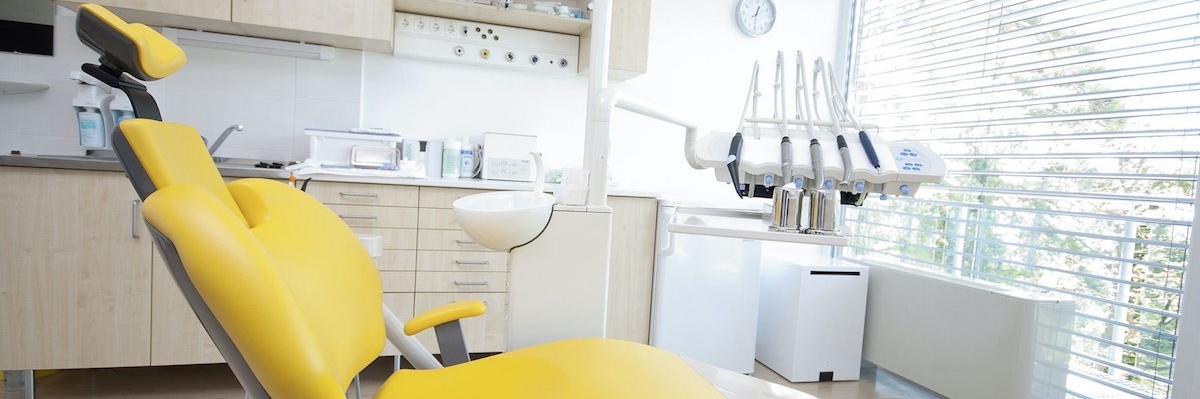

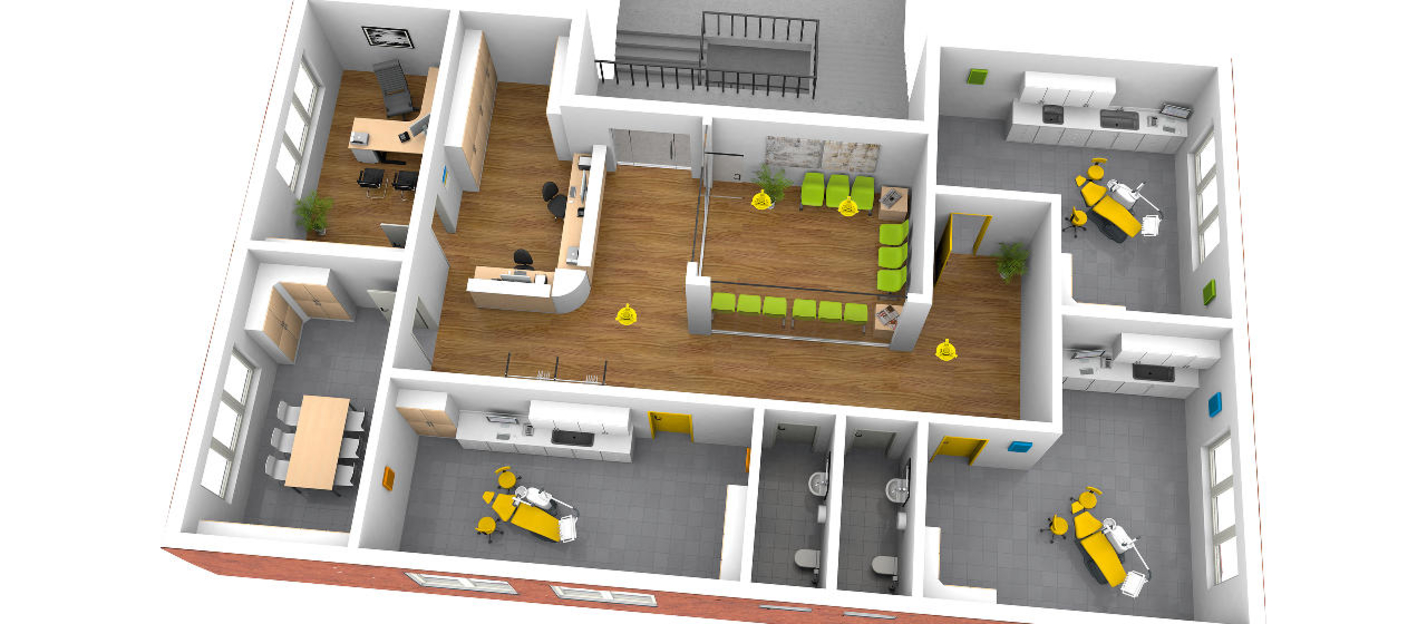

Solution: Dental Practice, 150-280 m2
Customer requirements:
- Excellent sound characteristics for the reproduction of music and speech
- Unobtrusive music reproduction for a pleasant ambience in the treatment rooms
- Volume control per channel for individual adjustment in each room
- Microphone station at the reception desk for calling in patients and for general announcements in the waiting area and treatment rooms
Solution
Unobtrusive wall speakers ESP-134/WS are used to ensure a pleasant sound in the treatment rooms. The 2-way system with neodymium bass-midrange speaker and tweeter provides a great sound for the reproduction of both speech and music.
Flush-mount speakers EDL-116TW which are installed in the hallway and waiting area allow for a continuous PA application in the entire practice. The class D amplifier PA-1450D provides 4 x 50 W. With the mixer PA-6040MPX, it is possible to implement a multi-room application with an individual control of up to 4 zones. Thus, it is possible for practice staff to direct announcements to one specific room or to a group of zones.
The Bluetooth receiver WSA-10BT provides a wireless connection between a Bluetooth signal source and the PA system. Thus, it is possible to replay files from the Bluetooth signal source on the audio system connected to the WSA-10BT.
