Class D multifunctional amplifier series with DSP

powered by PASCAL

The DX amplifier models are a powerful solution for professional audio installations with high demands on flexibility, efficiency and quality. The DX series from MONACOR includes the two compact 4-zone amplifiers PA-4125DX and PA-4125DX/DT in half-19-inch format, the 8-zone multifunctional amplifier PA-8125DX and the PA-4500DX with 4 x 500 W (4 Ω), 4 x 400 W (8 Ω) or 2 x 1,000 W (100 V). The PA-4125DX/DT is also equipped with a Dante^® interface for seamless integration into digital audio networks.

5 Years Warranty

Our DX amplifier series is known for its performance, reliability, and versatility in professional applications. To ensure we continue to meet these standards over the long term, we are now offering a 5-year warranty on this product line—effective from the date of purchase. Planning certainty is crucial, especially for demanding installations and long-term projects. With this extended warranty, you can reduce risks and establish a solid foundation for your investments.

New

Peak output power:
500 W

Power rating:
500 W

Power rating at 4 Ω:
4 x 125 W

Order no.: 1001059

PA-4125DX

4-zone multifunctional amplifier, 4 x 125 W, 2 x 250 W

New

Peak output power:
500 W

Power rating:
500 W

Power rating at 4 Ω:
4 x 125 W

Order no.: 1001312

PA-4125DX/DT

Dante®-enabled 4-zone multifunctional amplifier, 4 x 125 W, 2 x 2...

New

Peak output power:
2,000 W

Power rating:
2,000 W

Power rating at 4 Ω:
4 x 500 W

Order no.: 1001397

PA-4500DX

4-zone multifunctional mixing amplifier, 4 x 500 W, 2 x 1,000 W

New

Peak output power:
1,000 W

Power rating:
1,000 W

Power rating at 4 Ω:
8 x 125 W

Order no.: 1001398

PA-8125DX

8-zone multifunctional mixing amplifier, 8 x 125 W, 4 x 250 W

Description:
wall module

Type:
remote control of a zone

Colour:
black, RAL9005

Order no.: 1001215

WP-1/BK

Wall module for PA-4125DX and PA-4125DX/DT

Description:
wall module

Type:
remote control of a zone

Colour:
white, RAL9003

Order no.: 1001216

WP-1/WH

Wall module for PA-4125DX and PA-4125DX/DT

PA-8125DX

Order no.: 1001398

PA-8125DX

8-zone multifunctional mixing amplifier, 8 x 125 W, 4 x 250 W

The PA-8125DX multifunctional amplifier - powered by PASCAL - is the logical addition to MONACOR's successful DX amplifier series. With an output of either 8 x 125 W into 4 or 8 ohms or 4 x 250 W for 100-volt components, it offers maximum flexibility and reliability for modern audio installations.

Class D technology ensures high energy efficiency - ideal for multi-zone projects where continuous operation and low maintenance are required. A temperature-controlled fan unit ensures quiet operation and, together with extensive safety functions, provides reliable protection against overload.

8 x 125 W (4/8 Ω) or 4 x 250 W (100 V)
100 V or 4/8 Ω operation
8 analogue inputs mic/line via plug-in screw terminal (bal.) or RCA jacks
1 digital input/output via S/PDIF RCA jacks
8 outputs (4/8 Ω) or 2 zone outputs (100 V) via plug-in screw terminal
GPIO interface for remote volume control and standby
Network connection via LAN or WLAN
Convenient operation and configuration via user interface HTML5
High-pass/low-pass filter with various filters
Parametric equalizer
Output with separate FIR filters

View product

PA-4500DX

Order no.: 1001397

PA-4500DX

4-zone multifunctional mixing amplifier, 4 x 500 W, 2 x 1,000 W

PA-4500DX is a mixing amplifier for versatile sound reproduction applications It offers four outputs for low-impedance speakers. Alternatively, it is possible to combine two outputs to one output (bridge mode): for a low-impedance speaker or for 70 V/100 V speakers connected in parallel. The integrated signal processor is controlled via an HTML5 user interface that can be accessed by means of a standard web browser Network connection is possible via Wi-Fi or cable.

4 x 500 W (4 Ω), 4 x 400 W (8 Ω) or 2 x 1,000 W (100 V)
100 V or 4/8 Ω operation
4 analogue inputs mic/line via plug-in screw terminal (bal.) or RCA jacks
1 digital input/output via S/PDIF RCA jacks
4 outputs (4/8 Ω) or 2 zone outputs (100 V) via plug-in screw terminal
GPIO interface for remote volume control and standby
Network connection via LAN or WLAN
Convenient operation and configuration via user interface HTML5

View product

PA-4125DX/DT

Order no.: 1001312

PA-4125DX/DT

Dante®-enabled 4-zone multifunctional amplifier, 4 x 125 W, 2 x 250 W

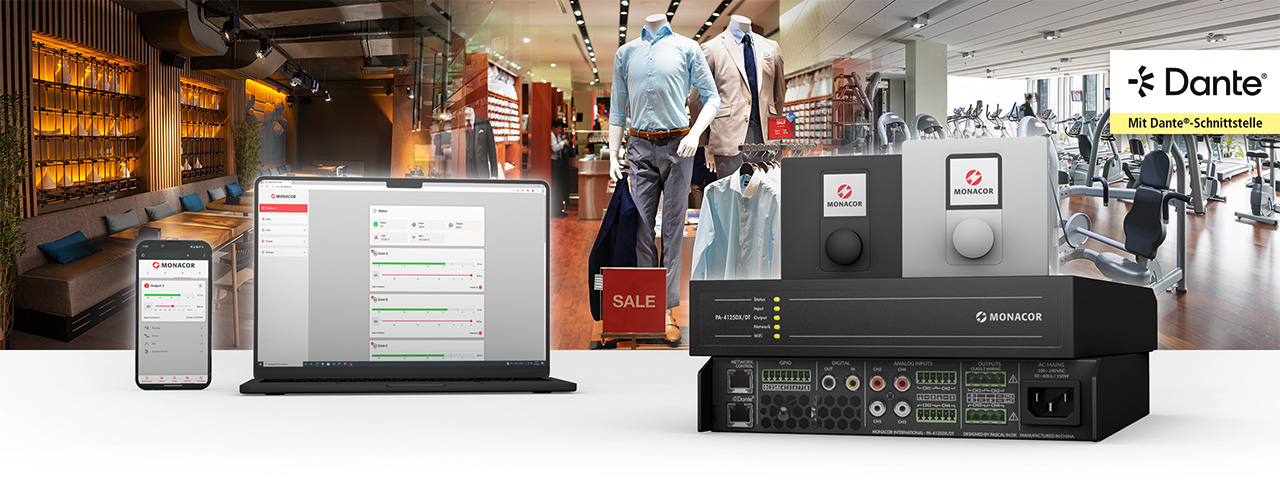

For your multi-room projects, you can now rely on the versatile PA-4125DX/DT Dante^®-enabled amplifier (powered by PASCAL) - including Class D technology with DSP and a graphical HTML5 user interface for convenient operation via web browser. The amplifier provides sufficient power with an output power of either 4 x 125 W (4 or 8 ohms) or 2 x 250 W (100 volts).

With Dante^® interface

PA-4125DX/DT offers four channels for transmission and four channels for reception that can be assigned as desired in the Dante^® network. The configuration program “Dante Controller” is used to assign the channels for transmission and reception in the Dante^® network. The user interface of the amplifier is used to assign the channels for reception to the speaker zones and the internal signals of the amplifier to the channels for transmission.

View product

PA-4125DX/DT is a mixing amplifier for versatile sound reproduction applications. It offers four outputs for low-impedance speakers. Alternatively, two of these outputs can be combined to one output for 70 V/100 V speakers (bridge mode). The integrated signal processor is controlled via an HTML5 user interface that can be accessed by means of a standard web browser Network connection is possible via Wi-Fi or cable.

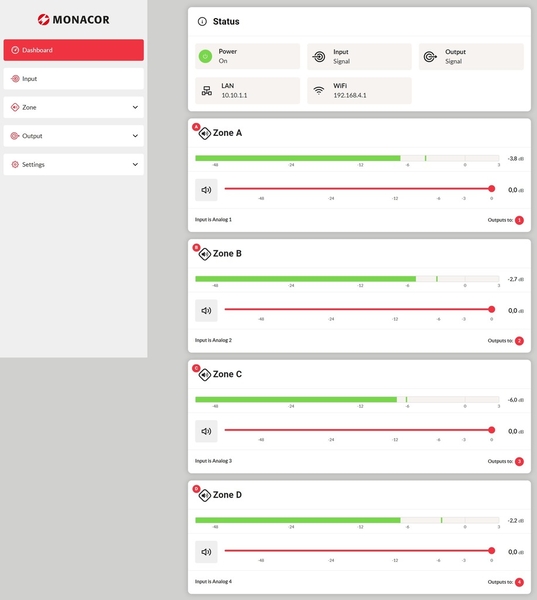

Graphical HTML5 user interface

The amplifier comes with a graphical HTML5 user interface for configuring and controlling the signal processor, which can be accessed using a standard web browser on a computer or mobile device: For each output, corrections for adaptation to the sound reproduction area (e.g. equalizer, signal delay) can be made separately. In addition, speaker-specific settings (e.g. level limiting, correction filter, signal delay) can be made for each output. These settings can be saved as “Speaker Presets” and managed in “Speaker Libraries” for later use.

WP-1/WH and WP-1/BK

Connection of up to 8 x wall module WP-1/WH or WP-1/BK to each amplifier PA-4125DX and PA-4125DX/DT
Each wall module can be assigned to any sound zone of PA-4125DX and PA-4125DX/DT via WebControl app
Source can easily be changed or volume level be kept via preset minimum and maximum volume levels
PoE for easy network pairing, real-time synchronisation of the devices with the system and power supply of the controller
PIN code protection for easy and extended access, including switching off the system when leaving the location
Intuitive menu for simple installation, system setup and an easy user operation
Adjustable screen and backlight for controlling brightness and colour
High-performance polymer of Danish design with smooth matt surface and covered screws
Mounting in standard flush-mounted socket

Description:
wall module

Type:
remote control of a zone

Colour:
white, RAL9003

Order no.: 1001216

WP-1/WH

Wall module for PA-4125DX and PA-4125DX/DT

Description:
wall module

Type:
remote control of a zone

Colour:
black, RAL9005

Order no.: 1001215

WP-1/BK

Wall module for PA-4125DX and PA-4125DX/DT

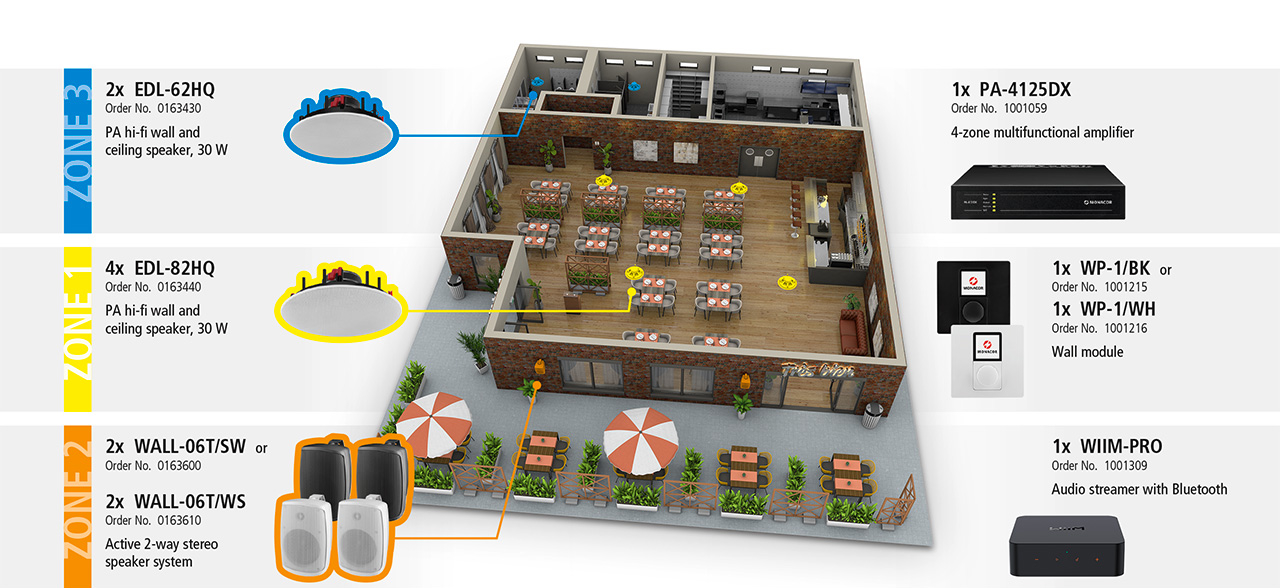

Atmospheric background sound in restaurants

Application example PA-4125DX/DT

Customer requirements

Flexible multi-zone audio system with individual volume control in the guest room, outdoor area and sanitary facilities
Convenient operation via a mobile device
Acoustically balanced sound for discreet background music in the different sound zones
Unobtrusive integration of the speakers in the guest area
Weatherproof speakers with very good sound characteristics
Smart, app-controlled audio streaming via Bluetooth

Solution

The EDL-82HQ in-ceiling loudspeakers blend unobtrusively into the surroundings in the guest area. The 2-way 20 cm (8") coaxial speakers ensure very good sound quality with homogeneous radiation characteristics. The other areas are also filled with pleasant background music: Weatherproof, IP65-certified WALL-06T/WS or WALL-06T/SW loudspeakers are used outdoors, while EDL-62HQ ceiling-mounted loudspeakers are installed in the sanitary facilities.

The PA-4125DX/DT multifunctional amplifier is used for signal transmission to all three zones and allows a flexible signal routing of connected audio sources to one or more zones. It is conveniently connected to any end device (PC, MAC, IOS, Android, etc.) via LAN or WLAN. The graphical user interface simplifies control and function, provides numerous configuration options and offers comprehensive access to the system setup and audio configuration menu. The WP-1/BK wall module is also installed on the counter for quick and easy operation. The WIIM-PRO audio streamer makes it easy to stream music in the WIIM-Home app within 2 minutes and transmit it wirelessly via the integrated Bluetooth receiver.
