Order no.: 0163210

ESP-157/WS

P2000

Order no.: 0163210

ESP-157/WS

PA wall speaker

100 V transmission technology via audio transformer with 2 power taps
Good sound characteristics due to 2-way system
Plastic cabinet of a special design with protective metal grille
Closed rear panel, srewed
Horizontal and vertical mounting possible

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

PA wall speaker

100 V transmission technology via audio transformer with 2 power taps
Good sound characteristics due to 2-way system
Plastic cabinet of a special design with protective metal grille
Closed rear panel, srewed
Horizontal and vertical mounting possible

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Active/passive	passive
Transmission technology	100 V
Total power rating	15 W
Power rating (RMS)	15/7.5 W

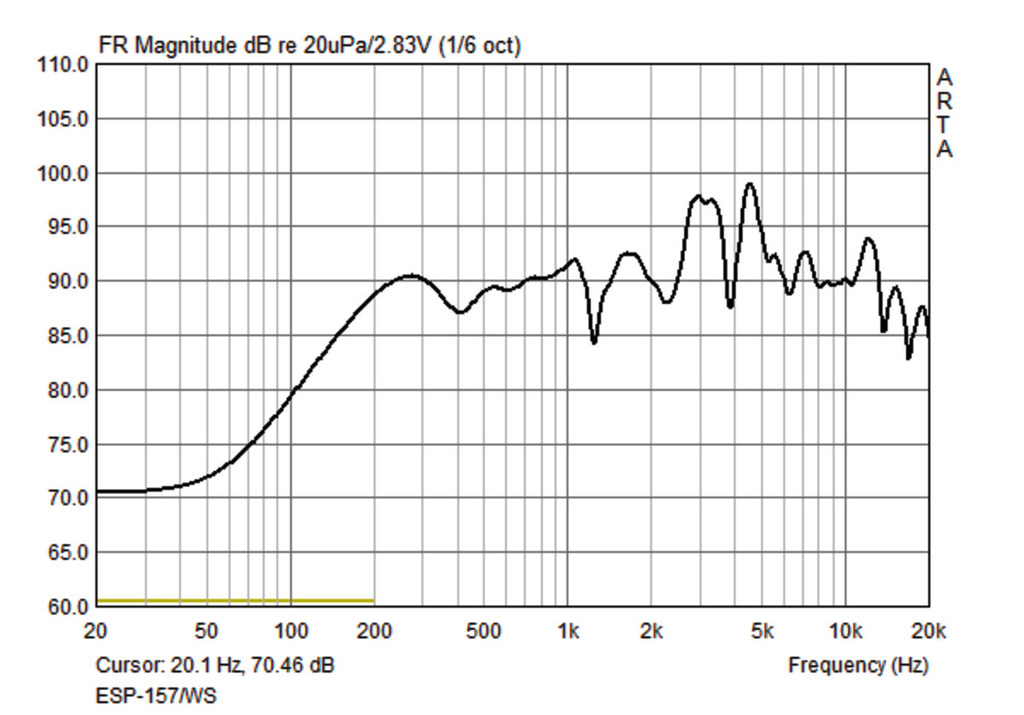

Frequency range	100-20,000 Hz
Number of speakers	2
Speaker size	13 cm (5")
SPL	91 dB/W/m

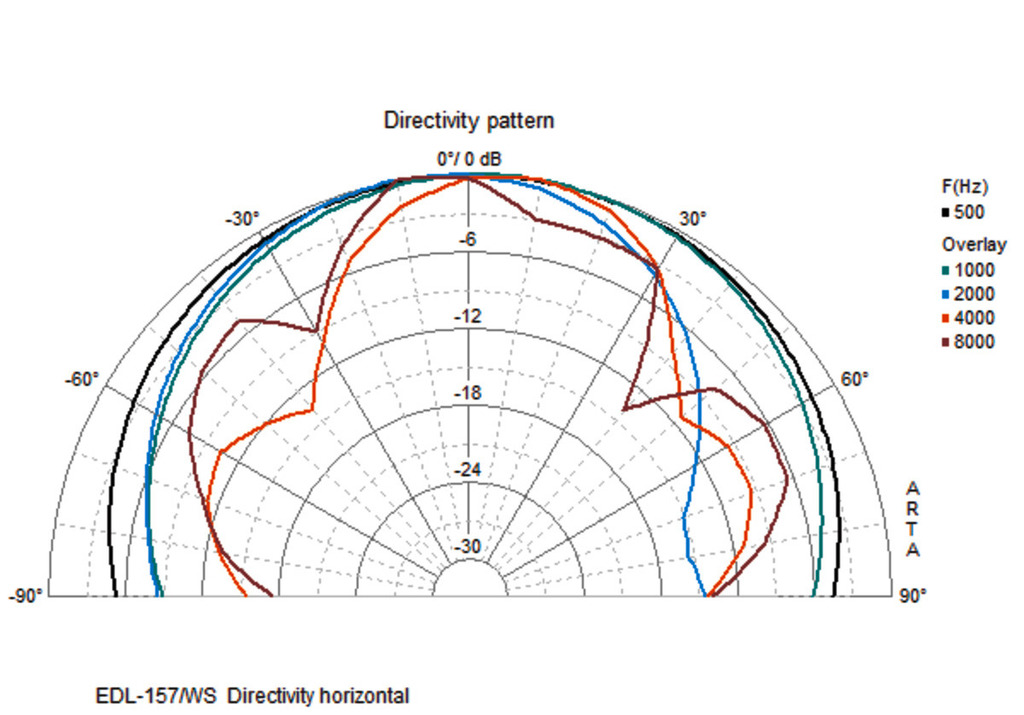

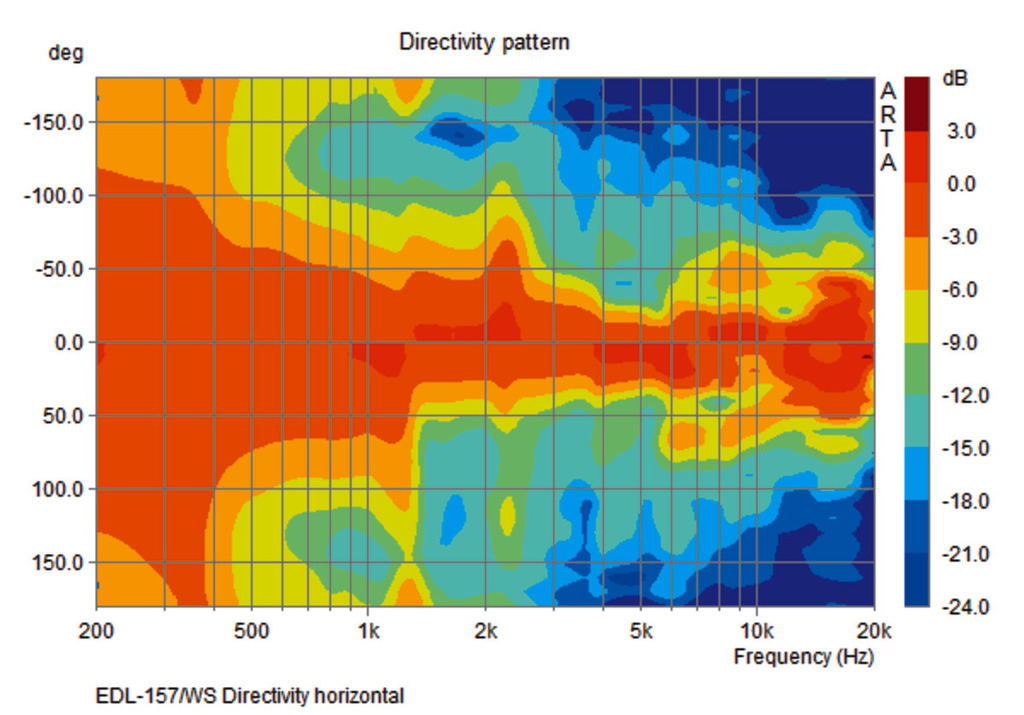

Radiation angle/beam angle	H: 120°/V: 100°
Radiation angle, horizontal	120°
Radiation angle, vertical	100°
Housing material	plastic
Colour	white
Mounting device	mounting screws
Admiss. ambient temp.	0-40 °C
Dimensions	240 x 340 x 105 mm
Width	240 mm
Height	340 mm
Depth	105 mm
Weight	1.7 kg
Inputs	screw terminals
Other features	2-way system
Packaging dimensions (W x H x L)	0.245 x 0.11 x 0.345 m
Gross weight	0.816 kg
Net weight	1.674 kg

EAN code	4007754239751
Net weight	1.674 kg
