Order no.: 0161670

ESP-22/WS

P2000

Order no.: 0161670

ESP-22/WS

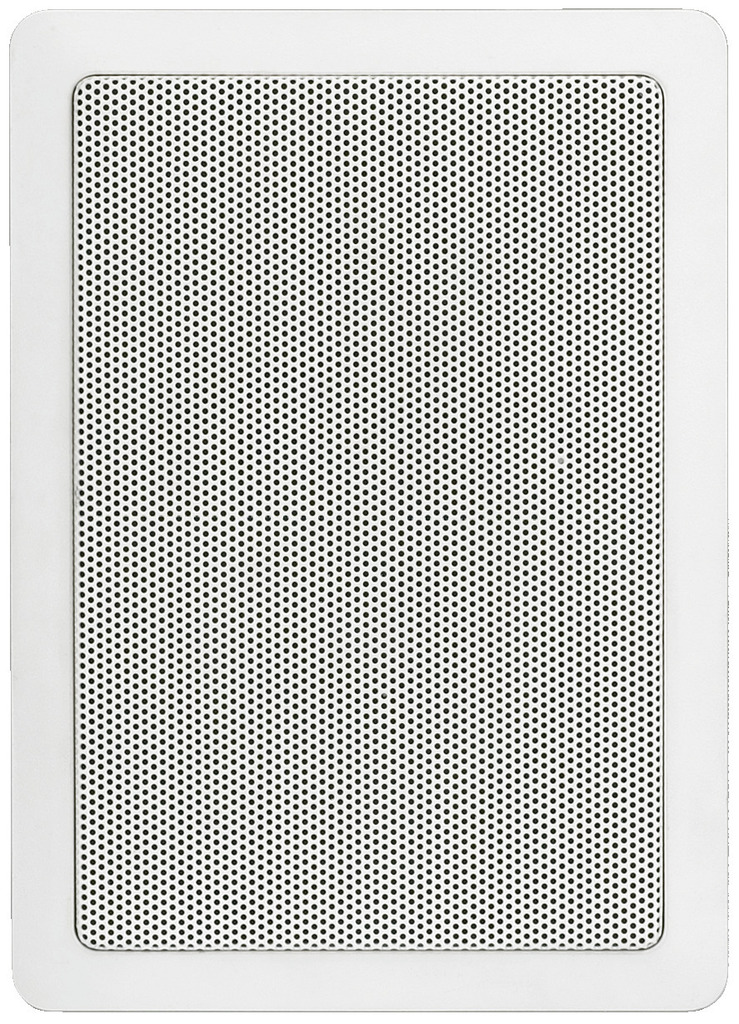

PA hi-fi wall and ceiling speaker

100 V transmission technology

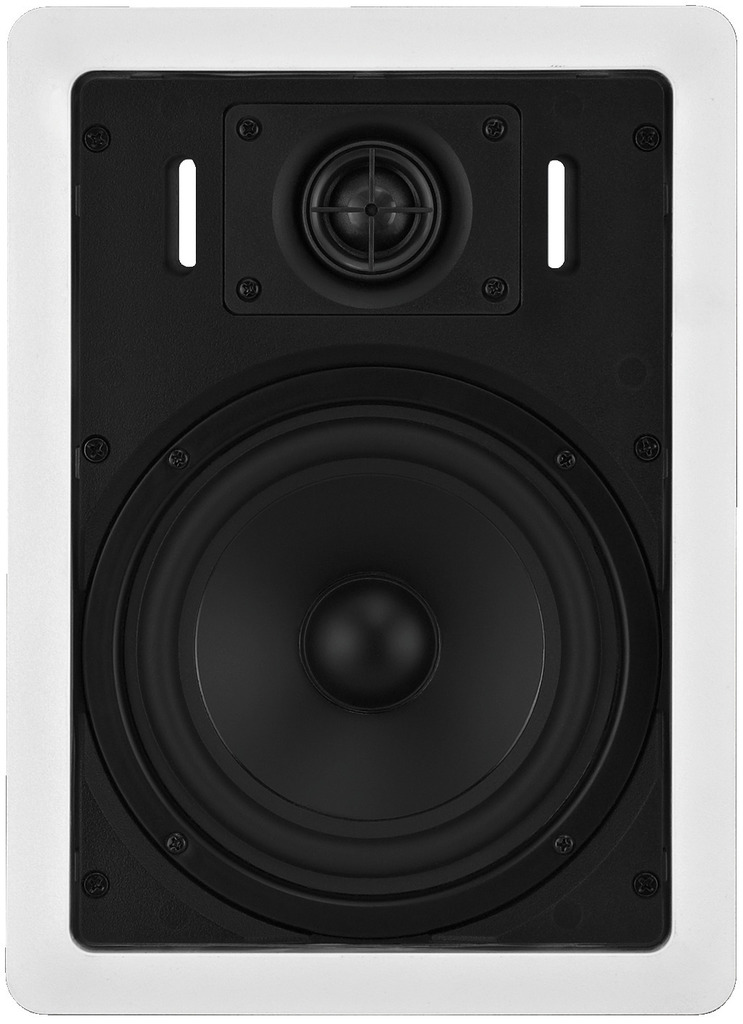

2-way version with pivoting dome tweeter
Plastic housing with protective metal grille
ABS plastic material, self-extinguishing according to UL 94V-0
Excellent sound characteristics
For a wall thickness/ceiling thickness from 8 to 35 mm

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

PA hi-fi wall and ceiling speaker

100 V transmission technology
2-way version with pivoting dome tweeter
Plastic housing with protective metal grille
ABS plastic material, self-extinguishing according to UL 94V-0
Excellent sound characteristics
For a wall thickness/ceiling thickness from 8 to 35 mm

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Transmission technology	100 V
Frequency range	50-20,000 Hz
Power rating (RMS)	20/15/10/5/2.5 W
SPL	88 dB/W/m

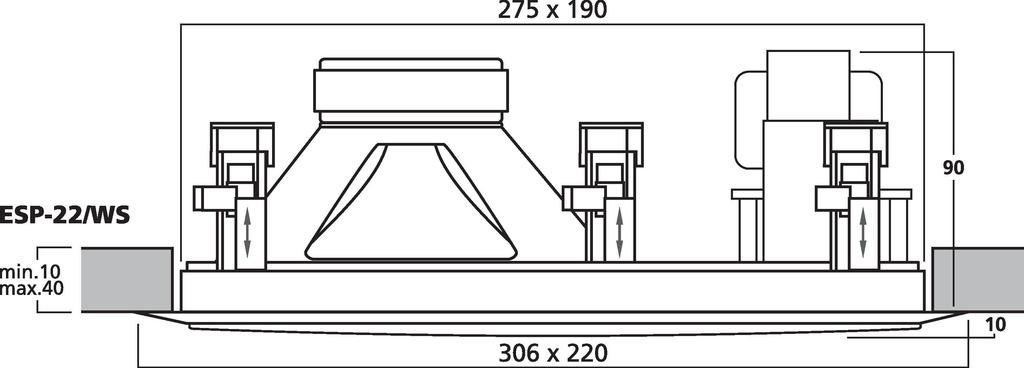

Mounting cutout	275 x 190 mm
Mounting depth	90 mm
Dimensions	306 x 220 x 100 mm
Width	306 mm
Height	220 mm
Depth	100 mm
Colour	white
Admiss. ambient temp.	0-40 °C
Weight	2.6 kg
Packing unit	1
Type of speaker	165
Packaging dimensions (W x H x L)	0.27 x 0.13 x 0.35 m
Gross weight	2.955 kg
Net weight	2.585 kg

EAN code	4007754176131
Net weight	2.585 kg

Downloads

Accessories for ESP-22/WS

Order no.: 0111340

JYSTY-2208

Signal line, type J-Y(St)Y, 4 x 0.5 mm2, 100 m

Intended use:
signal, 100 V PA, alarm, communication

Cable specification:
J-Y(ST)Y

Length:
100 m

Order no.: 0111340

JYSTY-2208

Signal line, type J-Y(St)Y, 4 x 0.5 mm2, 100 m
