Order no.: 0163130

ETS-432TW/WS

P2000

P1330

P1240

P1544

Order no.: 0163130

ETS-432TW/WS

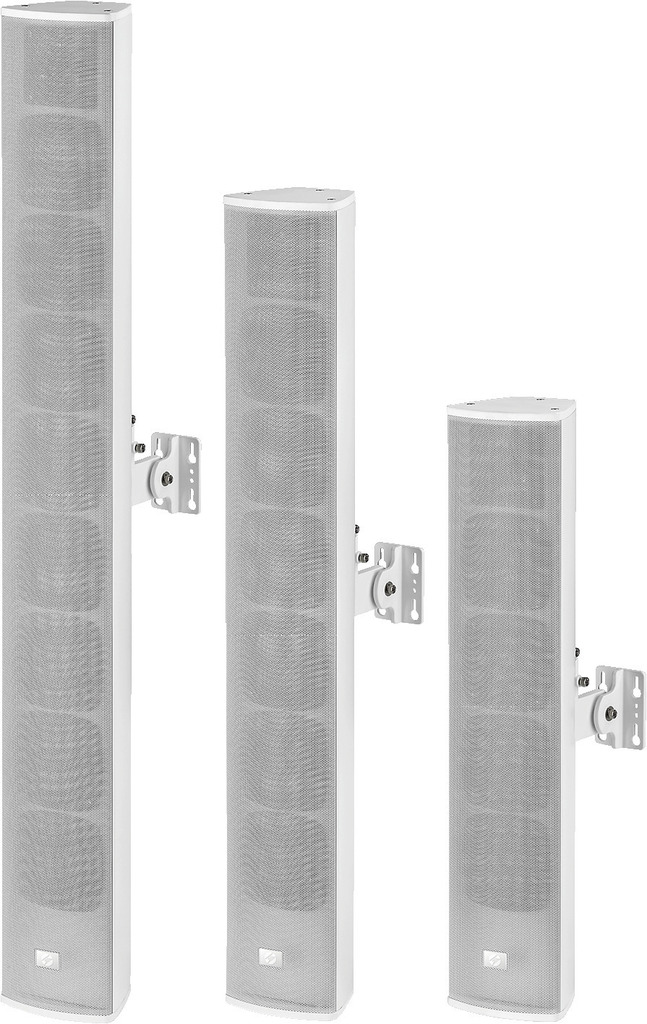

Weatherproof PA column speakers,

with a top-quality sound.

Weatherproof and hose-proof, extruded aluminium cabinet
100 V transmission technology
2-way version (with additional integrated tweeter for a clearly improved sound)
Integrated crossover network
Aluminium front grille
Supplied with a robust tiltable and movable aluminium wall bracket
Connection via cable with 4 power taps

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Weatherproof PA column speakers,

with a top-quality sound.

Weatherproof and hose-proof, extruded aluminium cabinet
100 V transmission technology
2-way version (with additional integrated tweeter for a clearly improved sound)
Integrated crossover network
Aluminium front grille
Supplied with a robust tiltable and movable aluminium wall bracket
Connection via cable with 4 power taps

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Active/passive	passive
Transmission technology	100 V
Total power rating	30 W
Power rating (RMS)	30/15/7.5/3.75 W
Frequency range	120-20,000 Hz
Number of speakers	6+1
Speaker size	10 cm (4")
SPL	93 dB/W/m
Radiation angle/beam angle	H: 140°/V: 40°
Radiation angle, horizontal	140°
Radiation angle, vertical	40°
Housing material	aluminium
Colour	white
Mounting device	wall bracket
Protection class	IP66
Admiss. ambient temp.	-20 °C to +50 °C
Dimensions	124 x 813 x 108 mm
Width	124 mm
Height	813 mm
Depth	108 mm
Weight	5.5 kg
Inputs	cable connection
Packaging dimensions (W x H x L)	0.165 x 0.185 x 0.92 m
Gross weight	6.31 kg
Net weight	5.49 kg

EAN code	4007754232653
Net weight	5.49 kg

Downloads

Accessories for ETS-432TW/WS

Order no.: 0111340

JYSTY-2208

Signal line, type J-Y(St)Y, 4 x 0.5 mm2, 100 m

Intended use:
signal, 100 V PA, alarm, communication

Cable specification:
J-Y(ST)Y

Length:
100 m

Order no.: 0111340

JYSTY-2208

Signal line, type J-Y(St)Y, 4 x 0.5 mm2, 100 m
