Order no.: 0163390

EX-1W

Order no.: 0163390

EX-1W

Audio exciter/resonator, 5 W, 8 Ω

Exciters are suitable for music and voice reproductions via surfaces capable of vibrating. They are simply glued onto doors, cupboard doors, shelves, desktops, lightweight walls, ceiling panels or many other surfaces which are capable of vibrating. Vibration of these surfaces create an impressive sound in the entire surrounding area.

Depending on the mounting surface, very wide bandwidth reproduction with amazing volumes
Excellent sound quality
Dustproof and hose-proof according to IP66
Suitable for unobtrusive PA applications, e.g. at doors, cupboards, shelves, glass panels, desktops, shower screens
Supplied with 3M adhesive pad

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Audio exciter/resonator, 5 W, 8 Ω

Depending on the mounting surface, very wide bandwidth reproduction with amazing volumes
Excellent sound quality
Dustproof and hose-proof according to IP66
Suitable for unobtrusive PA applications, e.g. at doors, cupboards, shelves, glass panels, desktops, shower screens
Supplied with 3M adhesive pad

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z)	8 Ω
Transmission technology	cable
Frequency range	dep. on the installation, goes beyond 20 kHz
Resonant frequency (fs)	1,200 Hz
Power rating (RMS)	5 W
Peak music power output (MAX)	10 W
SPL	no data
Voice coil diameter	Ø 25 mm
Voice coil former	Kapton

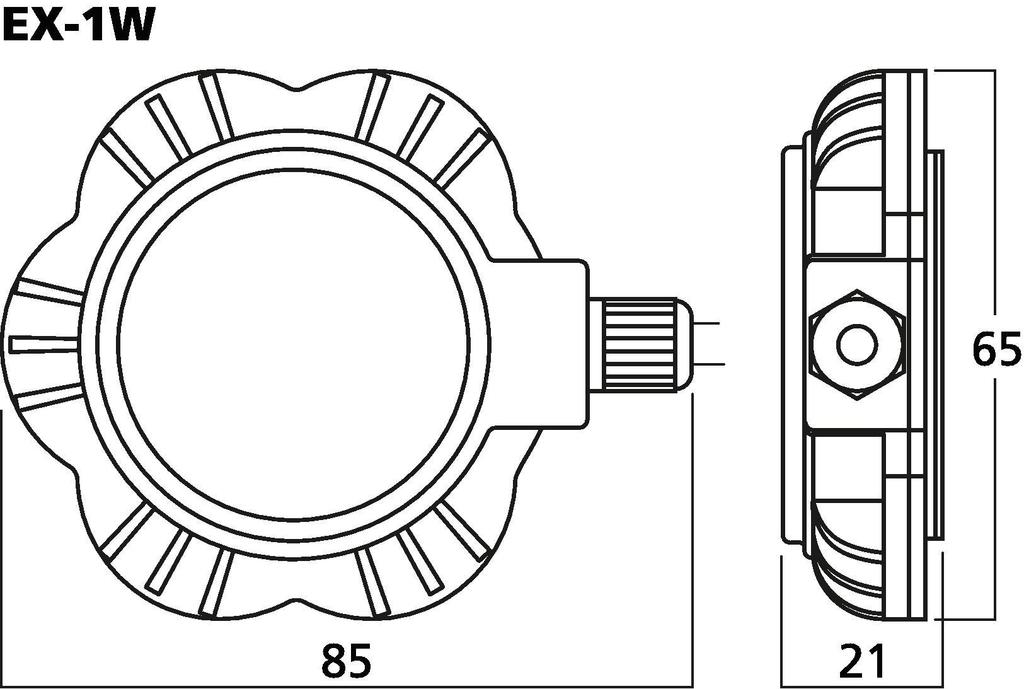

Dimensions	85 x 65 x 21 mm
Width	85 mm
Height	65 mm
Depth	21 mm
Colour	black
Protective class	IP66
Admiss. ambient temp.	-10 °C to +40 °C
Weight	0.107 kg
Packing unit	1
Packaging dimensions (W x H x L)	0.126 x 0.032 x 0.137 m
Gross weight	0.138 kg
Net weight	0.107 kg
