Order no.: 1001201

GF-901

Order no.: 1001201

GF-901

Gooseneck condenser microphone,
for desktop microphone station transmitters.
  • Balanced connection
  • Supercardioid polar pattern
  • LED for indicating operating status
  • FI protection technology for suppressing external RF interference
  • 3-pole XLR connection
  • Total length: 310 mm
Please note: RELACART products are distributed by MONACOR INTERNATIONAL exclusively in the following countries: Germany, Austria, Switzerland, Netherlands, Belgium, Luxembourg, Denmark, Portugal, Malta. Orders from other countries cannot be fulfilled.
Manufacturer information:
Relacart Electronics Co., Ltd.
1408 Room, B Building
Fengxing Plaza
No. 242, Tianhe Road
Tianhe District
Guangzhou, Guangdong
China
info@relacart.com

Importer:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

About

Gooseneck condenser microphone,
for desktop microphone station transmitters.
  • Balanced connection
  • Supercardioid polar pattern
  • LED for indicating operating status
  • FI protection technology for suppressing external RF interference
  • 3-pole XLR connection
  • Total length: 310 mm
Please note: RELACART products are distributed by MONACOR INTERNATIONAL exclusively in the following countries: Germany, Austria, Switzerland, Netherlands, Belgium, Luxembourg, Denmark, Portugal, Malta. Orders from other countries cannot be fulfilled.
Manufacturer information:
Relacart Electronics Co., Ltd.
1408 Room, B Building
Fengxing Plaza
No. 242, Tianhe Road
Tianhe District
Guangzhou, Guangdong
China
info@relacart.com

Importer:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Description gooseneck microphone
Transmission method cable
Polar pattern supercardioid
System condenser

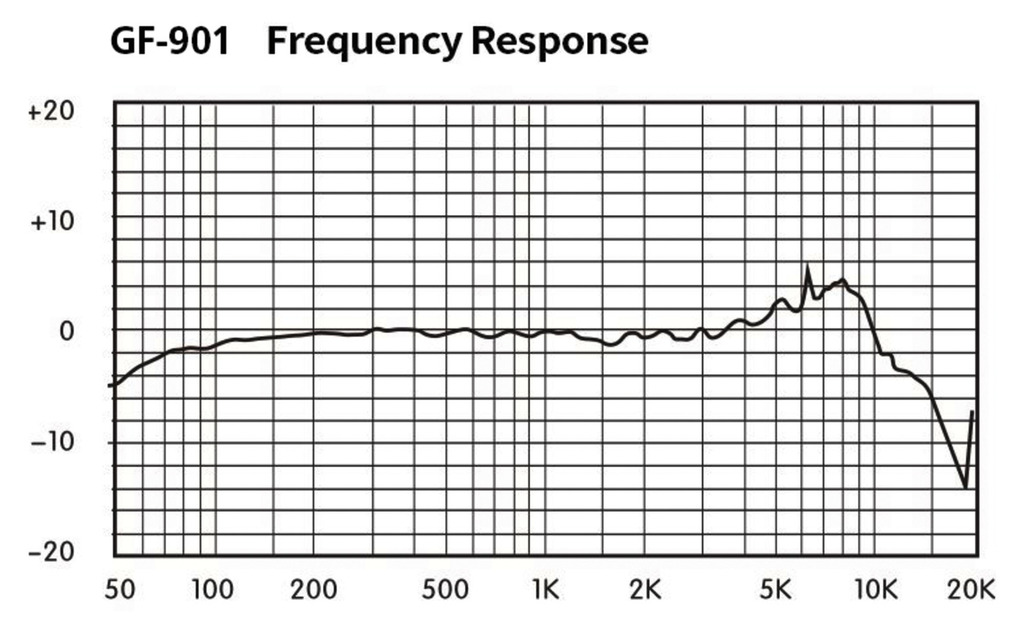

Audio frequency range 100-15,000 Hz
Nominal impedance 680 Ω
Sensitivity 7 mV/Pa
S/N ratio > 55 dB
Max. sound pressure 110 dB
Power supply DC 5 V
Admiss. ambient temp. 0-40 °C
Dimensions 310 mm
Weight 170 g
Connection 3-pole XLR
Packaging dimensions (W x H x L) 0.41 x 0.05 x 0.05 m
Gross weight 0.252 kg
Net weight 0.173 kg
EAN code 4007754426618
Net weight 0.173 kg
