Order no.: 0234380

GM-5212

P1487
Order no.: 0234380

GM-5212

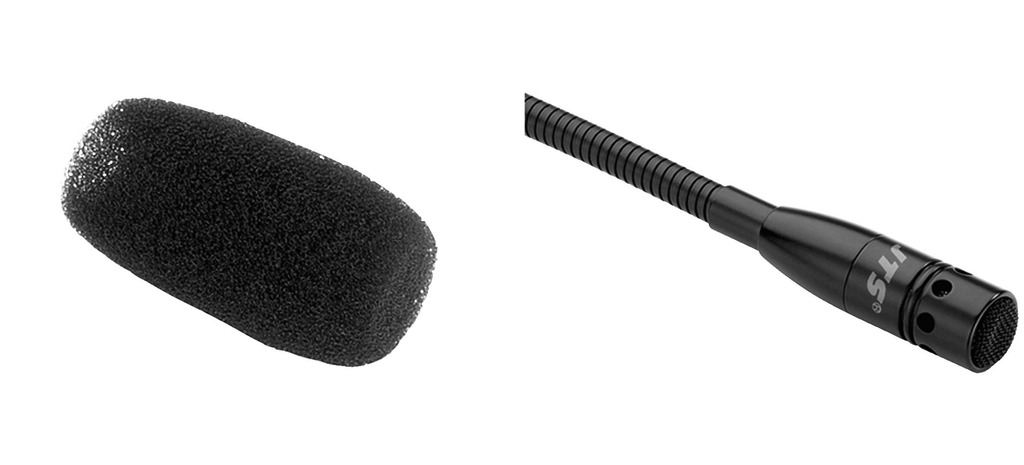

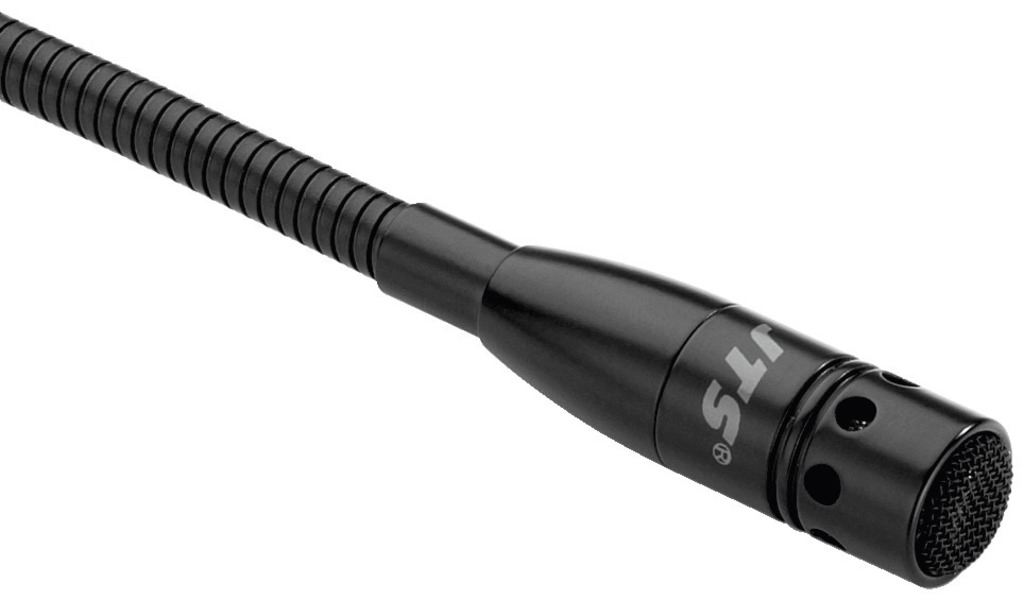

Electret gooseneck microphones
  • Supercardioid polar pattern
  • Excellent sound with a very high speech intelligibility
  • Minimum susceptibility to acoustic feedback
  • Reliable and high-quality workmanship for a long service life

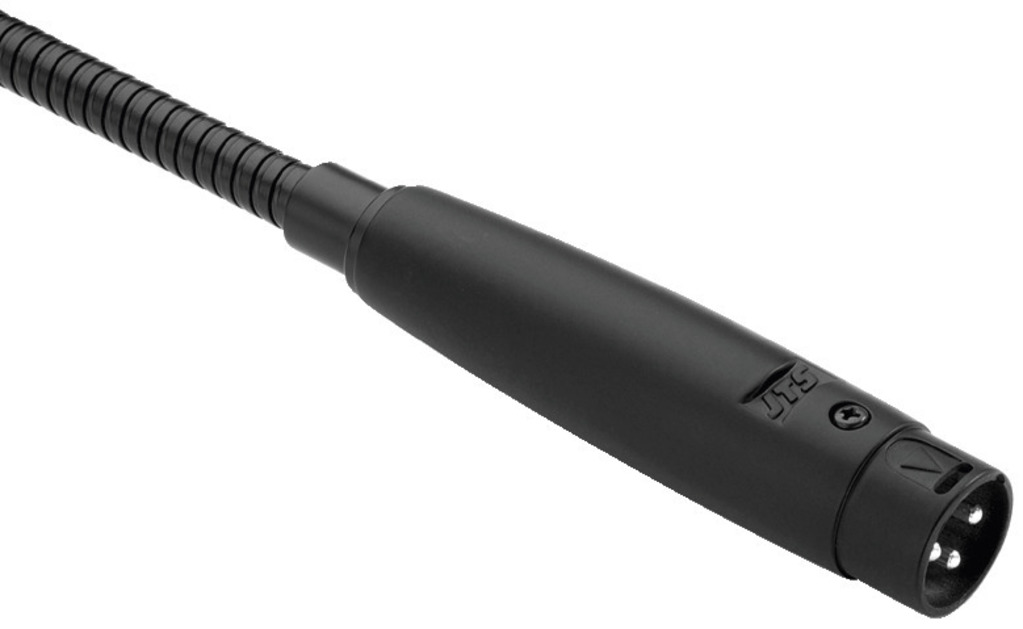

  • Gooseneck with integrated 3-pole XLR plug
  • Operation via external phantom power or desktop microphone base DMS-5
Manufacturer information:
JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
continue

About

Electret gooseneck microphones
  • Supercardioid polar pattern
  • Excellent sound with a very high speech intelligibility
  • Minimum susceptibility to acoustic feedback
  • Reliable and high-quality workmanship for a long service life
  • Gooseneck with integrated 3-pole XLR plug
  • Operation via external phantom power or desktop microphone base DMS-5
Manufacturer information:
JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Description gooseneck microphone
Transmission method cable
Polar pattern supercardioid
System back electret
Audio frequency range 80-18,000 Hz
Nominal impedance 220 Ω ± 30%
Sensitivity 16 mV/Pa
Max. sound pressure 125 dB
Power supply DC 48 V phantom power
Admiss. ambient temp. 0-40 °C
Dimensions 455 mm
Weight 165 g
Connection XLR, bal.
Packaging dimensions (W x H x L) 0.09 x 0.045 x 0.5 m
Gross weight 0.34 kg
Net weight 0.165 kg
EAN code 4007754193763
Net weight 0.165 kg

Downloads

Accessories for GM-5212

Category:
phantom power
Input voltage:
via encl.

plug-in power supply

Output voltage:
+48 V
Order no.: 0233820
EMA-3
48 V phantom power supply
Login
Intended use:
audio, microphone
Connectors:
1 x NEUTRIK XLR plug,

1 x NEUTRIK XLR inline jack

Length:
10 m
Order no.: 0066030
MECN-1000/SW
XLR cable, 10 m, NEUTRIK
Login
Description:
shock-mount base
Type:
XLR
Colour:
black
Order no.: 0348240
ST-5070
XLR chassis structure-borne noise attenuator
Login
