Order no.: 0234410

GM-5212L

P1487

Order no.: 0234410

GM-5212L

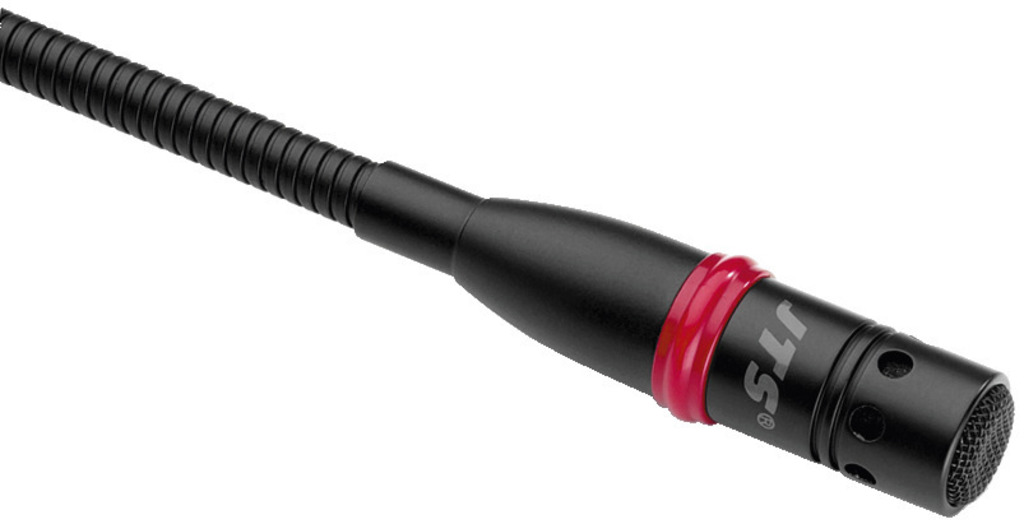

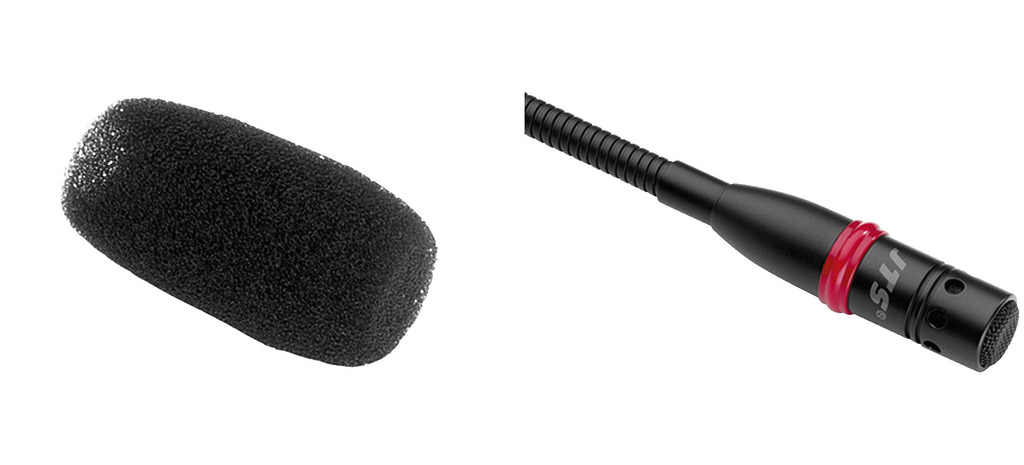

Electret gooseneck microphones with LED

Supercardioid polar pattern
Natural sound
Frequency response perfectly matched to the voice, precise voice reproduction
Low susceptibility to acoustic feedback
LED for indicating operating status
Reliable and high-quality workmanship for a long service life

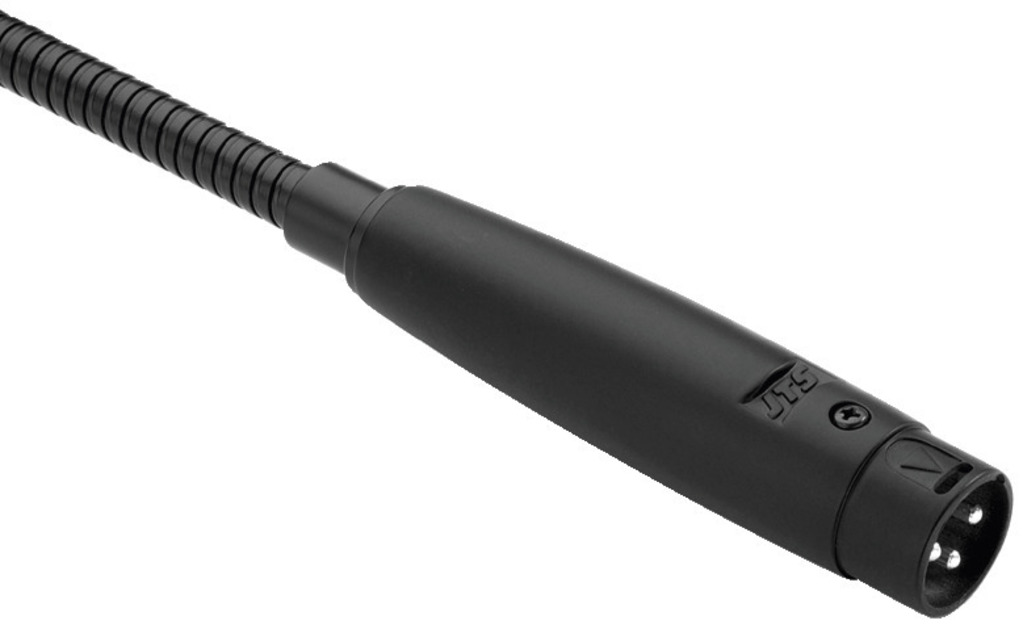

Gooseneck with integrated 3-pole XLR plug
Operation via external phantom power or desktop microphone base DMS-5

Manufacturer information:

JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Electret gooseneck microphones with LED

Supercardioid polar pattern
Natural sound
Frequency response perfectly matched to the voice, precise voice reproduction
Low susceptibility to acoustic feedback
LED for indicating operating status
Reliable and high-quality workmanship for a long service life
Gooseneck with integrated 3-pole XLR plug
Operation via external phantom power or desktop microphone base DMS-5

Manufacturer information:

JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Description	gooseneck microphone
Version	LED
Transmission method	cable
Polar pattern	supercardioid
System	electret
Audio frequency range	80-18,000 Hz
Nominal impedance	220 Ω ± 30%
Sensitivity	12.6 mV/Pa
Max. sound pressure	125 dB
Power supply	DC 48 V phantom power
Admiss. ambient temp.	0-40 °C
Dimensions	465 mm
Weight	165 g
Connection	XLR, bal.
Packaging dimensions (W x H x L)	0.09 x 0.04 x 0.5 m
Gross weight	0.34 kg
Net weight	0.165 kg

EAN code	4007754193794
Net weight	0.165 kg

Downloads

Accessories for GM-5212L

Order no.: 0233820

EMA-3

48 V phantom power supply

Category:
phantom power

Input voltage:
via encl.

plug-in power supply

Output voltage:
+48 V

Order no.: 0233820

EMA-3

48 V phantom power supply

Order no.: 0066030

MECN-1000/SW

XLR cable, 10 m, NEUTRIK

Intended use:
audio, microphone

Connectors:
1 x NEUTRIK XLR plug,

1 x NEUTRIK XLR inline jack

Length:
10 m

Order no.: 0066030

MECN-1000/SW

XLR cable, 10 m, NEUTRIK

Order no.: 0348240

ST-5070

XLR chassis structure-borne noise attenuator

Description:
shock-mount base

Type:
XLR

Colour:
black

Order no.: 0348240

ST-5070

XLR chassis structure-borne noise attenuator
