Order no.: 1000894

GM-5212SW

Order no.: 1000894

GM-5212SW

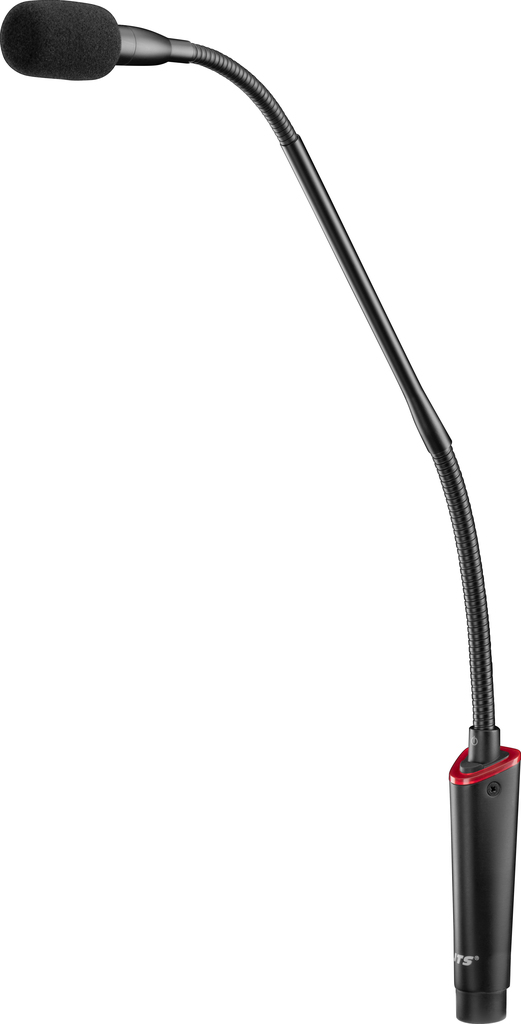

Electret gooseneck microphone with on/off push-button
  • Supercardioid polar pattern
  • Natural sound, precise voice reproduction
  • Low susceptibility to acoustic feedback
  • LED for indicating operating status

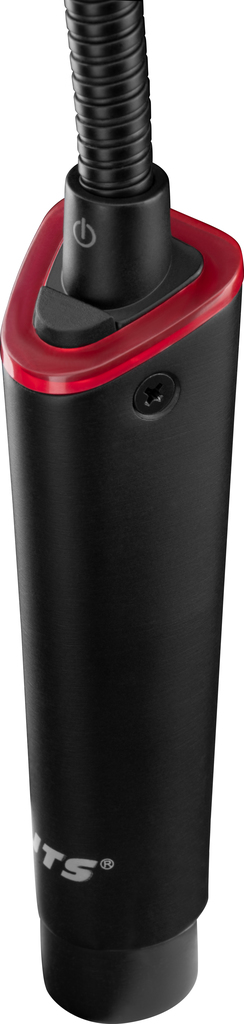

  • Silent on/off push-button
  • Reliable and high-quality workmanship for a long service life

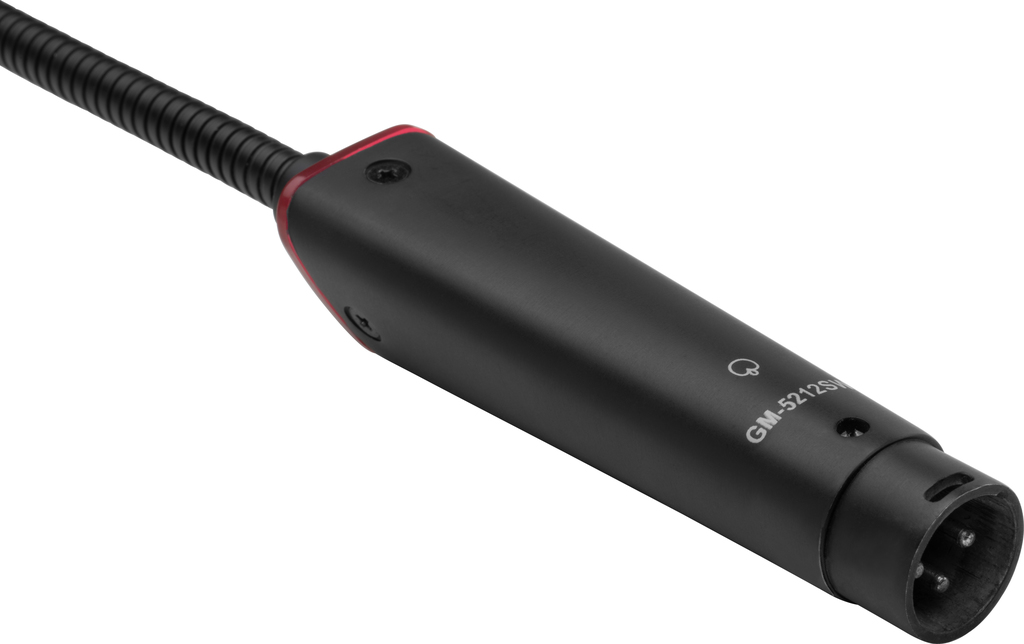

  • Gooseneck with integrated 3-pole XLR plug
  • Operation via external phantom power supply or desktop base

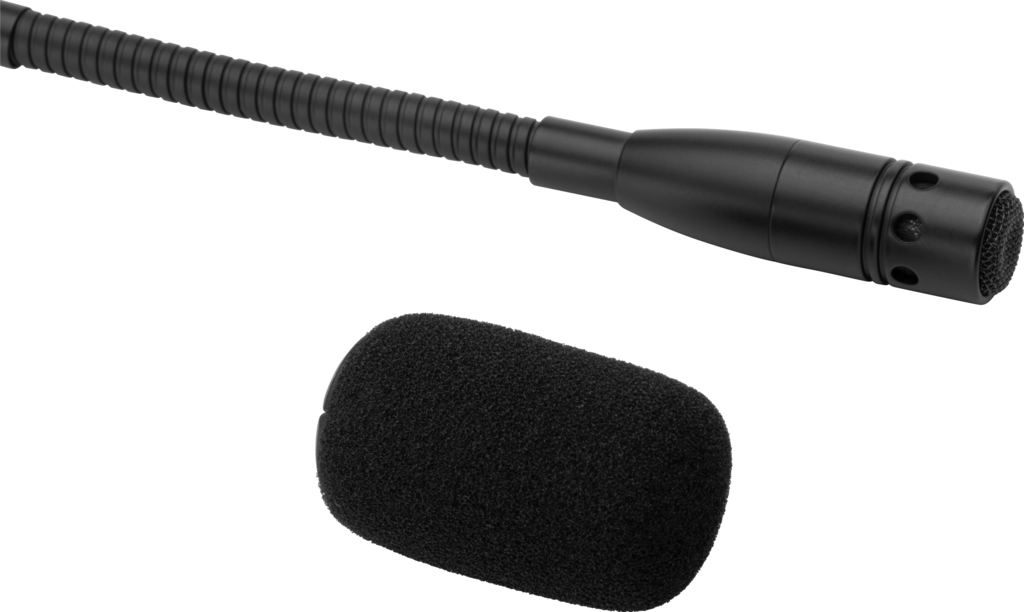

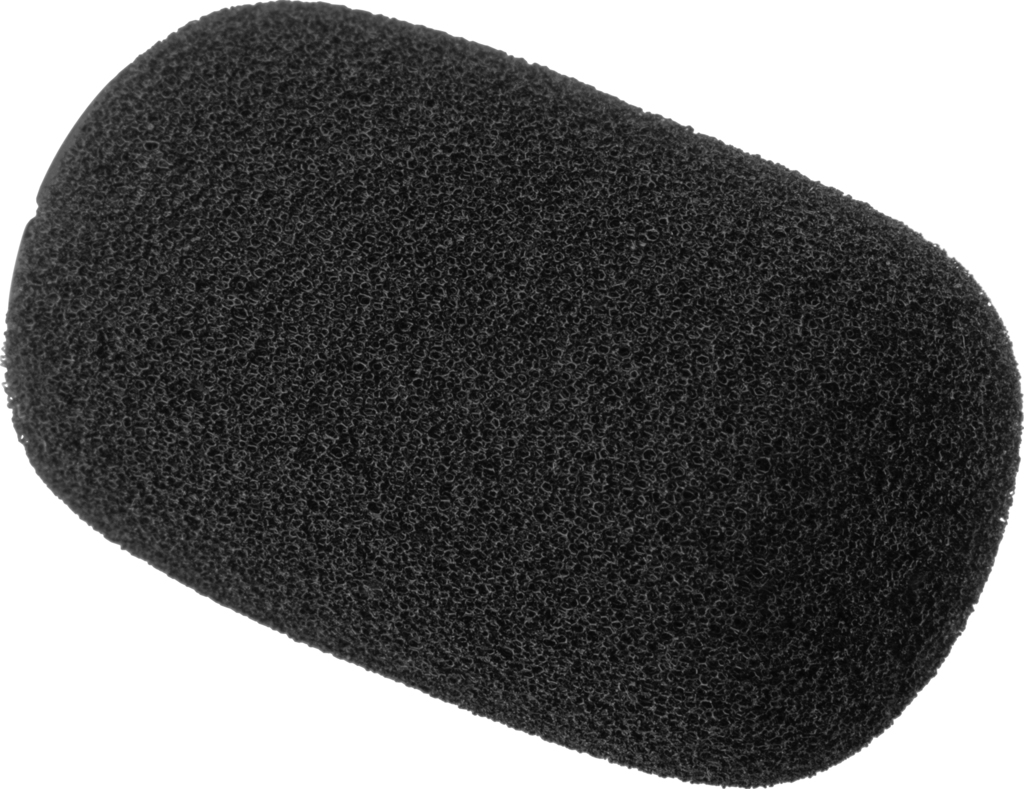

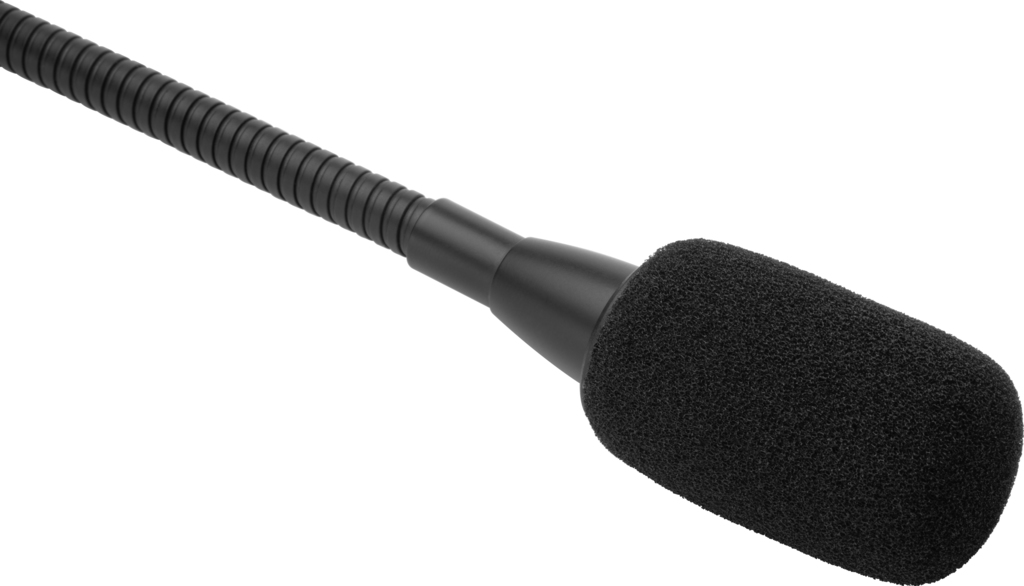

  • Supplied with windshield
Manufacturer information:
JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

About

Electret gooseneck microphone with on/off push-button
  • Supercardioid polar pattern
  • Natural sound, precise voice reproduction
  • Low susceptibility to acoustic feedback
  • LED for indicating operating status
  • Silent on/off push-button
  • Reliable and high-quality workmanship for a long service life
  • Gooseneck with integrated 3-pole XLR plug
  • Operation via external phantom power supply or desktop base
  • Supplied with windshield
Manufacturer information:
JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Description gooseneck microphone
Version LED
Transmission method cable
Polar pattern supercardiod
System back electret
Audio frequency range 80-18,000 Hz
Nominal impedance 100 Ω
Sensitivity 15.8 mV/Pa
S/N ratio 74 dB
Max. sound pressure 125 dB
Power supply DC 12-48 V phantom power
Gooseneck length 305 mm
Admiss. ambient temp. 0-40 °C
Dimensions 466 mm
Weight 180 g
Connection XLR, bal.
Packaging dimensions (W x H x L) 0.495 x 0.091 x 0.059 m
Gross weight 0.33 kg
Net weight 0.18 kg
EAN code 4007754419399
Net weight 0.18 kg

Accessories for GM-5212SW

Category:
phantom power
Input voltage:
via encl.

plug-in power supply

Output voltage:
+48 V
Order no.: 0233820
48 V phantom power supply
Intended use:
audio, microphone
Connectors:
1 x NEUTRIK XLR plug,

1 x NEUTRIK XLR inline jack

Length:
10 m
Order no.: 0066030
XLR cable, 10 m, NEUTRIK
Description:
shock-mount base
Type:
XLR
Colour:
black
Order no.: 0348240
XLR chassis structure-borne noise attenuator
