Order no.: 1001130

H1SC-8050

PA mid-high range horn

ABS plastic horn
Driver connection via 35 mm standard thread
Recommended crossover frequency: 1.5 kHz

Manufacturer information:

Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com

Importer:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com

continue

About

PA mid-high range horn

ABS plastic horn
Driver connection via 35 mm standard thread
Recommended crossover frequency: 1.5 kHz

Manufacturer information:

Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com

Importer:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com

Specifications

Description	exponential horn
Material	ABS
Frequency range	1,000-20,000 Hz
Crossover frequency	1.5 kHz

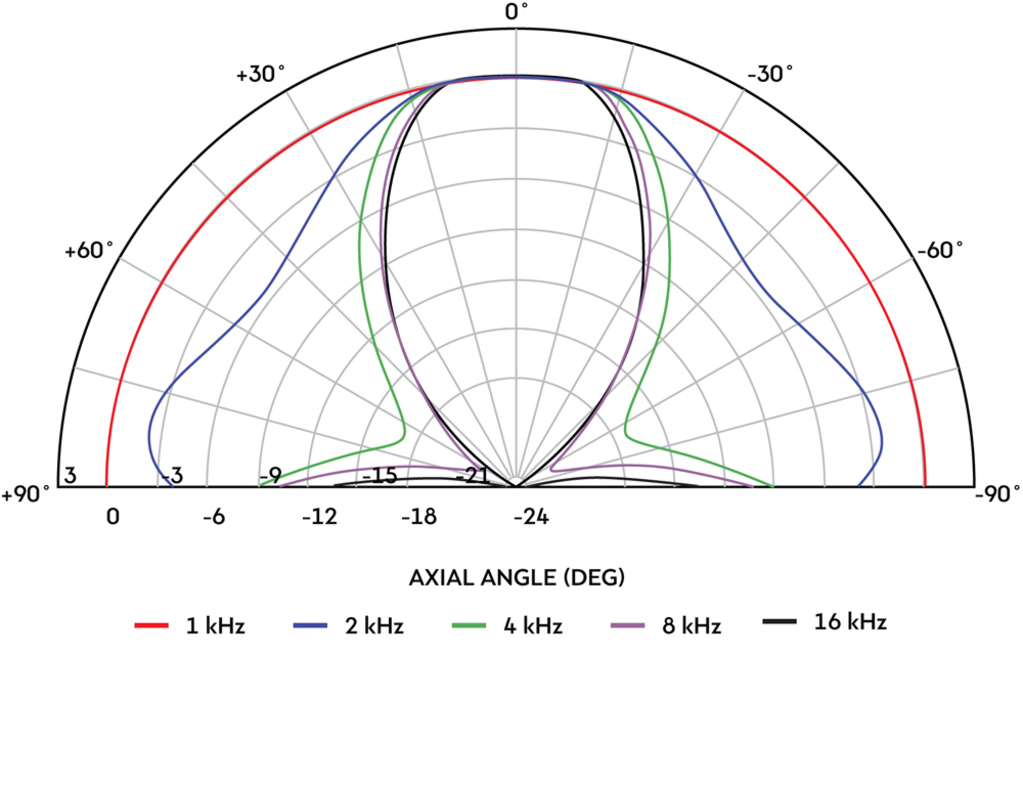

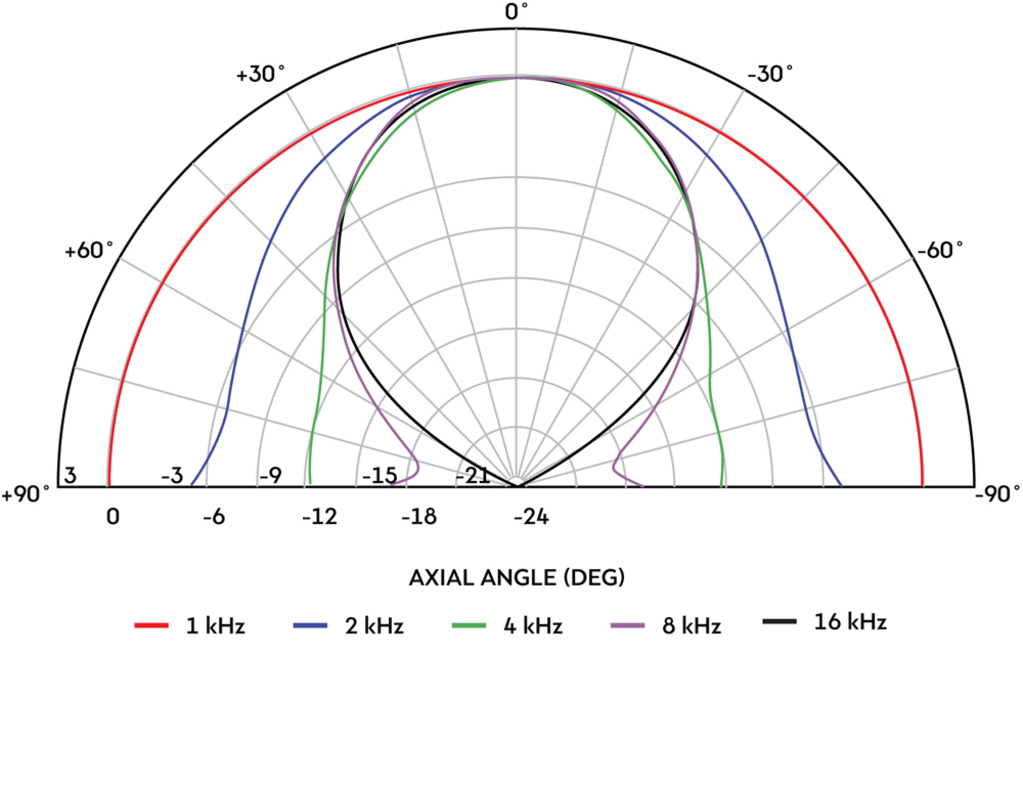

Radiation angle (vert./hor.)	50°/80°
Radiation angle, vertical	50°
Radiation angle, horizontal	80°
Suitable outlet	Ø 25.4 mm
Mounting cutout	Ø 155 mm
Mounting depth	88 mm
Dimensions	178 x 178 x 88 mm
Height	178 mm
Width	178 mm
Depth	88 mm
Weight	0.187 kg

EAN code	739894595261
Net weight	0.187 kg
