Order no.: 0232170

HSE-110

Order no.: 0232170

HSE-110

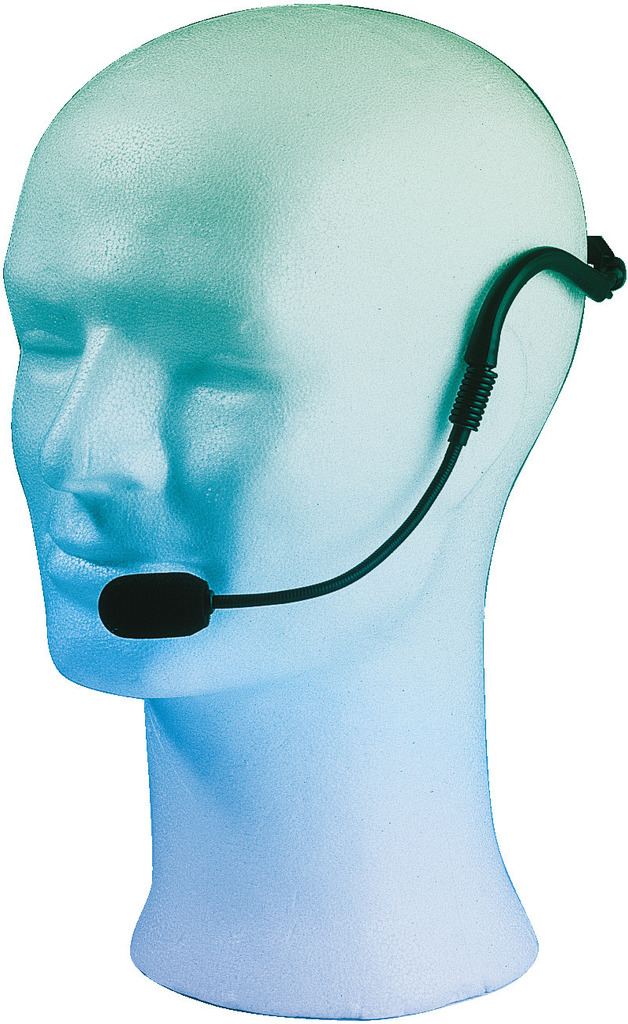

Headband microphone
  • High-quality back electret cartridge
  • Very linear frequency response, especially resistant to external sound due to its supercardioid characteristic with high back suppression
  • The power supply adapter EMA-1 or a respective power supply is required for operation
  • 3-pole mini XLR inline jack, matching EMA-1 or a pocket transmitter TXS-...HSE
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

About

Headband microphone
  • High-quality back electret cartridge
  • Very linear frequency response, especially resistant to external sound due to its supercardioid characteristic with high back suppression
  • The power supply adapter EMA-1 or a respective power supply is required for operation
  • 3-pole mini XLR inline jack, matching EMA-1 or a pocket transmitter TXS-...HSE
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Description headband microphone
Transmission method cable
Polar pattern supercardioid
System back electret
Audio frequency range 20-20,000 Hz
Nominal impedance 3 kΩ
Sensitivity 7 mV/Pa
Max. sound pressure 120 dB
Power supply DC 1.3-20 V
Admiss. ambient temp. 0-40 °C
Weight 69 g
Connection 3-pole mini XLR
Packaging dimensions (W x H x L) 0.175 x 0.055 x 0.215 m
Gross weight 0.207 kg
Net weight 0.069 kg
EAN code 4007754114102
Net weight 0.069 kg

Accessories for HSE-110

Category:
phantom power supply adapter
Input voltage:
via mixer
Connections:
3-pole mini XLR
Order no.: 0232410
Phantom power supply adapter
Description:
windshield
Colour:
black
Material:
foam
Order no.: 0235390
Microphone windshield
