Order no.: 0100180

HT-22/8

P272 P410
Order no.: 0100180

HT-22/8

Cone tweeter, 10 W, 8 Ω
  • Classic tweeter for hi-fi, car hi-fi and for replacement purposes
Klang+Ton 02/2012
“The unit at the most favourable price was the surprise in the test ... provides the most balanced frequency response in front of the microphone ... very attractive price, to be used without any problems, offers best measured values.”
Klang+Ton 02/2018
“Quite respectable. [...] considering the modest use of material, a remarkable performance.” (SP-13/4 and HT-22/8 in the Cheap Trick 296 of Klang+Ton)
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
continue

About

Cone tweeter, 10 W, 8 Ω
  • Classic tweeter for hi-fi, car hi-fi and for replacement purposes
Klang+Ton 02/2012
“The unit at the most favourable price was the surprise in the test ... provides the most balanced frequency response in front of the microphone ... very attractive price, to be used without any problems, offers best measured values.”
Klang+Ton 02/2018
“Quite respectable. [...] considering the modest use of material, a remarkable performance.” (SP-13/4 and HT-22/8 in the Cheap Trick 296 of Klang+Ton)
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z) 8 Ω
Transmission technology cable

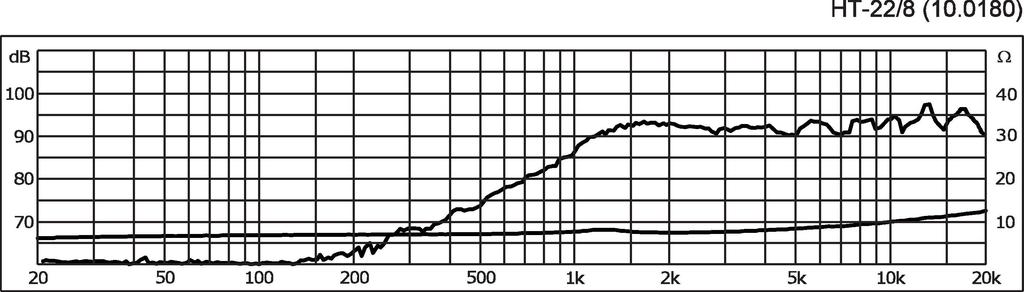

Frequency range fx-19,000 Hz
Resonant frequency (fs) 1,500 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 2,500 Hz
Power rating (RMS) 10 W
Peak music power output (MAX) 20 W
SPL 91 dB/W/m

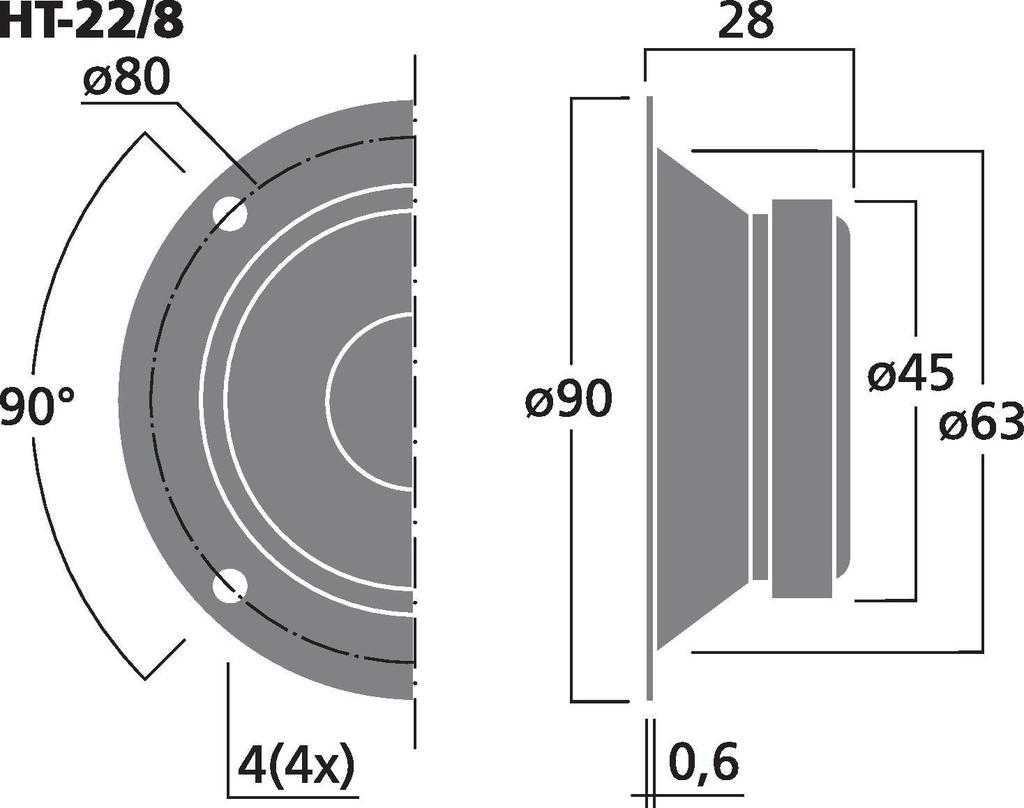

Voice coil diameter Ø 12 mm
Magnet diameter Ø 45 mm
Mounting cutout Ø 63 mm
Mounting depth 27.4 mm
Mounting hole diameter Ø 80 mm
Hole spacing X-axis 56 mm
Hole spacing Y-axis 56 mm
Dimensions Ø 90 mm x 28 mm
Outside diameter Ø 90 mm
Width Ø 90 mm
Height Ø 90 mm
Depth 28 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.14 kg
Packing unit 1
Type of speaker 2"
Packaging dimensions (W x H x L) 0.095 x 0.035 x 0.095 m
Gross weight 0.154 kg
Net weight 0.14 kg
EAN code 4007754008920
Net weight 0.14 kg
