| Impedance (Z) | 8 Ω |
| Transmission technology | cable |

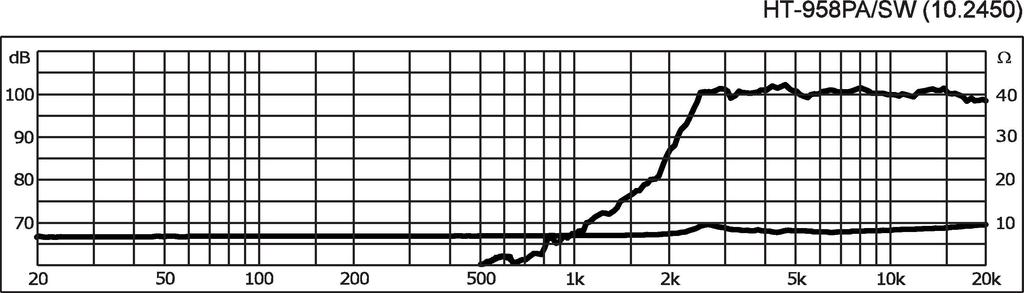

| Frequency range | fx-20 kHz |
| Resonant frequency (fs) | 2.2 kHz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | 5 kHz |
| Power rating (RMS) | 30 W |
| Peak music power output (MAX) | 60 W |
| SPL | 101 dB/W/m |
| Voice coil diameter | Ø 25.4 mm |
| Magnet diameter | Ø 72 mm |
| Mounting cutout | Ø 75 mm |
| Mounting depth | 45 mm |

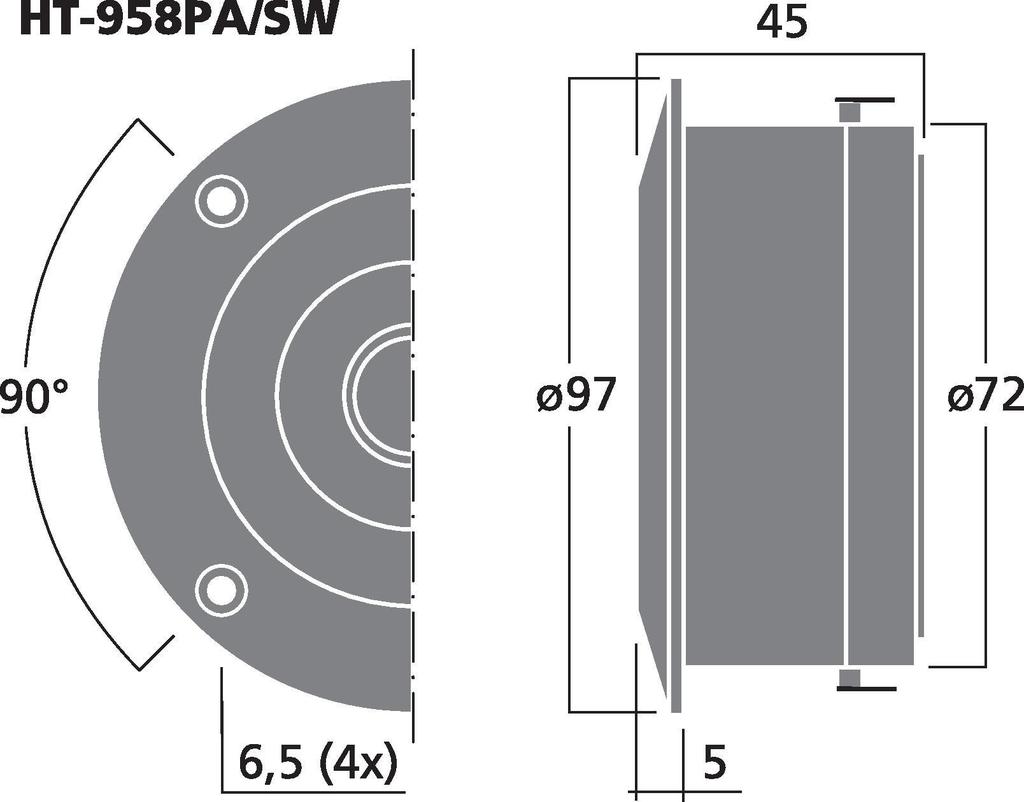

| Dimensions | Ø 97 mm x 45 mm |
| Outside diameter | Ø 97 mm |
| Width | Ø 97 mm |
| Height | Ø 97 mm |
| Depth | 45 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.525 kg |
| Packing unit | 1 |
| Packaging dimensions (W x H x L) | 0.105 x 0.055 x 0.105 m |
| Gross weight | 0.555 kg |
| Net weight | 0.525 kg |
| EAN code | 4007754070590 |
| Net weight | 0.525 kg |
