Order no.: 1000666

IT-130AK

P1330

P1240

P420

Order no.: 1000666

IT-130AK

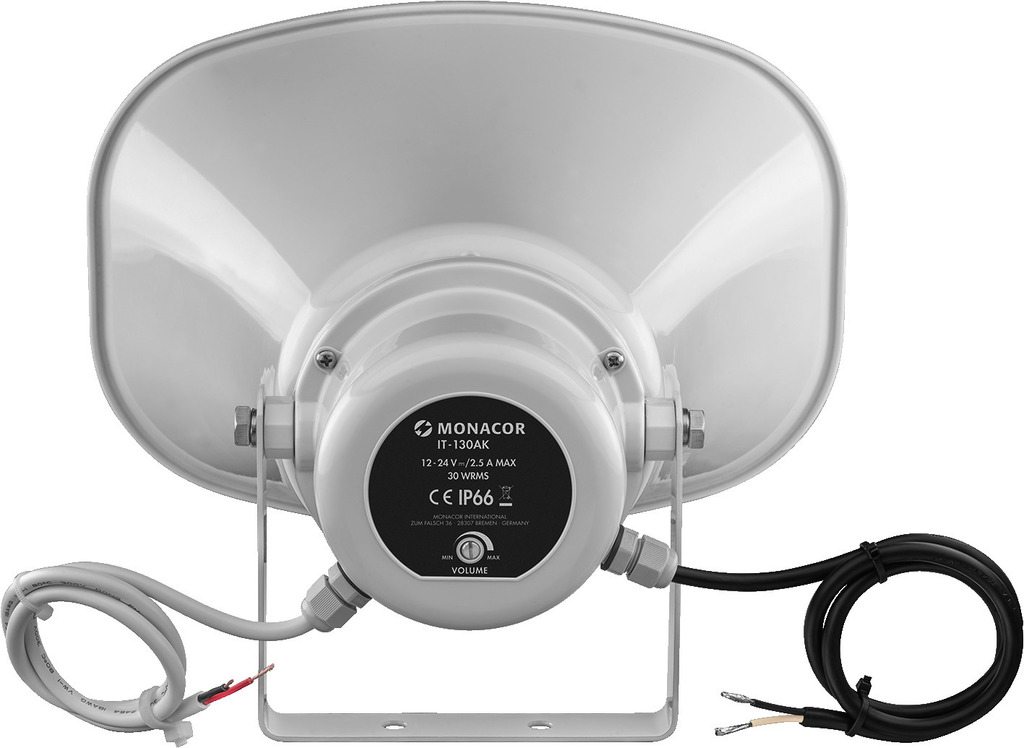

Active weatherproof horn speaker

Weatherproof and IP66 tested
Integrated 30 W amplifier
Volume control
Easy replaceable connection cables via screw terminals
Mobile application possible due to voltage supply of 12-24 V DC/2.5 A

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Active weatherproof horn speaker

Weatherproof and IP66 tested
Integrated 30 W amplifier
Volume control
Easy replaceable connection cables via screw terminals
Mobile application possible due to voltage supply of 12-24 V DC/2.5 A

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Active/passive	active
Transmission technology	cable
Total output power	30 W
Power rating (RMS)	20 W
Frequency range	250-16,000 Hz
Input signal	750 mV/5 kΩ (line)
Number of speakers	1
SPL	109 dB/W/m
Max. rated SPL	124 dB
Radiation angle/beam angle	H: 100°/V: 50°
Radiation angle, horizontal	100°
Radiation angle, vertical	50°
Features	volume control
Housing material	ABS
Colour	white
Mounting device	mounting bracket
Protection class	IP66
Admiss. ambient temp.	-20 °C to +50 °C
Power supply	12-24 V DC/2.5 A
Dimensions	290 x 215 x 260 mm
Width	290 mm
Height	215 mm
Depth	260 mm
Weight	1.5 kg
Inputs	open cable ends
Other features	weatherproof
Packaging dimensions (W x H x L)	0.22 x 0.285 x 0.3 m
Gross weight	1.84 kg
Net weight	1.5 kg

EAN code	4007754411966
Net weight	1.5 kg
