Order no.: 0163190

IT-250TW

Order no.: 0163190

IT-250TW

The music horns from MONACOR are the state-of-the-art solution in order to use the full range of a horn speaker with a clearly extended frequency range.
The 2-way technology with a dynamic cone bass-midrange speaker and a horn tweeter allows for an increase in the sound quality and permits to radiate the keynotes of voices and instruments which cannot be achieved by conventional horn speakers. The music horns are a perfect solution whenever an optimum voice volume and/or a more complete music transmission is required.
Weatherproof horn speaker (music horn), 2-way technology
  • 100 V transmission technology or 8 Ω operation
  • IP66 certified
  • High-performance music horn at an attractive price
  • 16 cm bass-midrange speaker and 25 mm (1") horn
  • ABS plastic housing
  • Supplied with mounting bracket
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

About

The music horns from MONACOR are the state-of-the-art solution in order to use the full range of a horn speaker with a clearly extended frequency range.
The 2-way technology with a dynamic cone bass-midrange speaker and a horn tweeter allows for an increase in the sound quality and permits to radiate the keynotes of voices and instruments which cannot be achieved by conventional horn speakers. The music horns are a perfect solution whenever an optimum voice volume and/or a more complete music transmission is required.
Weatherproof horn speaker (music horn), 2-way technology
  • 100 V transmission technology or 8 Ω operation
  • IP66 certified
  • High-performance music horn at an attractive price
  • 16 cm bass-midrange speaker and 25 mm (1") horn
  • ABS plastic housing
  • Supplied with mounting bracket
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Active/passive passive
Transmission technology 100 V
Total power rating 50 W
Power rating (RMS) 50/25/12.5/9/4.5/3.5 W (100 V)

50 W (8 Ω)

Impedance 8 Ω

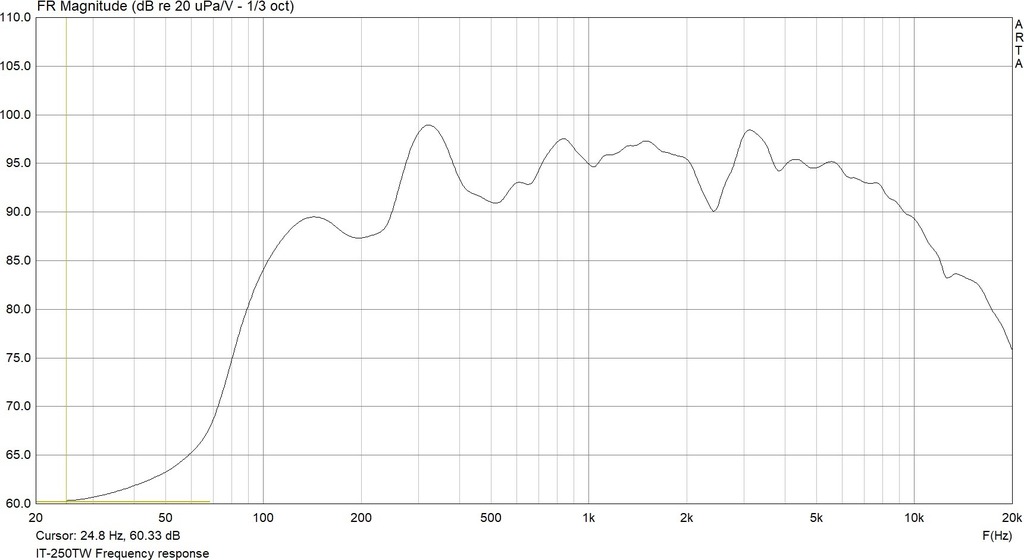

Frequency range 150-15,000 Hz
Number of speakers 2
SPL 97 dB/W/m
Max. rated SPL 114 dB

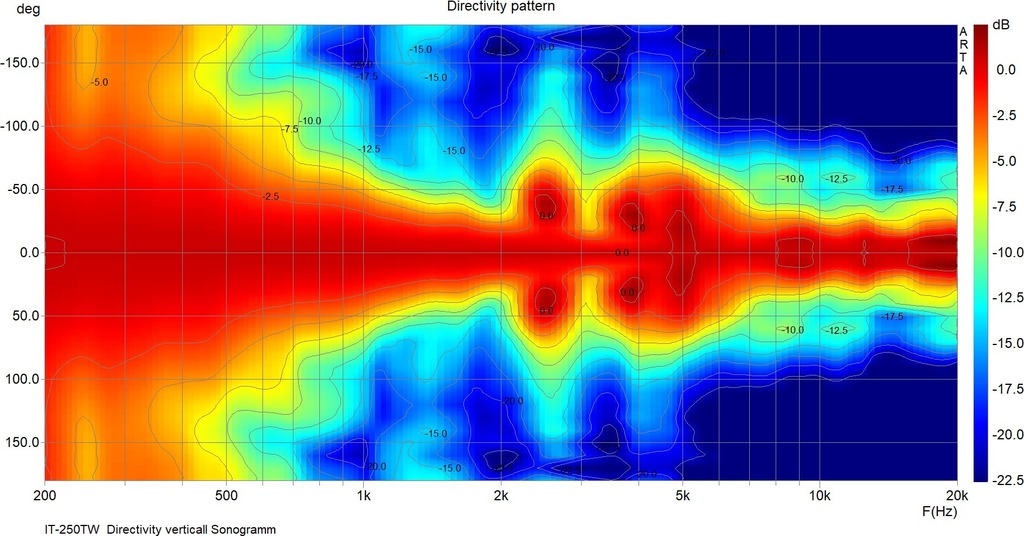

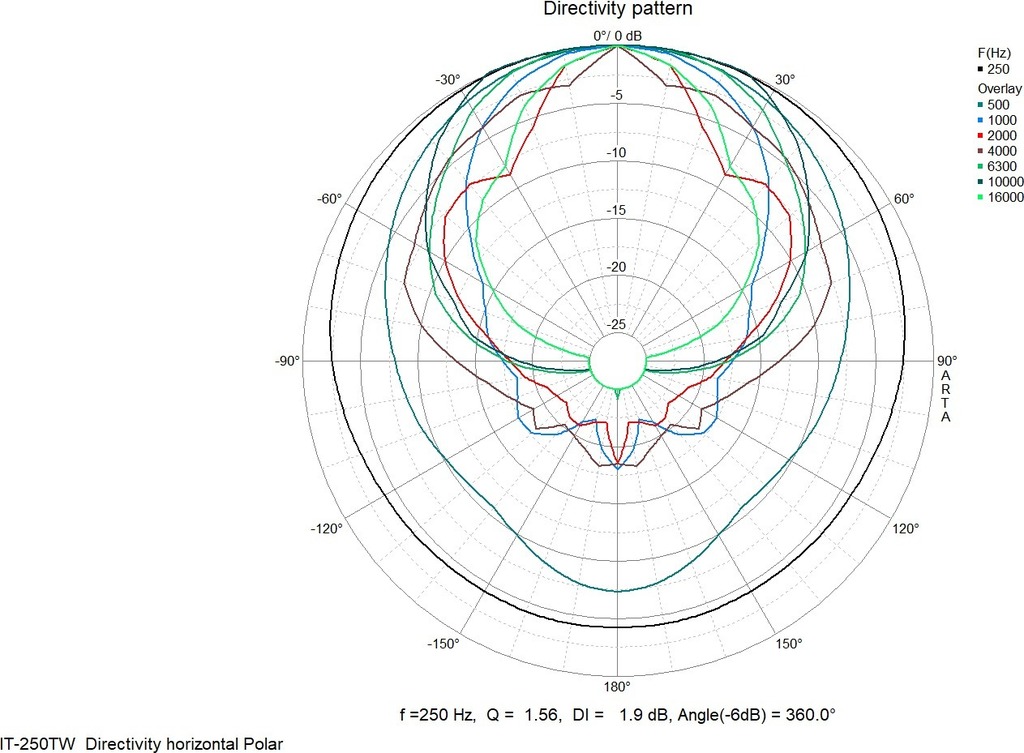

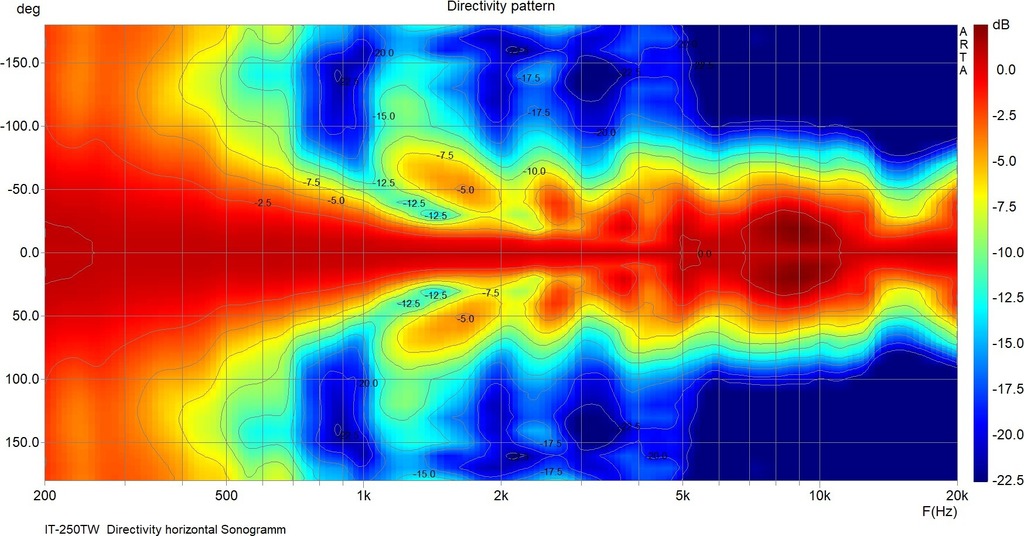

Radiation angle/beam angle H: 100°/V: 60°
Radiation angle, horizontal 100°
Radiation angle, vertical 60°
Features 2-way
Housing material ABS
Colour light grey
Mounting device mounting bracket
Protection class IP66
Admiss. ambient temp. -20 °C to +50 °C

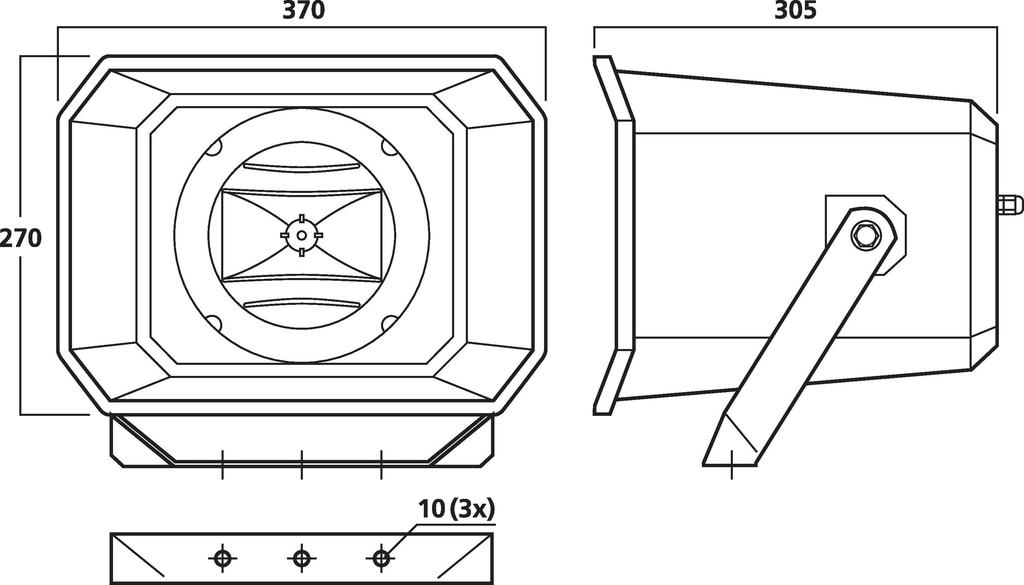

Dimensions 370 x 270 x 305 mm
Width 370 mm
Height 270 mm
Depth 305 mm
Weight 4.1 kg
Inputs screw terminals
Other features weatherproof
Packaging dimensions (W x H x L) 0.28 x 0.345 x 0.38 m
Gross weight 5.22 kg
Net weight 4.58 kg
EAN code 4007754238952
Net weight 4.58 kg

Accessories for IT-250TW

Description:
pole mount
Type:
V2A
Colour:
stainless steel
Order no.: 0163360
Pole mount kit for horn speakers or cameras, V2A
