Order no.: 0160870

IT-35

P2000

P1330

P1240

P415

Order no.: 0160870

IT-35

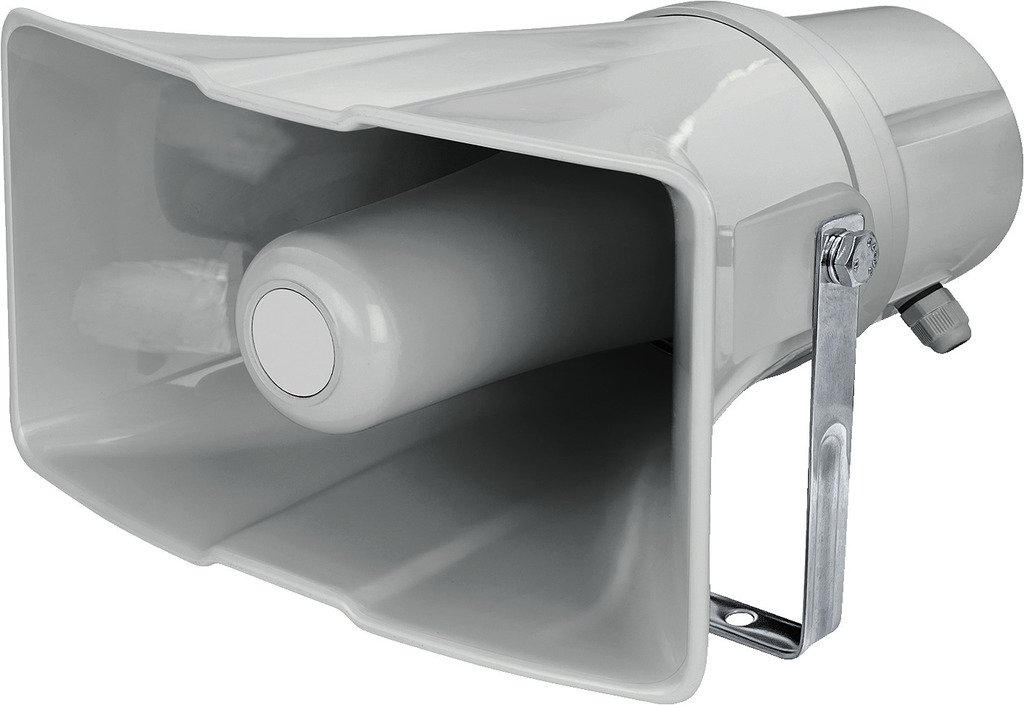

Weatherproof horn speaker

100 V line technology
Weatherproof and IP66 tested
Protected against powerful water jets
Suitable for general indoor and outdoor applications
Robust plastic housing
Mounting bracket and screws made of stainless steel
5-step power selector switch

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Weatherproof horn speaker

100 V line technology
Weatherproof and IP66 tested
Protected against powerful water jets
Suitable for general indoor and outdoor applications
Robust plastic housing
Mounting bracket and screws made of stainless steel
5-step power selector switch

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Active/passive	passive
Transmission technology	100 V
Total power rating	25 W
Power rating (RMS)	25/20/15/10/5 W

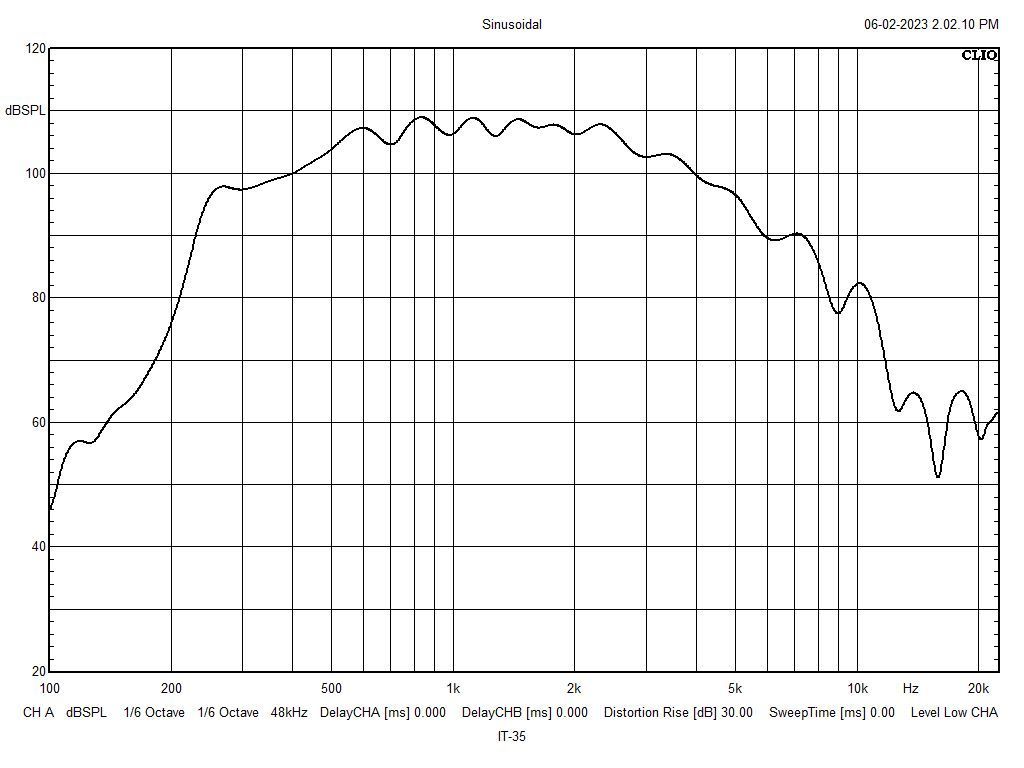

Frequency range	250-10,000 Hz
Number of speakers	1
SPL	108 dB/W/m

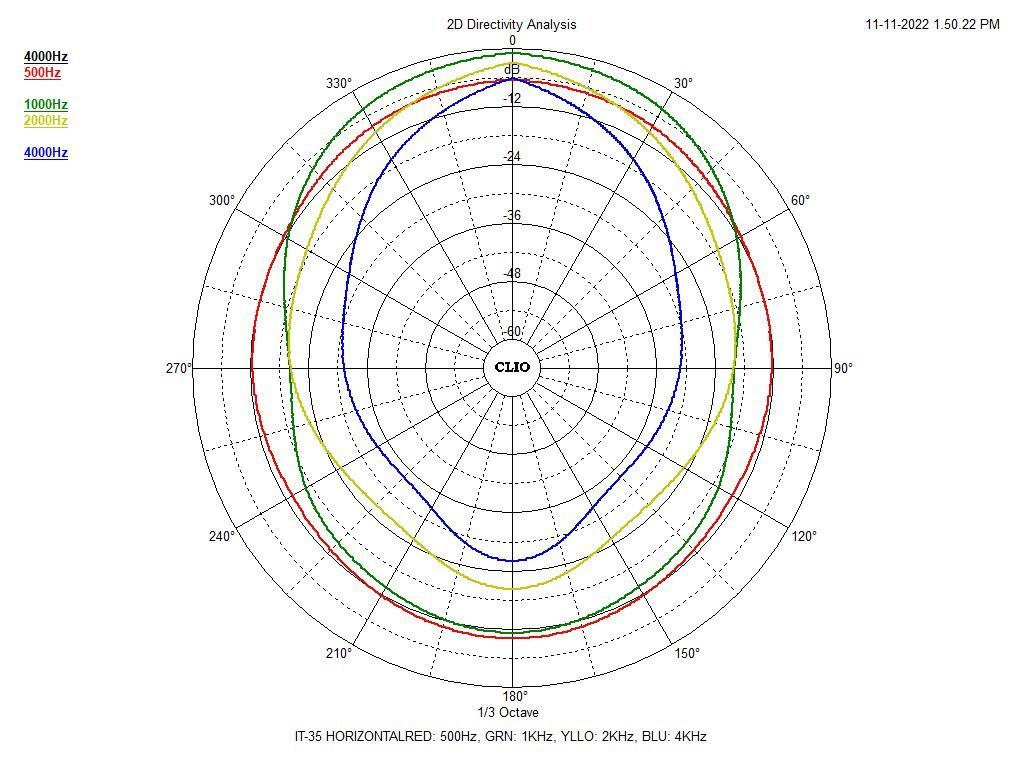

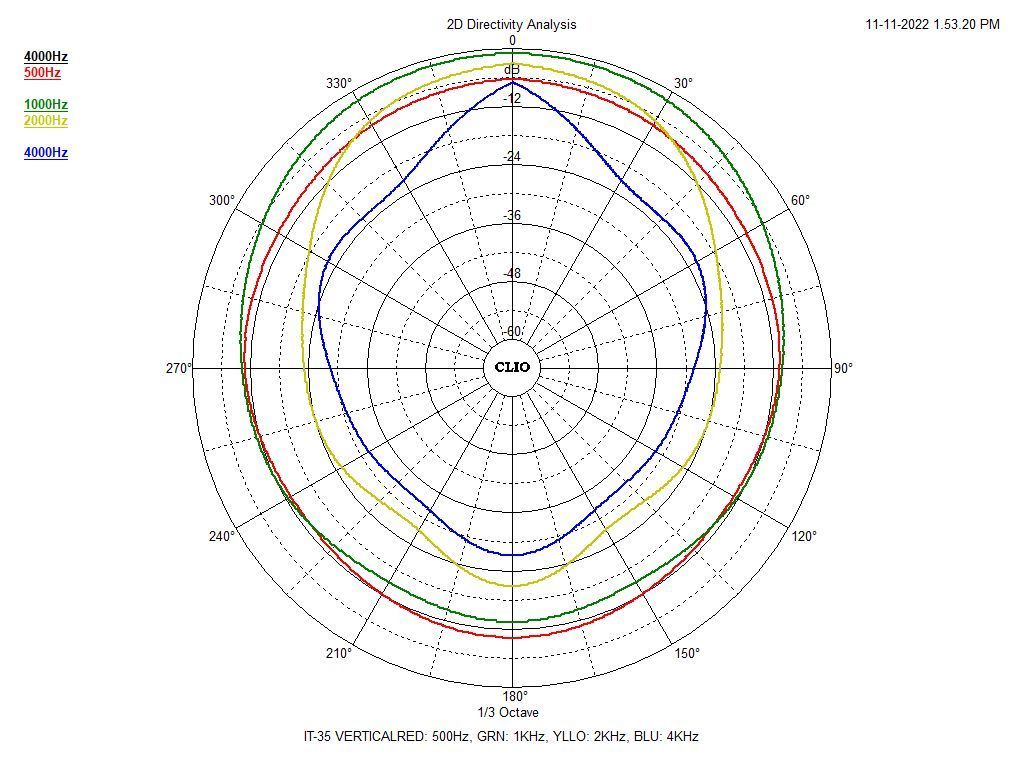

Radiation angle/beam angle	H: 110°/V: 52°
Radiation angle, horizontal	110°
Radiation angle, vertical	52°
Features	power selector switch
Housing material	plastic
Colour	grey
Mounting device	stainless steel mounting bracket
Protection class	IP66
Admiss. ambient temp.	-20 °C to +50 °C
Dimensions	300 x 180 x 315 mm
Width	300 mm
Height	180 mm
Depth	315 mm
Weight	2.4 kg
Inputs	screw terminals
Replacement voice coil	IT-230/VC
Other features	weatherproof
Packaging dimensions (W x H x L)	0.185 x 0.37 x 0.33 m
Gross weight	3.065 kg
Net weight	2.394 kg

EAN code	4007754069327
Net weight	2.394 kg

Downloads

Accessories for IT-35

Order no.: 0160750

IT-230/VC

Replacement voice coil

For:
IT-20, IT-30, IT-35, UHC-30, NR-33KS

Total power rating:
15 W (IT-20)

20 W (IT-30)

25 W (IT-35)

40 W (UHC-30)

25 W (NR-33KS)

Power rating (RMS):
15/10/5/2,5 W (IT-20)

20/15/10/5 W (IT-30)

25/20/15/10/5 W (IT-35)

20 W (UHC-30)

12 W (NR-33KS)

Order no.: 0160750

IT-230/VC

Replacement voice coil

Order no.: 0163360

ITH-300

Pole mount kit for horn speakers or cameras, V2A

Description:
pole mount

Type:
V2A

Colour:
stainless steel

Order no.: 0163360

ITH-300

Pole mount kit for horn speakers or cameras, V2A

Order no.: 0111340

JYSTY-2208

Signal line, type J-Y(St)Y, 4 x 0.5 mm2, 100 m

Intended use:
signal, 100 V PA, alarm, communication

Cable specification:
J-Y(ST)Y

Length:
100 m

Order no.: 0111340

JYSTY-2208

Signal line, type J-Y(St)Y, 4 x 0.5 mm2, 100 m
