Order no.: 1001118

K12H-200TC/8

P580

P170

P_CELESTION

P10

Order no.: 1001118

K12H-200TC/8

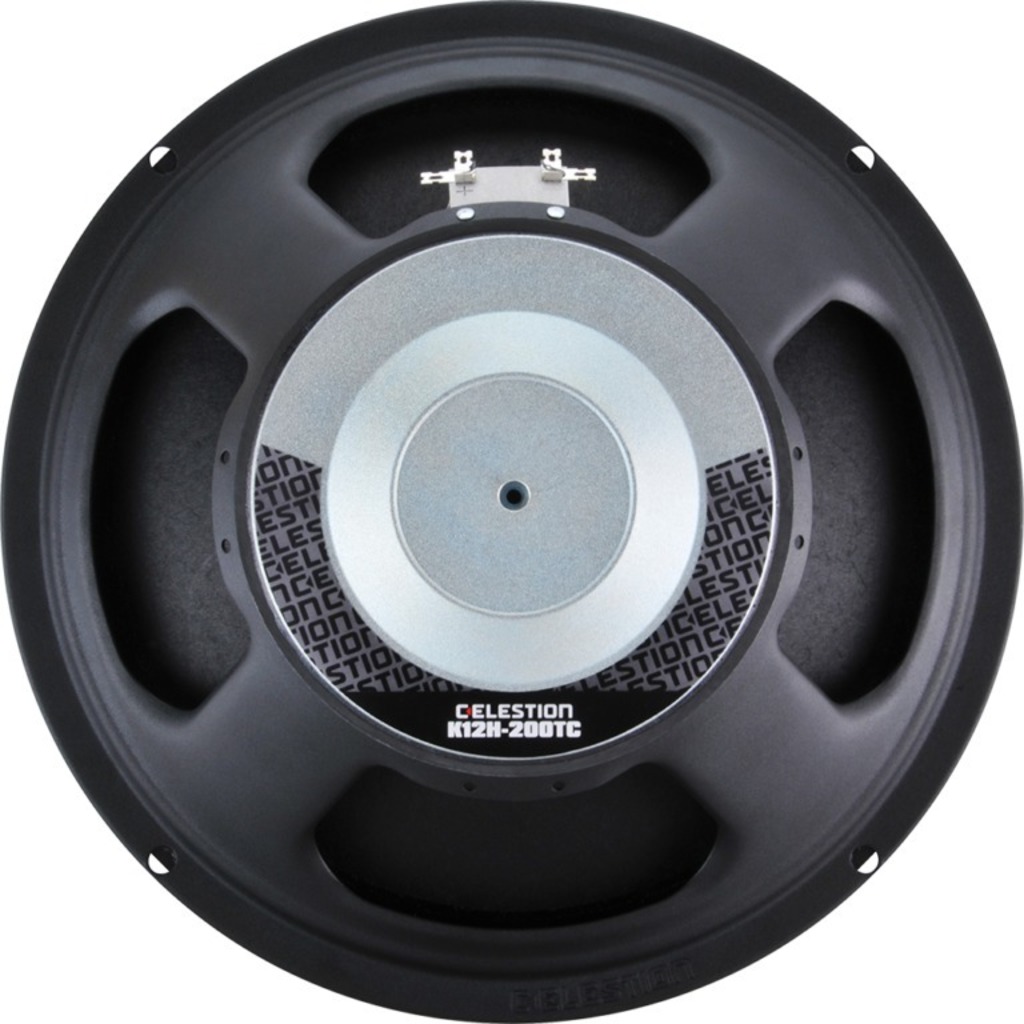

PA bass-midrange speaker, 200 W, 8 Ω

30 cm (12") speaker made of extruded steel
Ferrite magnet driver with extended reproduction of the high frequencies due to dual cone
Stabilised voice coil system for a detailed reproduction of the midrange

Manufacturer information:

Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com

Importer:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com

continue

About

PA bass-midrange speaker, 200 W, 8 Ω

30 cm (12") speaker made of extruded steel
Ferrite magnet driver with extended reproduction of the high frequencies due to dual cone
Stabilised voice coil system for a detailed reproduction of the midrange

Manufacturer information:

Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com

Importer:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com

Specifications

Impedance (Z)	8 Ω
Transmission technology	cable

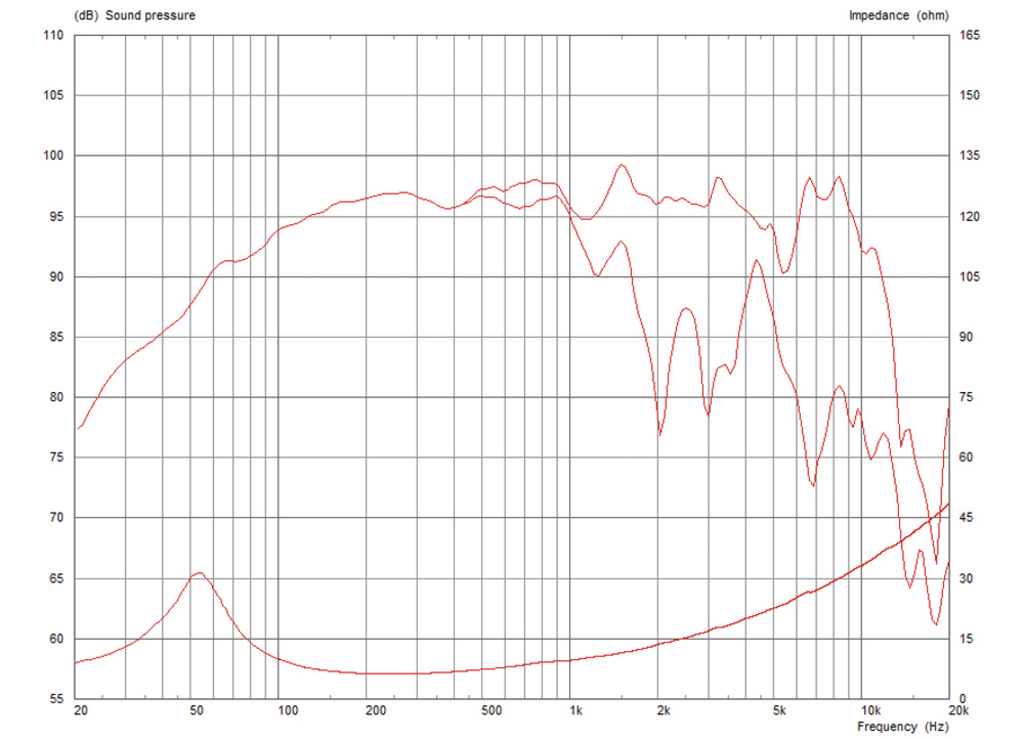

Frequency range	50-5,000 Hz
Resonant frequency (fs)	62.30 Hz
Power rating (RMS)	200 W
Peak music power output (MAX)	400 W
SPL	98 dB/W/m
Suspension compl. (Cms)	14.63 mm/N
Moving mass (Mms)	40.57 g
Mech. Q factor (Qms)	2.804
Electr. Q factor (Qes)	0.432
Total Q factor (Qts)	0.374
Equivalent volume (Vas)	64.1 l
DC resistance (Re)	5.81 Ω
Force factor (BxL)	14.63 Tm
Voice coil induct. (Le)	0.63 mH
Voice coil diameter	Ø 50 mm
Voice coil winding height	12 mm
Voice coil material	copper wire
Voice coil former	polyimide
Linear excursion (X_MAX)	± 4 mm
Eff. cone area (Sd)	530.93 cm²
Magnet weight	1.41 g
Mounting cutout	Ø 283 mm
Mounting depth	130.3 mm
Mounting hole diameter	Ø 297 mm
Dimensions	Ø 309 mm x 130.3 mm
Outside diameter	Ø 309 mm
Width	Ø 309 mm
Height	Ø 309 mm
Depth	130.3 mm
Colour	black
Admiss. ambient temp.	0-40 °C
Weight	3.9 kg
Packing unit	1
Type of speaker	12"
Packaging dimensions (W x H x L)	0.33 x 0.15 x 0.33 m
Gross weight	4.5 kg
Net weight	3.9 kg

EAN code	739894587051
Net weight	3.9 kg
