Order no.: 0112080

KM-24110

Order no.: 0112080

KM-24110

Wall bracket for PA speaker systems,
with patented expanding mandrel for a secure and low-resonance connection between wall bracket and PA speaker system via movable plastic splints.
  • Black lacquered special square steel tube design
  • Tiltable (approx. 22°), tilting angle adjustable in 11 steps

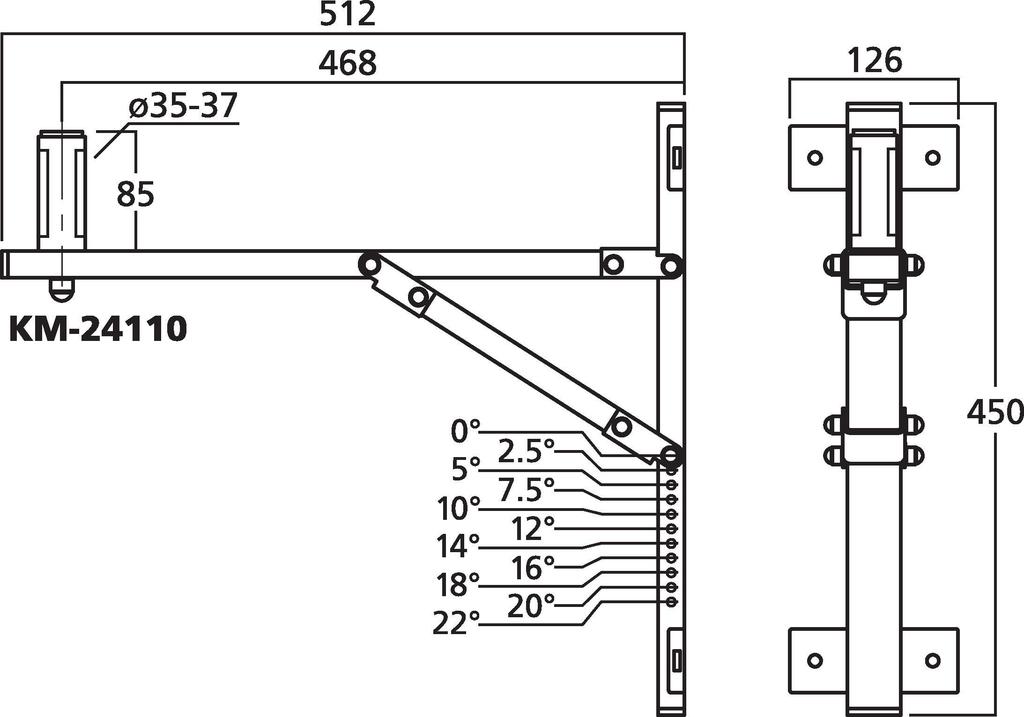

  • Distance between mandrel and wall-mounted square profile tube: 420 mm
  • Load capacity: 50 kg
  • Weight: 2.7 kg
  • GS approved
  • Supplied in individual parts, instructions for assemby are included
Safety Note
To be installed by experts only! Pay attention to precise screw connection! Please use suitable safety ropes!
Manufacturer information:
KÖNIG & MEYER GmbH & Co. KG
Kiesweg 2 a
97877 Wertheim
Germany
contact@k-m.de

About

Wall bracket for PA speaker systems,
with patented expanding mandrel for a secure and low-resonance connection between wall bracket and PA speaker system via movable plastic splints.
  • Black lacquered special square steel tube design
  • Tiltable (approx. 22°), tilting angle adjustable in 11 steps
  • Distance between mandrel and wall-mounted square profile tube: 420 mm
  • Load capacity: 50 kg
  • Weight: 2.7 kg
  • GS approved
  • Supplied in individual parts, instructions for assemby are included
Safety Note
To be installed by experts only! Pay attention to precise screw connection! Please use suitable safety ropes!
Manufacturer information:
KÖNIG & MEYER GmbH & Co. KG
Kiesweg 2 a
97877 Wertheim
Germany
contact@k-m.de

Specifications

Description wall bracket
Suitable for PA speaker systems
Features mandrel
Material steel
Colour black
Max. load/centr. weight concentr. 50 kg
Tilting 11-step
Length 512 mm
Weight 2.7 kg
EAN code 4016842814527
Net weight 2.7 kg
