Order no.: 0233670

MCE-401

Order no.: 0233670

MCE-401

High-quality electret microphone cartridge,
(omnidirectional polar pattern), with 150 mm shielded cable and insulated, tin-plated cable ends.
An external 1-2.2 kΩ resistor is required for AF decoupling.
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
continue

About

High-quality electret microphone cartridge,
(omnidirectional polar pattern), with 150 mm shielded cable and insulated, tin-plated cable ends.
An external 1-2.2 kΩ resistor is required for AF decoupling.
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Polar pattern omnidir.
Frequency range 50-16,000 Hz
Sensitivity 7.9 mV/Pa
Output impedance 2.2 kΩ
S/N ratio > 58 dB
Coupling capacitor 0.1-4.7 µF
Admiss. ambient temp. 0-40 °C
Power supply DC 1.5-10 V/0.5 mA

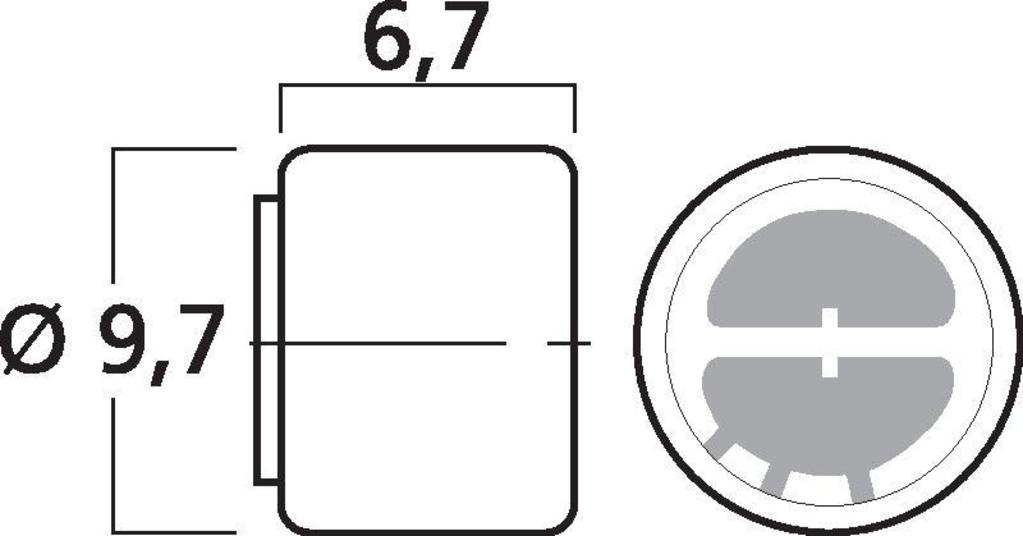

Dimensions Ø 9.7 mm x 6.7 mm
Weight 2 g
EAN code 4007754179262
Net weight 0.002 kg
