Order no.: 0233690

MCE-404U

Order no.: 0233690

MCE-404U

High-quality back electret microphone cartridge,

(cardioid polar pattern).

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

High-quality back electret microphone cartridge,

(cardioid polar pattern).

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Polar pattern	cardioid
Frequency range	100-16,000 Hz
Sensitivity	3.2 mV/Pa
Output impedance	680 Ω
S/N ratio	> 60 dB
Coupling capacitor	0.1-4.7 µF
Admiss. ambient temp.	0-40 °C
Power supply	DC 1.5-10 V/0.5 mA

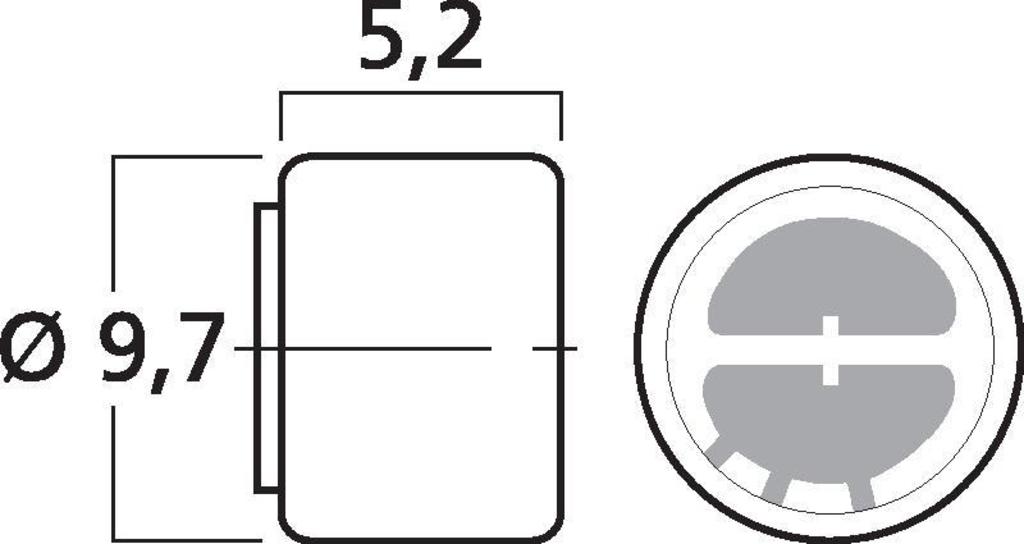

Dimensions	Ø 9.7 mm x 5.2 mm
Weight	1 g

EAN code	4007754179293
Net weight	0.001 kg

Downloads

Accessories for MCE-404U

Order no.: 0233640

MCER-4

Microphone cartridge holder

Order no.: 0233640

MCER-4

Microphone cartridge holder

Order no.: 0320650

MPA-102

1-channel low-noise microphone preamplifier

Description:
microphone preamplifier

Frequency range:
20-20,000 Hz

Input sensitivity:
0.3-150 mV,

switchable

Order no.: 0320650

MPA-102

1-channel low-noise microphone preamplifier

Order no.: 0273030

PSS-600E

Switch-mode power supply, 0.6 A

Category:
switch-mode power supply

Input voltage:
˜ 100-240 V/50-60 Hz/155 mA

Output voltage:
DC 3/4.5/5/6/7.5/9/12 V

Order no.: 0273030

PSS-600E

Switch-mode power supply, 0.6 A
