Order no.: 0233700

MCE-4500

Order no.: 0233700

MCE-4500

High-quality subminiature back electret microphone cartridge for sensing microphones,
(omnidirectional polar pattern), small-sized housing.
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
continue

About

High-quality subminiature back electret microphone cartridge for sensing microphones,
(omnidirectional polar pattern), small-sized housing.
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Polar pattern omnidir.
Frequency range 20-16,000 Hz
Sensitivity 6.3 mV/Pa
Output impedance 2.2 kΩ
S/N ratio > 58 dB
Coupling capacitor 0.1-4.7 µF
Admiss. ambient temp. 0-40 °C
Power supply DC 1.5-10 V/0.5 mA

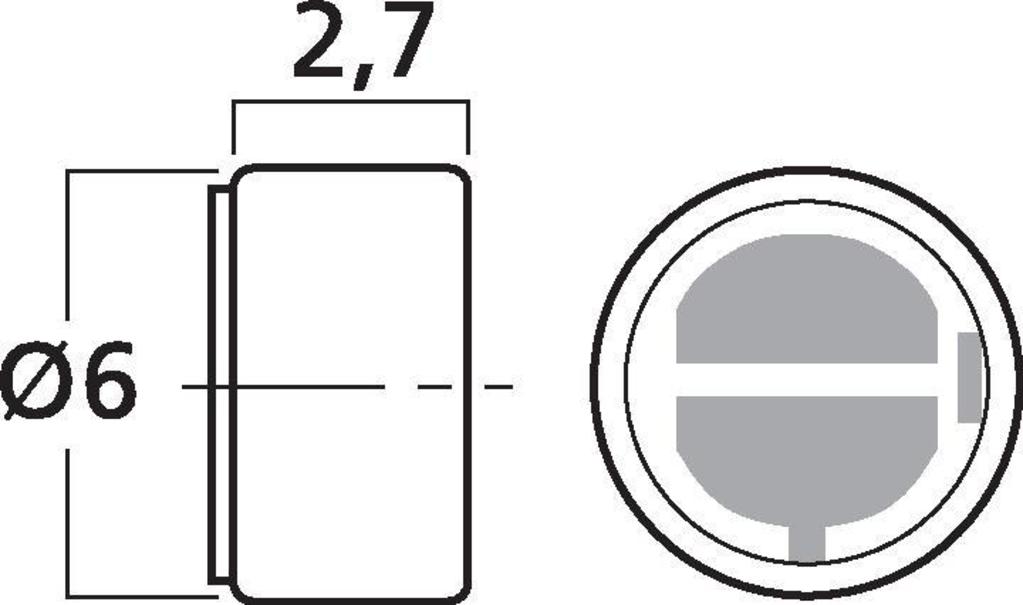

Dimensions Ø 6 mm 2.7 mm
Weight 1 g
EAN code 4007754179279
Net weight 0.001 kg
