Order no.: 0105300

MRD-34PA

P278

P320

P470

Order no.: 0105300

MRD-34PA

PA horn driver, 35 W, 8 Ω

35 mm (1 ⅜") standard thread
Component of the speakers PAB-108MK2, PAB-110MK2 and PAB-112MK2 as well as of the matching PAK speakers
Matching replacement voice coil PAB-128/VC available at option
Suitable for horns MRH-120, MRH-83, MRH-170 and MRH-80

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

PA horn driver, 35 W, 8 Ω

35 mm (1 ⅜") standard thread
Component of the speakers PAB-108MK2, PAB-110MK2 and PAB-112MK2 as well as of the matching PAK speakers
Matching replacement voice coil PAB-128/VC available at option
Suitable for horns MRH-120, MRH-83, MRH-170 and MRH-80

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z)	8 Ω
Transmission technology	cable

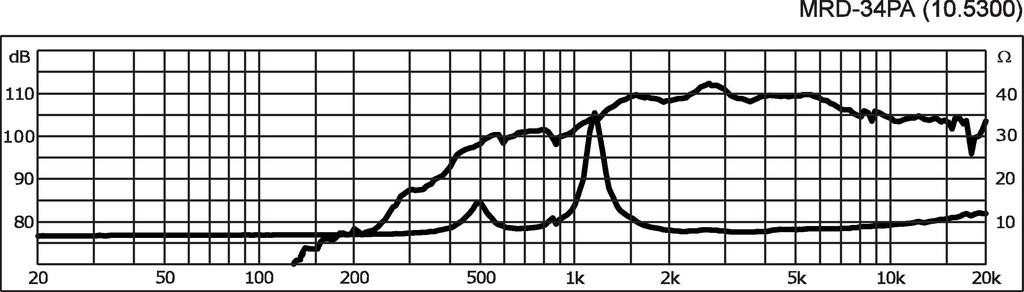

Frequency range	fx-20,000 Hz
Resonant frequency (fs)	1.2 kHz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	4,000 Hz
Power rating (RMS)	35 W
Peak music power output (MAX)	70 W
SPL	104 dB/W/m
Voice coil diameter	Ø 34.5 mm
Magnet diameter	Ø 87 mm
Mounting cutout	dep. on horn
Mounting depth	dep. on horn

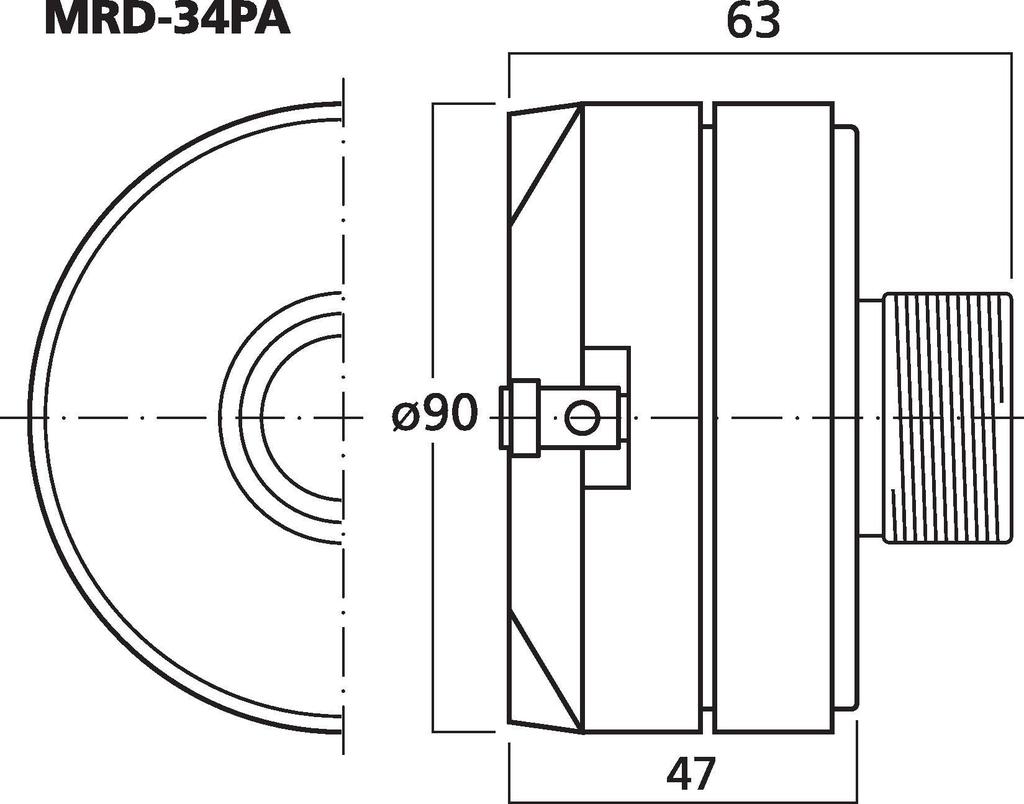

Dimensions	Ø 90 mm x 63 mm
Outside diameter	Ø 90 mm
Width	Ø 90 mm
Height	Ø 90 mm
Depth	63 mm
Colour	silver/black
Admiss. ambient temp.	0-40 °C
Weight	0.945 kg
Packing unit	1
Type of speaker	1"
Packaging dimensions (W x H x L)	0.09 x 0.07 x 0.09 m
Gross weight	0.976 kg
Net weight	0.945 kg

EAN code	4007754214192
Net weight	0.945 kg

Downloads

Accessories for MRD-34PA

Order no.: 0110700

MRH-80

PA horn tweeter for MRD-80

Description:
horn tweeter

Material:
plastic

Frequency range:
2,500-18,000 Hz

Order no.: 0110700

MRH-80

PA horn tweeter for MRD-80

Order no.: 0120470

MRH-83

PA mid-high range horn for MRD-80

Description:
mid-high range horn

Material:
plastic

Frequency range:
1,800-18,000 Hz

Order no.: 0120470

MRH-83

PA mid-high range horn for MRD-80
