Order no.: 0105310

MRD-44PA

Order no.: 0105310

MRD-44PA

PA horn driver, 45 W, 8 Ω

35 mm (1⅜") standard thread
Component of the speakers PAB-115MK2 and PAK-115MK2
Matching replacement voice coil PAB-115/VC available at option
Suitable for horns MRH-83, MRH-170 and MRH-80

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

PA horn driver, 45 W, 8 Ω

35 mm (1⅜") standard thread
Component of the speakers PAB-115MK2 and PAK-115MK2
Matching replacement voice coil PAB-115/VC available at option
Suitable for horns MRH-83, MRH-170 and MRH-80

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z)	8 Ω
Transmission technology	cable

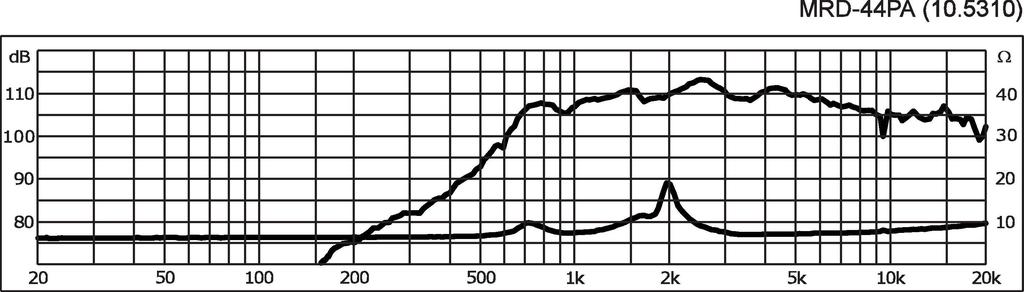

Frequency range	fx-20,000 Hz
Resonant frequency (fs)	2 kHz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	3,500 Hz
Power rating (RMS)	45 W
Peak music power output (MAX)	90 W
SPL	105 dB/W/m
Voice coil diameter	Ø 44.5 mm
Magnet diameter	Ø 110 mm
Mounting cutout	dep. on horn
Mounting depth	dep. on horn

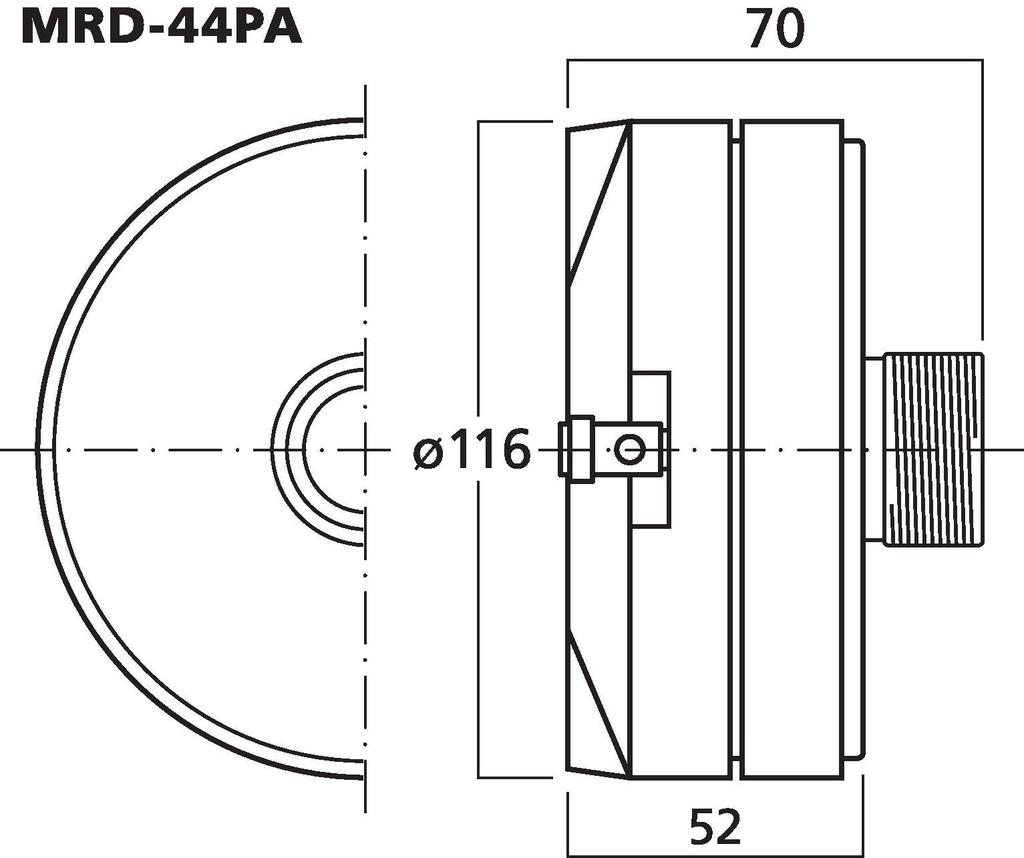

Dimensions	Ø 116 mm x 70 mm
Outside diameter	Ø 116 mm
Width	Ø 116 mm
Height	Ø 116 mm
Depth	70 mm
Colour	silver/black
Admiss. ambient temp.	0-40 °C
Weight	1.472 kg
Packing unit	1
Type of speaker	1"
Packaging dimensions (W x H x L)	0.12 x 0.075 x 0.12 m
Gross weight	1.514 kg
Net weight	1.472 kg

EAN code	4007754214208
Net weight	1.472 kg
