Order no.: 0104360

MRD-80

PA horn driver, 30 W, 8 Ω

PA tweeter driver with 35 mm (1⅜") standard thread
Very compact size
High efficiency
Suitable for horns MRH-83, MRH-170 and MRH-80

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

PA horn driver, 30 W, 8 Ω

PA tweeter driver with 35 mm (1⅜") standard thread
Very compact size
High efficiency
Suitable for horns MRH-83, MRH-170 and MRH-80

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z)	8 Ω
Transmission technology	cable
Frequency range	fx-17,500 Hz
Resonant frequency (fs)	2 kHz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	5,000 Hz
Power rating (RMS)	30 W
Peak music power output (MAX)	60 W
SPL	107 dB/W/m
Voice coil diameter	Ø 25.5 mm
Magnet diameter	Ø 80 mm
Mounting cutout	dep. on horn
Mounting depth	dep. on horn

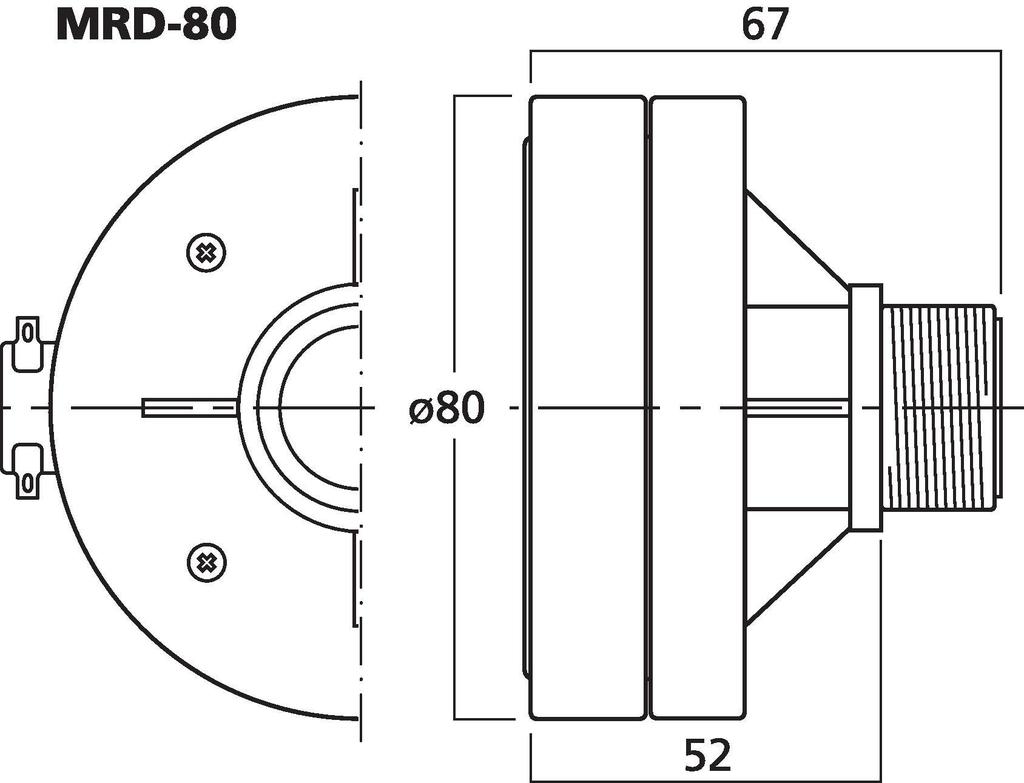

Dimensions	Ø 80 mm x 67 mm
Outside diameter	Ø 80 mm
Width	Ø 80 mm
Height	Ø 80 mm
Depth	67 mm
Colour	black
Admiss. ambient temp.	0-40 °C
Weight	0.71 kg
Packing unit	1
Type of speaker	1"
Packaging dimensions (W x H x L)	0.085 x 0.075 x 0.095 m
Gross weight	0.75 kg
Net weight	0.715 kg

EAN code	4007754171990
Net weight	0.715 kg

Downloads

Accessories for MRD-80

Order no.: 0110700

MRH-80

PA horn tweeter for MRD-80

Description:
horn tweeter

Material:
plastic

Frequency range:
2,500-18,000 Hz

Order no.: 0110700

MRH-80

PA horn tweeter for MRD-80

Order no.: 0120470

MRH-83

PA mid-high range horn for MRD-80

Description:
mid-high range horn

Material:
plastic

Frequency range:
1,800-18,000 Hz

Order no.: 0120470

MRH-83

PA mid-high range horn for MRD-80
