Order no.: 0200630

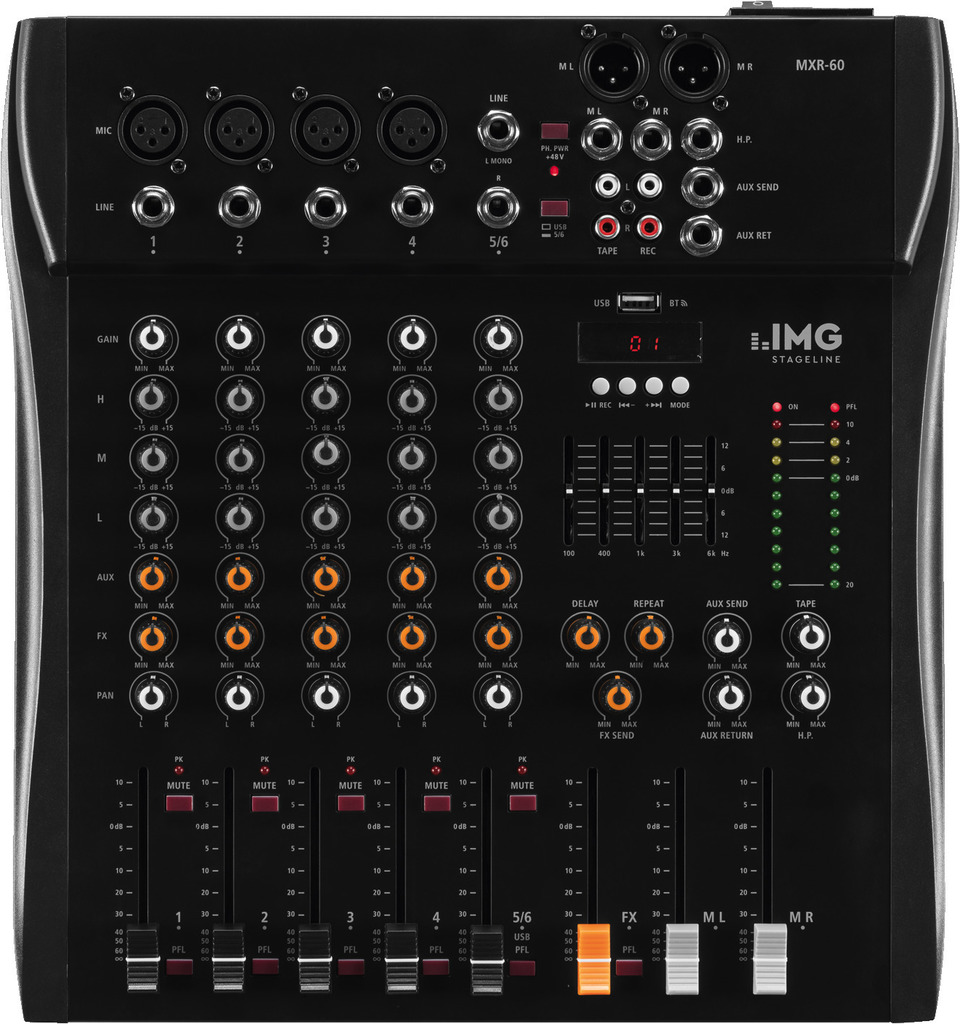

MXR-60

Order no.: 0200630

MXR-60

6-channel audio mixer, with integrated MP3 player and Bluetooth receiver. Integrated USB audio interface (will be identified and addressed as an external sound card) Full-duplex USB port (allows for simultaneous recording and reproduction) for reproduction of digital audio data from a PC and for recording mixings onto a PC 4 mono input channels with gain control, 3-way equalizer and pan pot 1 stereo input channel with 3-way equalizer and balance control MP3 player USB port Bluetooth receiver DSP delay, adjustable Adjustable aux return input and FX send output Tape record/play connections 5-band stereo graphic equalizer +48 V phantom power, can be activated as required Pre-fader listening (PFL) to the stereo input channels via adjustable headphone output Stereo LED level display

continue

About

6-channel audio mixer,

with integrated MP3 player and Bluetooth receiver.

Integrated USB audio interface (will be identified and addressed as an external sound card)
Full-duplex USB port (allows for simultaneous recording and reproduction) for reproduction of digital audio data from a PC and for recording mixings onto a PC
4 mono input channels with gain control, 3-way equalizer and pan pot
1 stereo input channel with 3-way equalizer and balance control
MP3 player
USB port
Bluetooth receiver
DSP delay, adjustable
Adjustable aux return input and FX send output
Tape record/play connections
5-band stereo graphic equalizer
+48 V phantom power, can be activated as required
Pre-fader listening (PFL) to the stereo input channels via adjustable headphone output
Stereo LED level display

Specifications

Input channels	6
Number of mix/mono	4
No. of stereo	1
Mic input	2.2 mV, bal. 4 x XLR
Line input	50 mV (stereo), 1 x 6.3 mm jack L/R 30 mV (mono), 4 x 6.3 mm jack
Tape (play)	290 mV, 1 x RCA L/R
Aux input	420 mV, 1 x 6.3 mm jack L/R
Master output	880 mV, bal. 1 x XLR L/R 880 mV, 1 x 6.3 mm jack L/R
Effect send	9 V, 1 x 6.3 mm jack
Tape (rec)	400 mV, 1 x RCA L/R
Headphones	≥ 8 Ω, 1 x 6.3 mm jack
USB	yes
Bluetooth	yes
Frequency range	20-20,000 Hz
THD	< 0.03%
S/N ratio	> 82 dB(A)
Equalizer bass	±15 dB/80 Hz
Equalizer midrange	±15 dB/2.5 kHz
Equalizer treble	±15 dB/12 kHz
equalizer	5-band equalizer
Phantom power	+48 V
Power supply	˜ 230 V/50 Hz/20 VA
Mains voltage	~ 230 V
Mains frequency	50 Hz
Power consumption, operation	20 VA
Admiss. ambient temp.	0-40 °C
Dimensions	324 x 53 x 340 mm
Width	324 mm
Height	53 mm
Depth	340 mm
Weight	2.9 kg
Packing dimensions (W x H x L)	0.37 x 0.405 x 0.09 m
Gross weight	3.51 kg
Net weight	2.9 kg
