Order no.: 1001052

NAC3FXXA-W-S

Order no.: 1001052

NAC3FXXA-W-S

NEUTRIK POWERCON plug Complies with safety requirements of IEC EN 60320-1, VDE-certified For mains connection up to ˜ 250 V/16 A Versions for mains input Connections for ground, phase and neutral conductor Robust version with latching device, all-insulated contacts and cable inlet with self-adjusting clamps Self-extinguishing according to UL 94V-0

continue

About

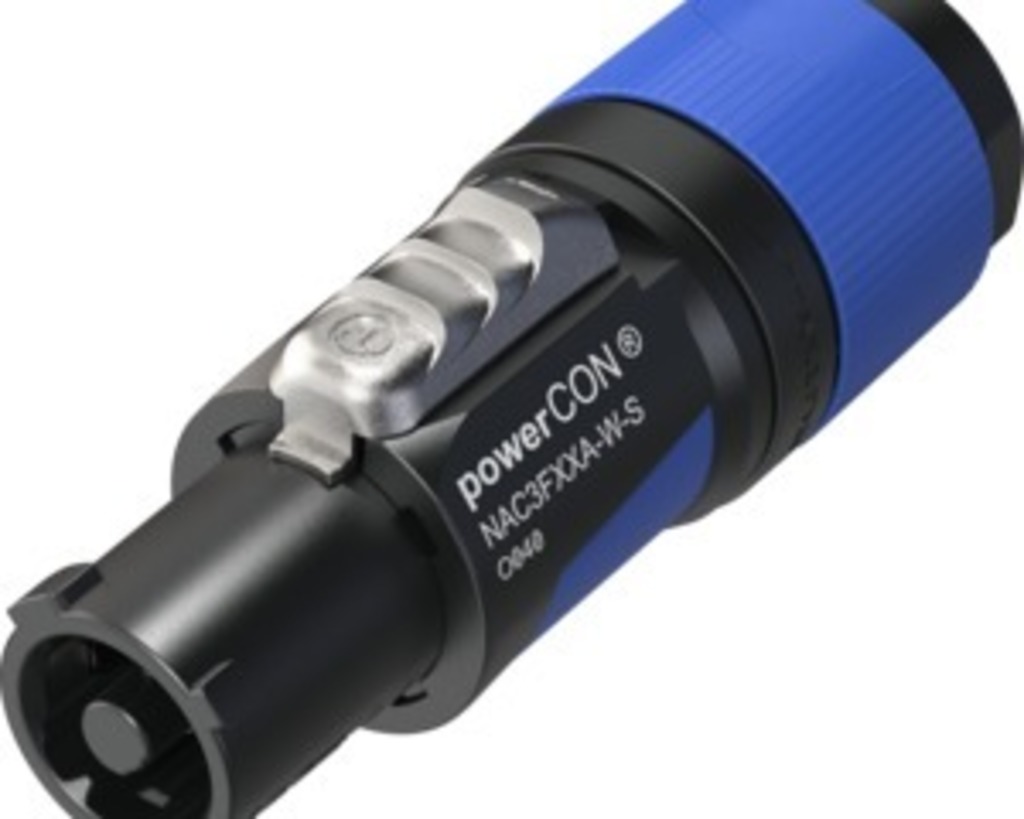

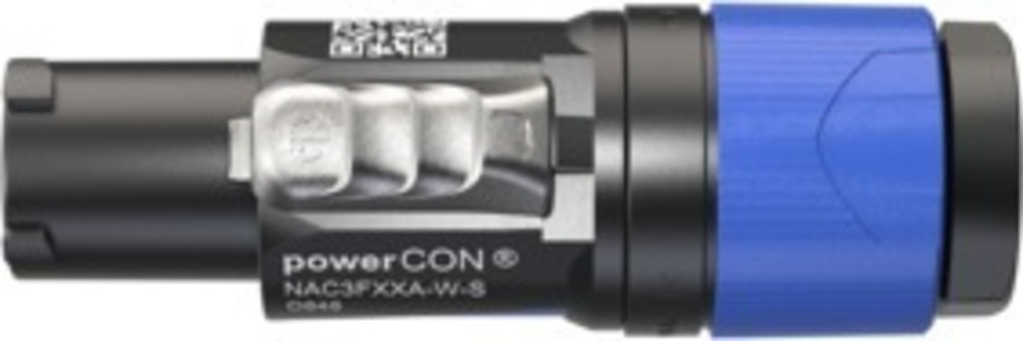

NEUTRIK POWERCON plug

Complies with safety requirements of IEC EN 60320-1, VDE-certified
For mains connection up to ˜ 250 V/16 A
Versions for mains input
Connections for ground, phase and neutral conductor
Robust version with latching device, all-insulated contacts and cable inlet with self-adjusting clamps
Self-extinguishing according to UL 94V-0

Specifications

Description	plug, input
Type	PowerCon, input
Quantity	1
Features	latching device
Colour/colour coding	black/blue
Power rating	˜ 250 V/16 A
Insulating resistance	10 GΩ
Certification	UL, cUL, VDE
Pole number	3
Cable inlet	Ø 6-12 mm
Connection	screwed contact
Strain relief	yes
Material	silver-plated copper contacts, plastic
Admiss. ambient temp.	-33-+80 °C
Diameter	Ø 26.5 mm
Length	79-82.5 mm
Weight	35 g
