Order no.: 0348650

NAUSBW

Order no.: 0348650

NAUSBW

USB feed-through panel jack, nickel-plated,
for integrating computer-based devices into audio and video systems as well as for audio networks like M-LAN, Cobra Net, etc.
  • Reversible adapter for feed-through direction: Type-A/Type-B or Type-B/Type-A
  • Ground connection between USB jack and body
  • D series standard

About

USB feed-through panel jack, nickel-plated,
for integrating computer-based devices into audio and video systems as well as for audio networks like M-LAN, Cobra Net, etc.
  • Reversible adapter for feed-through direction: Type-A/Type-B or Type-B/Type-A
  • Ground connection between USB jack and body
  • D series standard

Specifications

Description panel jack
Type NEUTRIK USB feed-through
Quantity 1
Features USB Type-A/USB Type-B
Colour/colour coding nickel-plated
Connection 2 x USB
Admiss. ambient temp. -25 °C to +85 °C

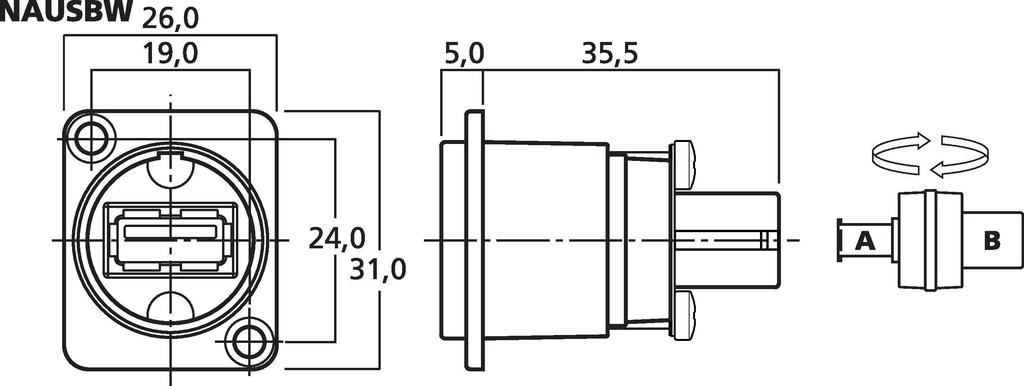

Dimensions 26 x 31 x 40.5 mm
Weight 30 g
Other features reversible insert
EAN code 7613187005008
Net weight 0.03 kg
