Order no.: 0346890

NE-8FDP

P_NEUTRIK

Order no.: 0346890

NE-8FDP

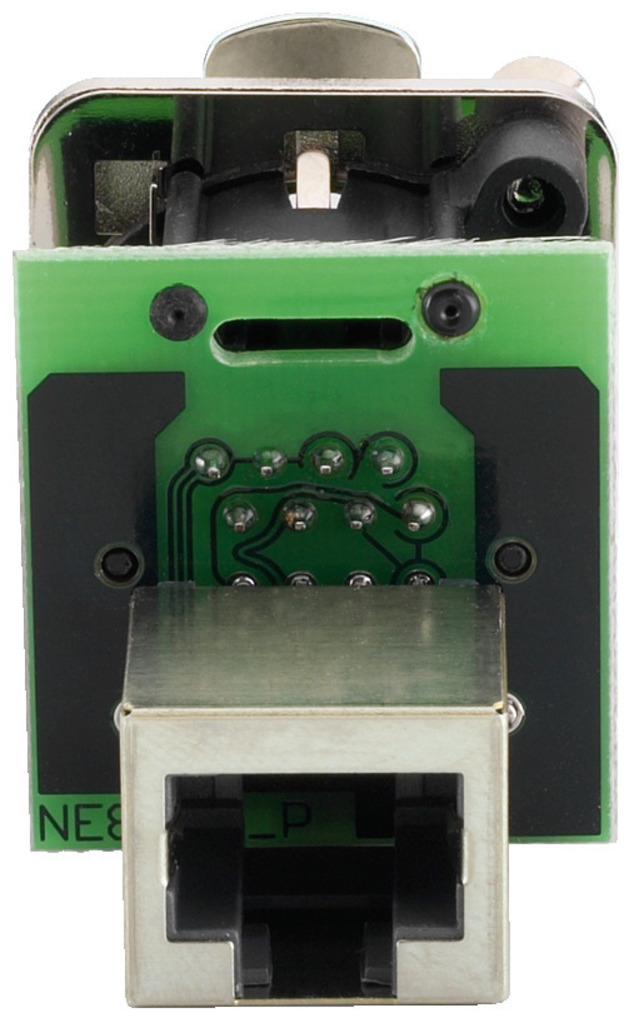

EtherCon feed-through panel jack, nickel-plated,

for industrial use and Ethernet cabling on stage.

RJ45 jack with strain relief
RJ45 jack in patch version
D series
Complies with Cat. 5 requirements according to TIA/EIA and ISO/IEC

Manufacturer information:

Neutrik AG
Im alten Ried 143
9494 Schaan
Liechtenstein
neutrik@neutrikgroup.com

continue

About

EtherCon feed-through panel jack, nickel-plated,

for industrial use and Ethernet cabling on stage.

RJ45 jack with strain relief
RJ45 jack in patch version
D series
Complies with Cat. 5 requirements according to TIA/EIA and ISO/IEC

Manufacturer information:

Neutrik AG
Im alten Ried 143
9494 Schaan
Liechtenstein
neutrik@neutrikgroup.com

Specifications

Description	panel jack
Type	NEUTRIK EtherCon feed through
Quantity	1
Features	strain relief, patch version, Cat. 5 standard
Colour/colour coding	nickel-plated
Connection	2 x RJ-45
Strain relief	yes
Material	metal
Admiss. ambient temp.	-30 °C to +80 °C

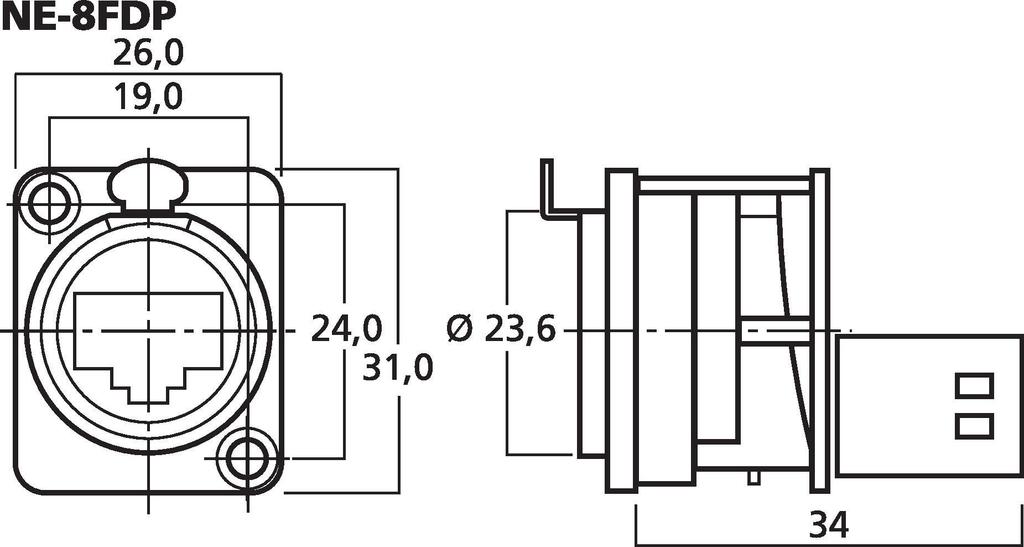

Dimensions	26 x 31 x 34 mm
Weight	0.024 kg
Other features	D series

EAN code	7613187004919
Net weight	0.024 kg
