Order no.: 0344080

NE-8FDYC6B

Order no.: 0344080

EtherCon panel jacks, black,

for industrial use and Ethernet cabling on stage.

Complies with Cat. 6 requirements according to TIA/EIA and ISO/IEC, data rate up to 10 Gbps
Weatherproof
RJ45 jack with tool-free and gas-tight insulation displacement connectors (IDC)
Shielded system
Earthing jumper with selectable grounding option
D series standard

Manufacturer information:

Neutrik AG
Im alten Ried 143
9494 Schaan
Liechtenstein
neutrik@neutrikgroup.com

continue

EtherCon panel jacks, black,

for industrial use and Ethernet cabling on stage.

Complies with Cat. 6 requirements according to TIA/EIA and ISO/IEC, data rate up to 10 Gbps
Weatherproof
RJ45 jack with tool-free and gas-tight insulation displacement connectors (IDC)
Shielded system
Earthing jumper with selectable grounding option
D series standard

Manufacturer information:

Neutrik AG
Im alten Ried 143
9494 Schaan
Liechtenstein
neutrik@neutrikgroup.com

Description	panel jack
Type	NEUTRIK EtherCon
Quantity	1
Features	insulation displacement contacts (IDC), selectable grounding option, Cat. 6
Colour/colour coding	black
Connection	RJ45 jack
Admiss. ambient temp.	-10 °C to +60 °C

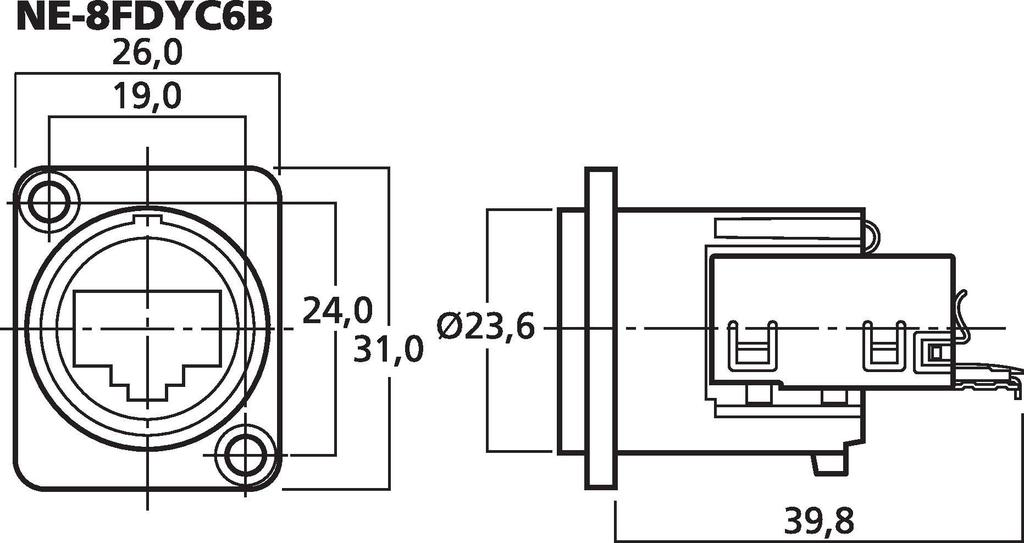

Dimensions	26 x 31 x 39.8
Weight	31 g
Other features	D series
