Order no.: 0344250

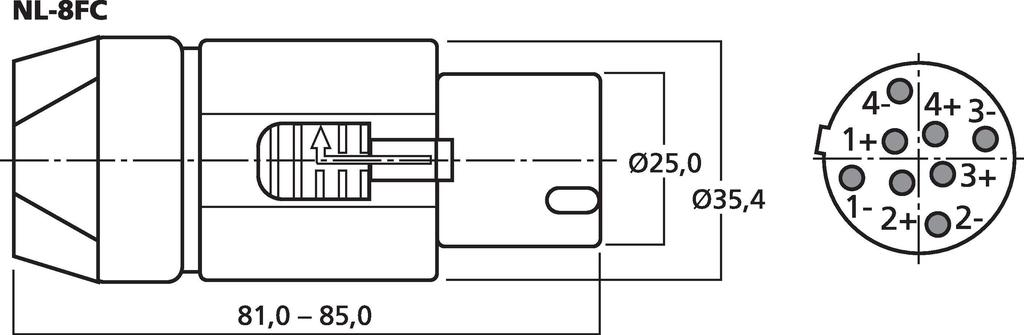

NL-8FC

Order no.: 0344250

NL-8FC

NEUTRIK SPEAKON Connectors Series of Speakon connectors for professional speaker connection technology. Robust design, latching device, all-insulated contacts, cable inlet with self-adjusting clamps. Contact resistance: < 2 mΩ Current rating: 50 A (music signal) Self-extinguishing according to UL 94V-0 NEUTRIK SPEAKON plug 8-pole screw terminal contact for litz wires up to 4 mm2 For cables: Ø 8-20 mm

continue

About

NEUTRIK SPEAKON Connectors

Series of Speakon connectors for professional speaker connection technology. Robust design, latching device, all-insulated contacts, cable inlet with self-adjusting clamps.

Contact resistance: < 2 mΩ
Current rating: 50 A (music signal)
Self-extinguishing according to UL 94V-0

NEUTRIK SPEAKON plug

8-pole screw terminal contact for litz wires up to 4 mm²
For cables: Ø 8-20 mm

Specifications

Description	plug
Type	NEUTRIK SPEAKON
Quantity	1
Features	latching device
Colour/colour coding	blue, black
Certification	UL94V0
Pole number	8
Cable inlet	Ø 8-20 mm
Suitable cable cross section	4 mm²
Connection	4-pole screw contact
Admiss. ambient temp.	0-40 °C
Weight	65 g
