Order no.: 1001017

NL2FXX-W-S

Order no.: 1001017

NL2FXX-W-S

NEUTRIK SPEAKON Connectors

Series of Speakon connectors for professional speaker connection technology. Robust design, latching device, all-insulated contacts, cable inlet with self-adjusting clamps.

Contact resistance: ≤ 2 mΩ
Current rating: 250 V (music signal)
Self-extinguishing according to UL 94 V-0

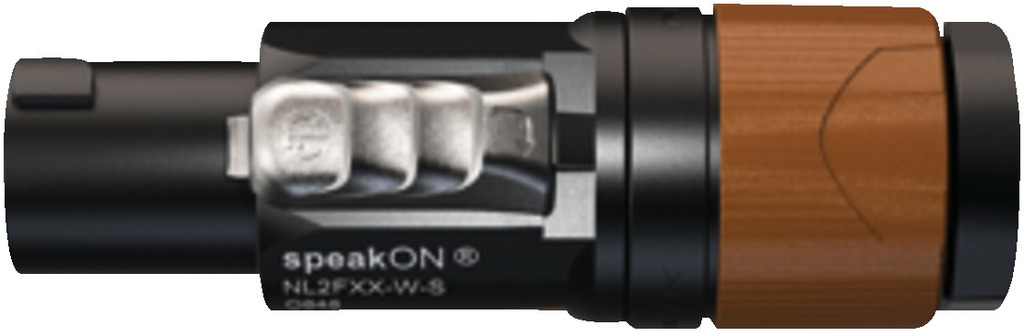

NEUTRIK SPEAKON plug

2-pole screwed contact for litz wires up to 4 mm²
For cables: Ø 6-12 mm

Manufacturer information:

Neutrik AG
Im alten Ried 143
9494 Schaan
Liechtenstein
neutrik@neutrikgroup.com

continue

About

NEUTRIK SPEAKON Connectors

Series of Speakon connectors for professional speaker connection technology. Robust design, latching device, all-insulated contacts, cable inlet with self-adjusting clamps.

Contact resistance: ≤ 2 mΩ
Current rating: 250 V (music signal)
Self-extinguishing according to UL 94 V-0

NEUTRIK SPEAKON plug

2-pole screwed contact for litz wires up to 4 mm²
For cables: Ø 6-12 mm

Manufacturer information:

Neutrik AG
Im alten Ried 143
9494 Schaan
Liechtenstein
neutrik@neutrikgroup.com

Specifications

Description	plug
Type	NEUTRIK SPEAKON
Quantity	1
Features	latching device
Colour/colour coding	black, brown
Certification	UL 94 V-0
Pole number	2
Cable inlet	Ø 6-12 mm
Suitable cable cross section	4 mm²
Connection	2-pole screwed contact
Admiss. ambient temp.	-33-+80 °C
Weight	33 g
Other features	IP20
