About

NEUTRIK SPEAKON Connectors

Series of Speakon connectors for professional speaker connection technology. Robust design, latching device, all-insulated contacts, cable inlet with self-adjusting clamps.

Contact resistance: < 2 mΩ
Current rating: 50 A (music signal)
Self-extinguishing according to UL 94V-0

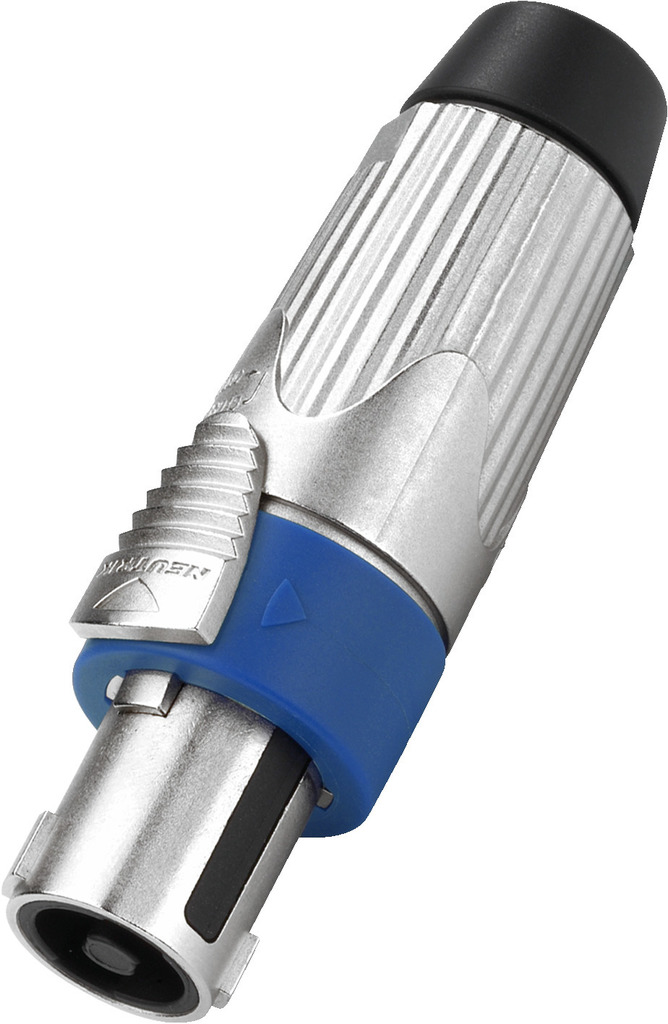

NEUTRIK SPEAKON plug

Metal body
Weatherproof when installed
4-pole solder contact for litz wires up to 6 mm²
For cables: Ø 9-16 mm

Specifications

Description	plug
Type	NEUTRIK SPEAKON
Quantity	1
Features	weatherproof when installed
Colour/colour coding	silver/blue
Power rating	250 V/40 A
Insulating resistance	> 10 GΩ
Dielectric strength	DC 4 kV
Certification	UL 94 HB, IEC 68-2-20
Pole number	4
Cable inlet	Ø 9-16 mm
Suitable cable cross section	6 mm²
Connection	solder contacts
Strain relief	self-adjusting clamps
Material	nickel
Admiss. ambient temp.	-30-+80 °C
Weight	80 g
