Order no.: 1000868

NLT4MPXX

Order no.: 1000868

NLT4MPXX

NEUTRIK SPEAKON Connectors

Series of Speakon connectors for professional speaker connection technology. Robust design, latching device, all-insulated contacts, cable inlet with self-adjusting clamps.

Contact resistance: < 2 mΩ
Current rating: 50 A (music signal)
Self-extinguishing according to UL 94V-0

NEUTRIK SPEAKON panel jack

Weatherproof when plugged in
4 poles
With metal plate

Manufacturer information:

Neutrik AG
Im alten Ried 143
9494 Schaan
Liechtenstein
neutrik@neutrikgroup.com

continue

About

NEUTRIK SPEAKON Connectors

Series of Speakon connectors for professional speaker connection technology. Robust design, latching device, all-insulated contacts, cable inlet with self-adjusting clamps.

Contact resistance: < 2 mΩ
Current rating: 50 A (music signal)
Self-extinguishing according to UL 94V-0

NEUTRIK SPEAKON panel jack

Weatherproof when plugged in
4 poles
With metal plate

Manufacturer information:

Neutrik AG
Im alten Ried 143
9494 Schaan
Liechtenstein
neutrik@neutrikgroup.com

Specifications

Description	panel jack
Type	NEUTRIK SPEAKON
Quantity	1
Features	weatherproof when plugged in, metal plate
Colour/colour coding	silver
Certification	UL 94 V-0
Pole number	4
Connection	4-pole SPEAKON jack
Material	plastic
Admiss. ambient temp.	-30 °C to +80 °C

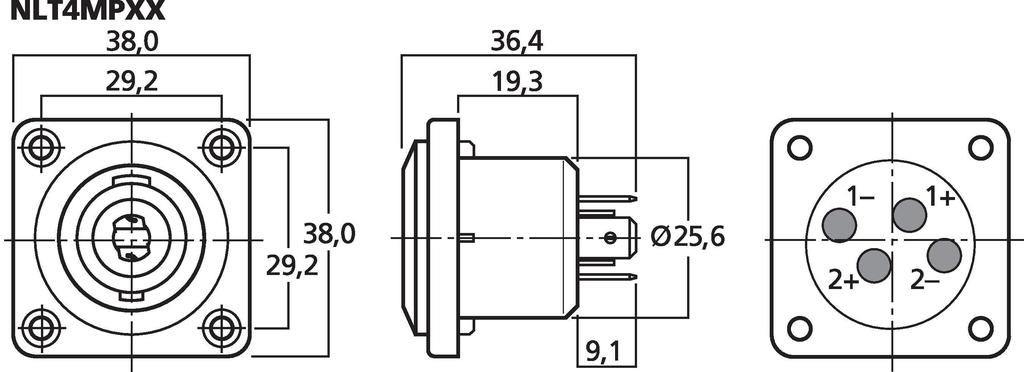

Dimensions	38 x 38 x 36.4 mm
Weight	53 g
