Order no.: 0160650

NR-33KS

Order no.: 0160650

NR-33KS

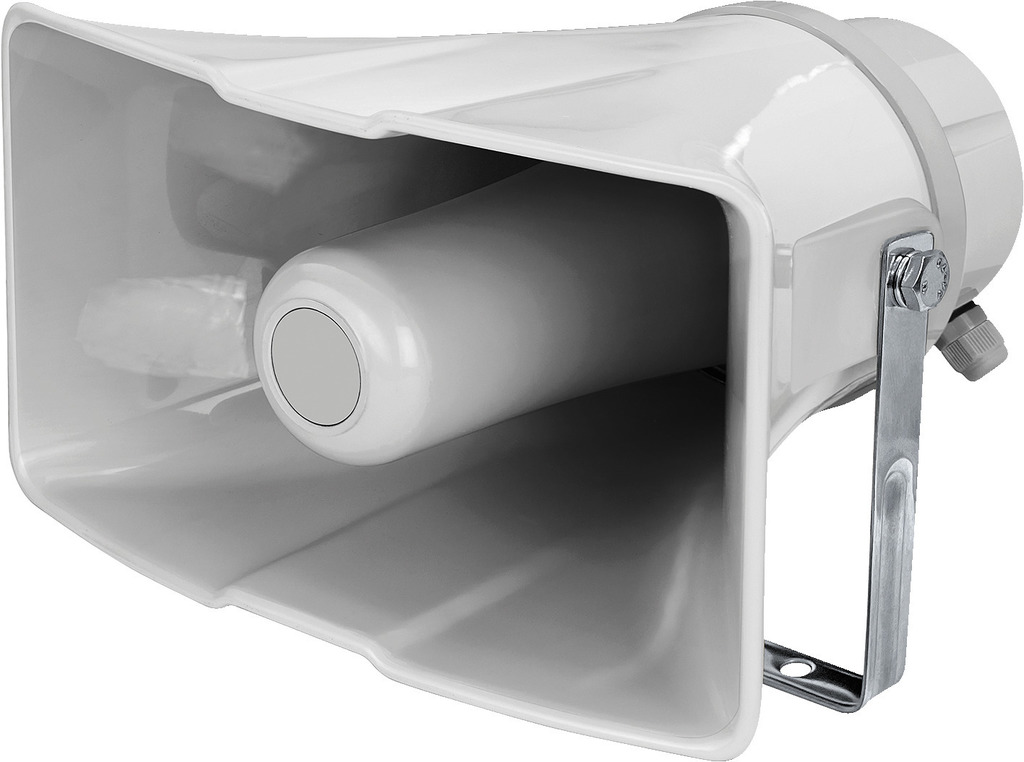

Weatherproof horn speaker
  • IP66 tested, protected against powerful water jets
  • 8 Ω speaker system
  • Suitable for general indoor and outdoor applications
  • Robust plastic housing
  • Mounting bracket and screws made of stainless steel
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

About

Weatherproof horn speaker
  • IP66 tested, protected against powerful water jets
  • 8 Ω speaker system
  • Suitable for general indoor and outdoor applications
  • Robust plastic housing
  • Mounting bracket and screws made of stainless steel
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Active/passive passive
Transmission technology cable
Total power rating 25 W
Power rating (RMS) 12 W
Impedance 8 Ω

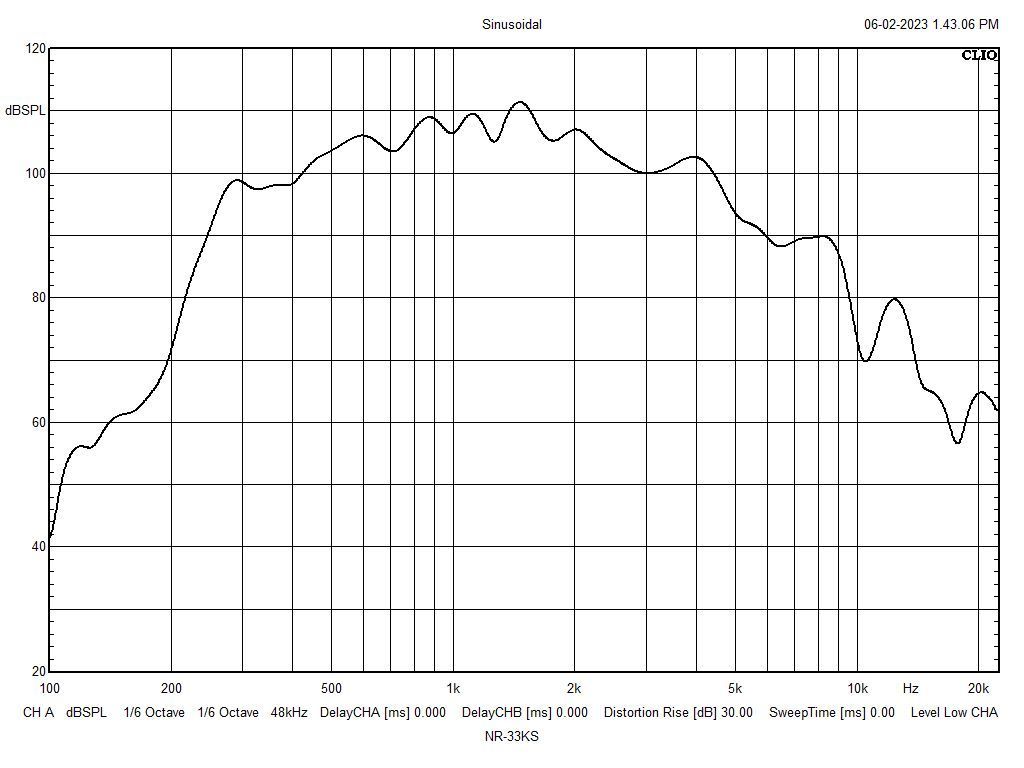

Frequency range 275-7,000 Hz
Number of speakers 1
SPL 106 dB/W/m

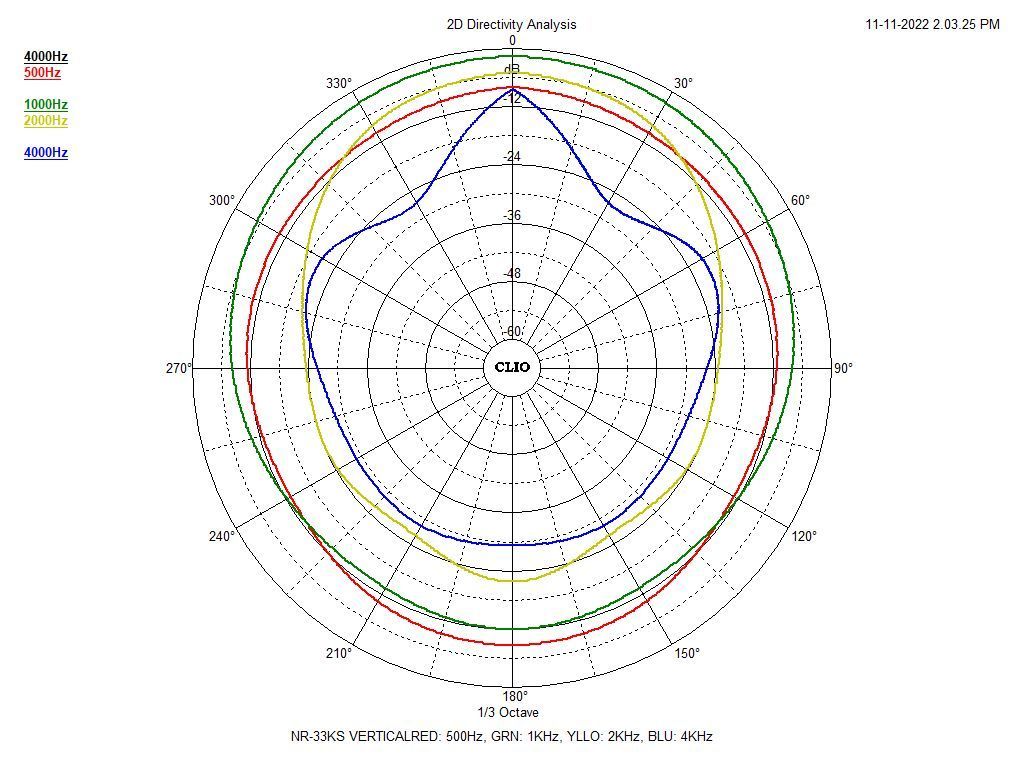

Radiation angle/beam angle H: 100°/V: 50°
Radiation angle, horizontal 100°
Radiation angle, vertical 50°
Housing material plastic
Colour light grey
Mounting device stainless steel mounting bracket
Protection class IP66
Admiss. ambient temp. -20 °C to +50 °C
Dimensions 250 x 145 x 272 mm
Width 250 mm
Height 145 mm
Depth 272 mm
Weight 1.5 kg
Inputs cable connection
Replacement voice coil IT-230/VC
Other features weatherproof
Packaging dimensions (W x H x L) 0.16 x 0.29 x 0.26 m
Gross weight 1.925 kg
Net weight 1.53 kg
EAN code 4007754031218
Net weight 1.53 kg

Accessories for NR-33KS

For:
IT-20, IT-30, IT-35, UHC-30, NR-33KS
Total power rating:
15 W (IT-20)

20 W (IT-30)

25 W (IT-35)

40 W (UHC-30)

25 W (NR-33KS)

Power rating (RMS):
15/10/5/2,5 W (IT-20)

20/15/10/5 W (IT-30)

25/20/15/10/5 W (IT-35)

20 W (UHC-30)

12 W (NR-33KS)

Order no.: 0160750
Replacement voice coil
Description:
pole mount
Type:
V2A
Colour:
stainless steel
Order no.: 0163360
Pole mount kit for horn speakers or cameras, V2A
Intended use:
signal, 100 V PA, alarm, communication
Cable specification:
J-Y(ST)Y
Length:
100 m
Order no.: 0111340
Signal line, type J-Y(St)Y, 4 x 0.5 mm2, 100 m
