Order no.: 0172970

PA-102

Order no.: 0172970

PA-102

Mono PA mixing amplifier, 8.5 W

1 adjustable microphone input
1 adjustable line input
Supplied with hand-held push-to-talk microphone
Siren function via push-button
Metal housing
Supplied with mounting brackets
12 V battery operation

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Safety Notes and Warning Messages

The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

continue

About

Mono PA mixing amplifier, 8.5 W

1 adjustable microphone input
1 adjustable line input
Supplied with hand-held push-to-talk microphone
Siren function via push-button
Metal housing
Supplied with mounting brackets
12 V battery operation

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Safety Notes and Warning Messages

Specifications

Peak output power	15 W
Power rating	8.5 W
Channels	1
Inputs	3.4 mV/2.2 kΩ (mic), 240 mV/11 kΩ (line)
Frequency range	20-20,000 Hz
S/N ratio	70 dB
THD	< 0.3%
Power supply	DC 12 V/2 A
Operating voltage (possible alternative)	DC 12 V
Power supply (possible alternative)	DC 2 A
Admiss. ambient temp.	0-40 °C
Width	151 mm
Height	41 mm
Depth	115 mm
Weight	410 g

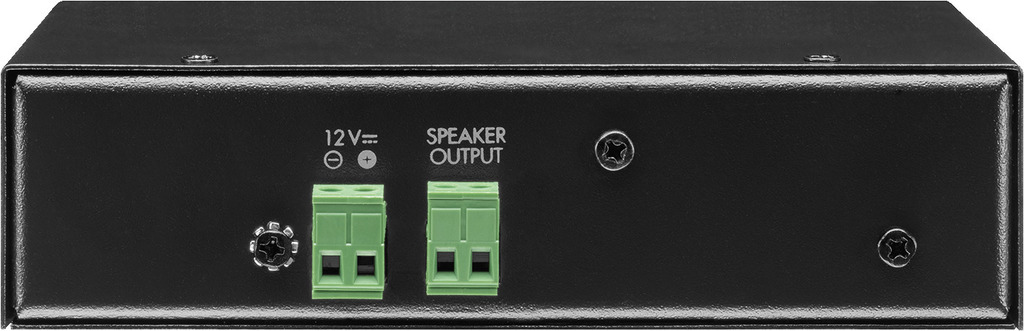

Connections	1 x 6.3 mm jack (mic input), 1 x RCA L/R (line input), screw terminal (speakers), screw terminal (power supply)
Packaging dimensions (W x H x L)	0.13 x 0.12 x 0.205 m
Gross weight	0.76 kg
Net weight	0.656 kg
