Order no.: 0174660

PA-24FMM

P1544
Order no.: 0174660

PA-24FMM

Insertion module for emergency announcements,
with integrated voice memory.
  • For PA mixing amplifiers with insertion compartment
  • Hand-held microphone with operational monitoring
  • Alarm input for activation
  • Integrated digital voice memory (60 seconds max.) with microphone input or line input for recording messages
  • Automatic reproduction possible of a previously recorded voice message
  • Siren emits an acoustic signal for 10 seconds when alarm is triggered
  • Adjustable headphone connection
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety and warning notices
Only use the device indoors and protect it from dripping and splashing water, high humidity and heat (permissible operating temperature range 0 - 40 °C).
Do not operate the appliance if there is visible damage to the appliance, if a defect is suspected after a fall or similar, or if malfunctions occur. Always return the appliance to a specialised workshop for repair.
If the appliance is to be taken out of service permanently, hand it over to a local recycling centre for environmentally friendly disposal.

About

Insertion module for emergency announcements,
with integrated voice memory.
  • For PA mixing amplifiers with insertion compartment
  • Hand-held microphone with operational monitoring
  • Alarm input for activation
  • Integrated digital voice memory (60 seconds max.) with microphone input or line input for recording messages
  • Automatic reproduction possible of a previously recorded voice message
  • Siren emits an acoustic signal for 10 seconds when alarm is triggered
  • Adjustable headphone connection
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety and warning notices
Only use the device indoors and protect it from dripping and splashing water, high humidity and heat (permissible operating temperature range 0 - 40 °C).
Do not operate the appliance if there is visible damage to the appliance, if a defect is suspected after a fall or similar, or if malfunctions occur. Always return the appliance to a specialised workshop for repair.
If the appliance is to be taken out of service permanently, hand it over to a local recycling centre for environmentally friendly disposal.

Specifications

Description insertion module for emergency announcements
Type with integrated voice memory
Colour black
Suitable for PA mixing amplifiers with insertion compartment
Power supply via amplifier
Admiss. ambient temp. 0-40 °C
Dimensions 195 x 40 x 177 mm
Weight 600 g
Connections 1 x RCA L/R (line in),

1 x 6.3 mm jack (headphones)

Other features including hand-held microphone
Packing unit 1
Packaging dimensions (W x H x L) 0.27 x 0.09 x 0.22 m
Gross weight 0.86 kg
Net weight 0.695 kg
EAN code 4007754244298
Net weight 0.695 kg

Accessories for PA-24FMM

Peak output power:
170 W
Power rating:
120 W
Power rating at 4 Ω:
120 W
Order no.: 0170780
5-zone mono PA mixing amplifiers, 120 W
Peak output power:
170 W
Power rating:
120 W
Power rating at 4 Ω:
120 W
Order no.: 0170710
4-zone mono PA mixing amplifier
Description:
dual module extension
Colour:
black
Suitable for:
insertion modules of the PA series
Order no.: 0248160
Dual module extension
Peak output power:
340 W
Power rating:
240 W
Power rating at 4 Ω:
240 W
Order no.: 0170790
5-zone mono PA mixing amplifier, 240 W
Peak output power:
340 W
Power rating:
240 W
Power rating at 8 Ω:
240 W
Order no.: 0243140
5-zone mono PA mixing amplifier, 240 W
Peak output power:
680 W
Power rating:
480 W
Power rating at 8 Ω:
480 W
Order no.: 0243150

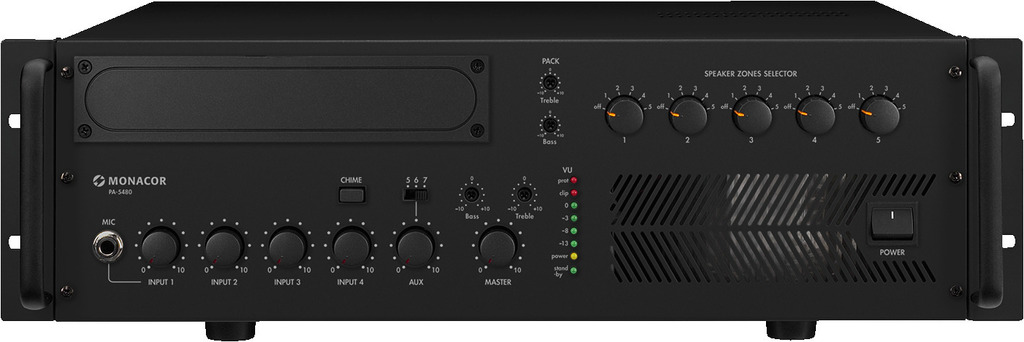

5-zone mono PA mixing amplifier, 480 W
Peak output power:
340 W
Power rating:
240 W
Power rating at 4 Ω:
240 W
Order no.: 0172180
6-zone mono PA mixing amplifier, 240 W
Peak output power:
680 W
Power rating:
480 W
Power rating at 4 Ω:
480 W
Order no.: 0172190

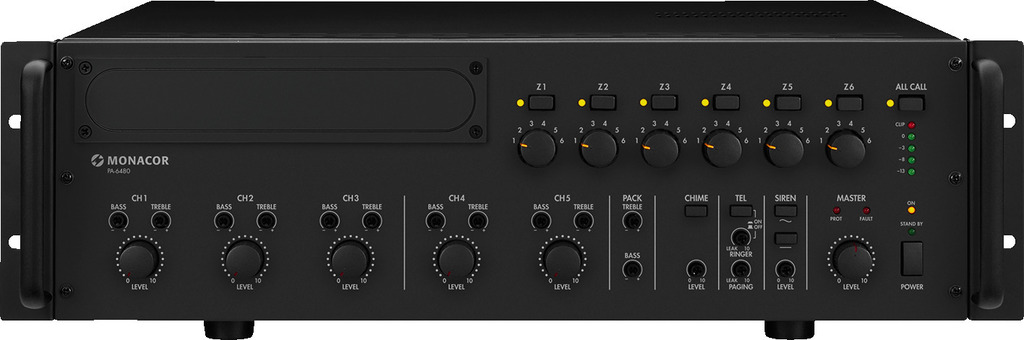

6-zone mono PA mixing amplifier, 480 W
Peak output power:
850 W
Power rating:
600 W
Power rating at 4 Ω:
600 W
Order no.: 0172390

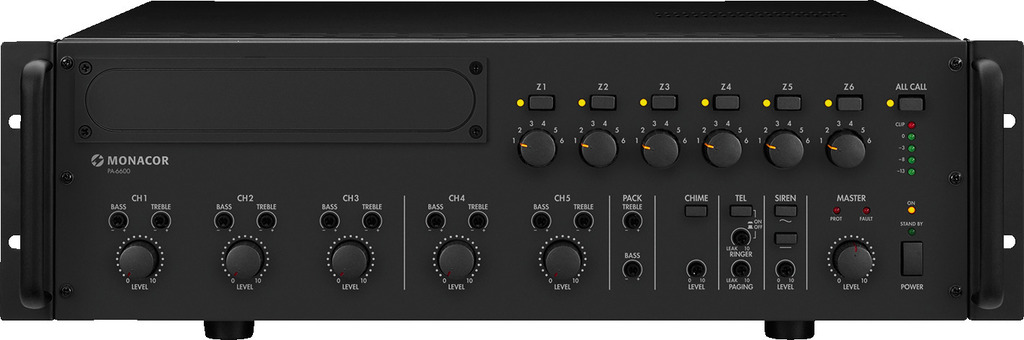

6-zone mono PA mixing amplifier, 600 W
