About
4-zone multifunctional mixing amplifier,
class D technology with DSP and professional features for general multi-room PA applications.

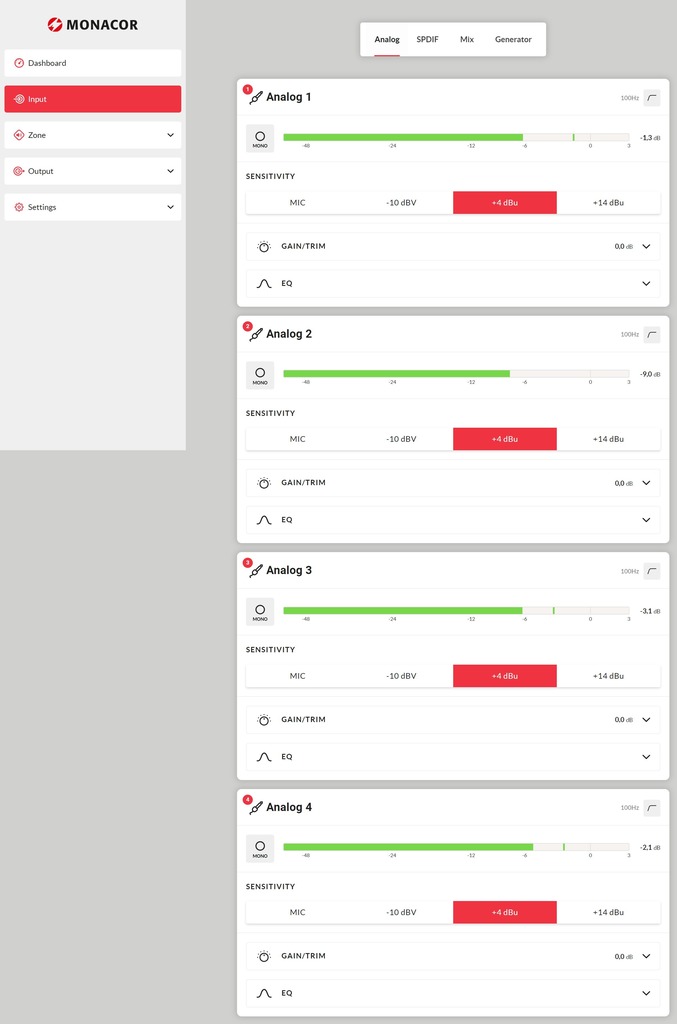

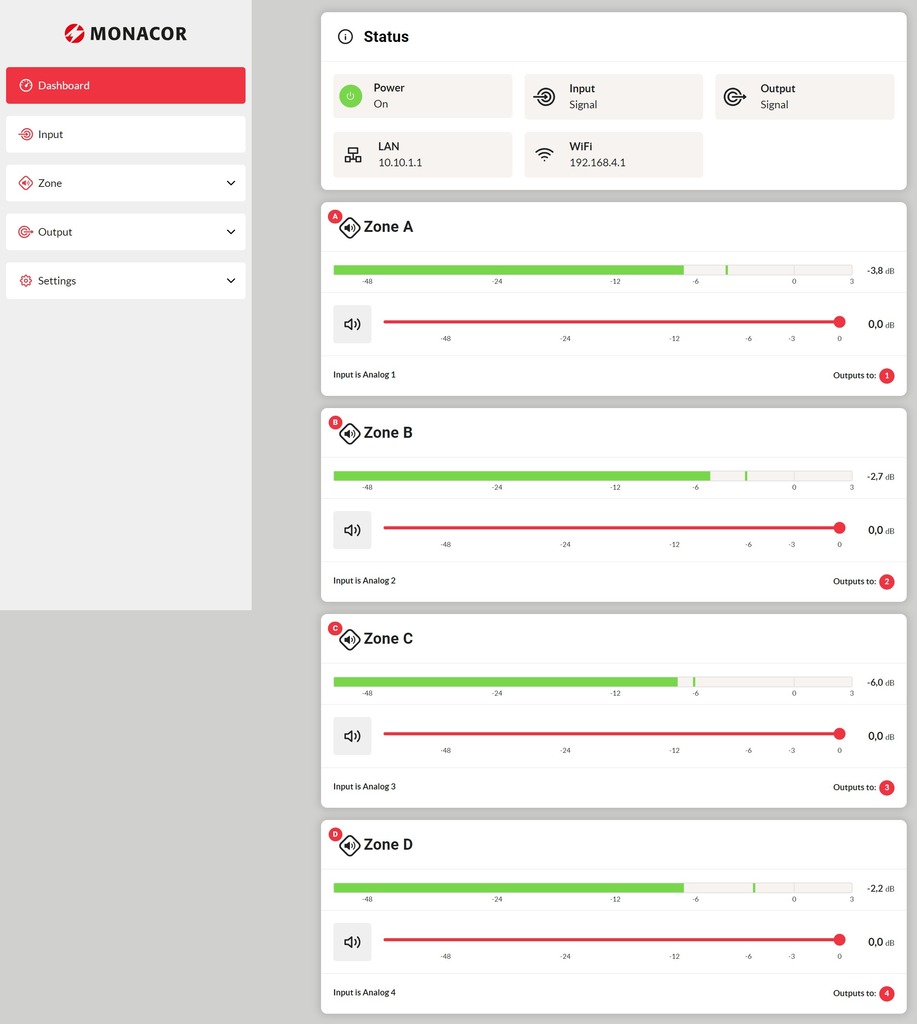

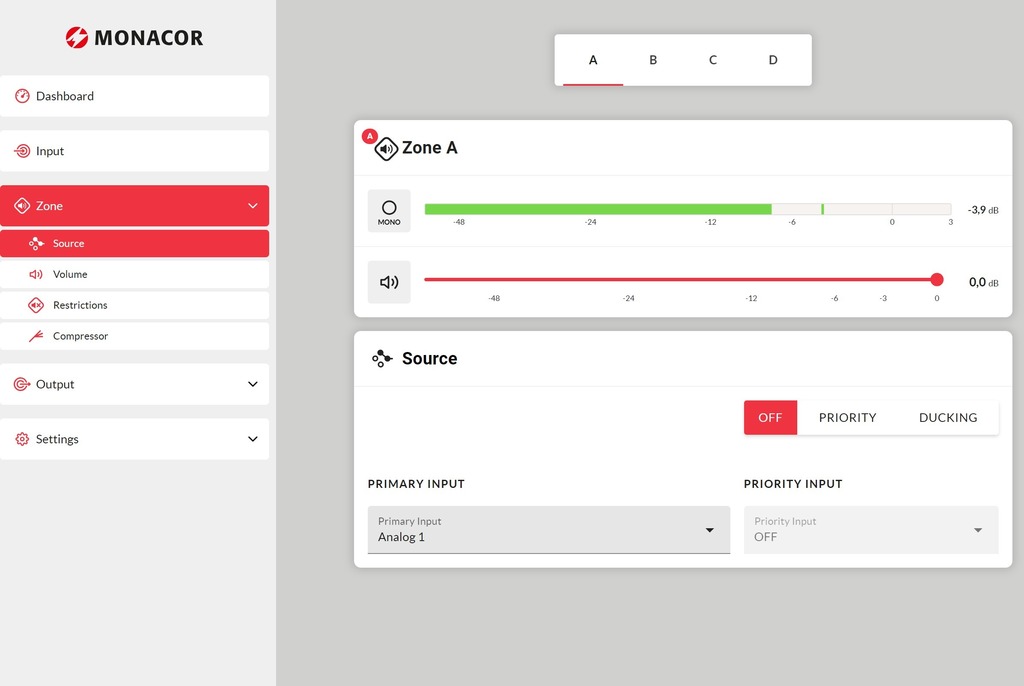

Clearly arranged graphical user interface HTML5 with extensive functions. Convenient operation via web browser regardless of the operating system used by the end-user device (PC, Mac, iOS, Android, etc.).
Clearly arranged graphical user interface HTML5 with extensive functions. Convenient operation via web browser regardless of the operating system used by the end-user device (PC, Mac, iOS, Android, etc.).
- 4 x 125 W per zone (4/8 Ω) or 2 x 250 W (100 V)
- 100 V or 4/8 Ω operation

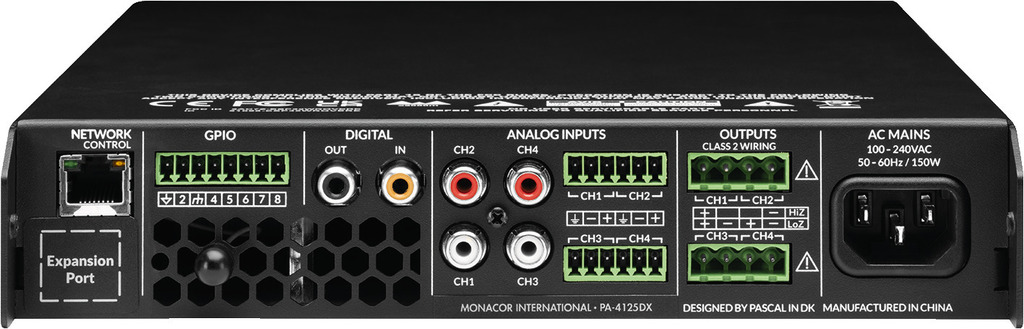

- 4 analogue inputs mic/line via plug-in screw terminal (bal.) or RCA jacks
- 1 digital input/output via S/PDIF RCA jacks
- 4 zone outputs (4/8 Ω) or 2 zone outputs (100 V) via plug-in screw terminal
- GPIO connection for wall modules, external volume control, external mute switch or power switch, etc.
- Network connection via LAN or WLAN
- Convenient operation and configuration via user interface HTML5

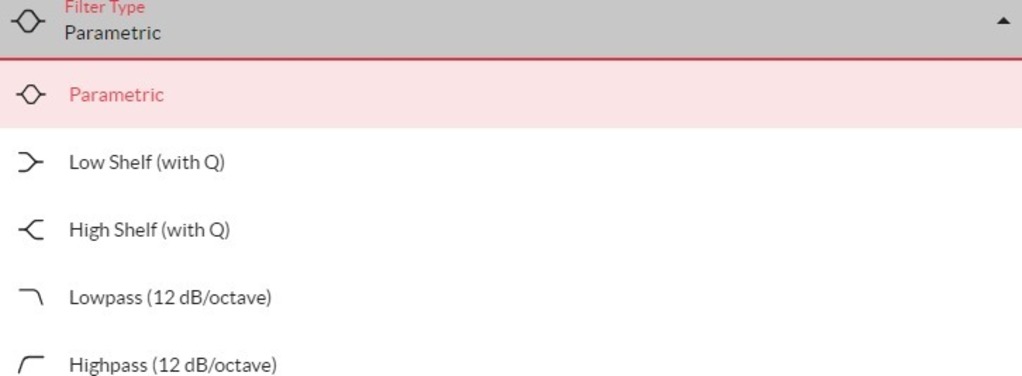

- Various high pass/low pass filters
- Parametric equalizer

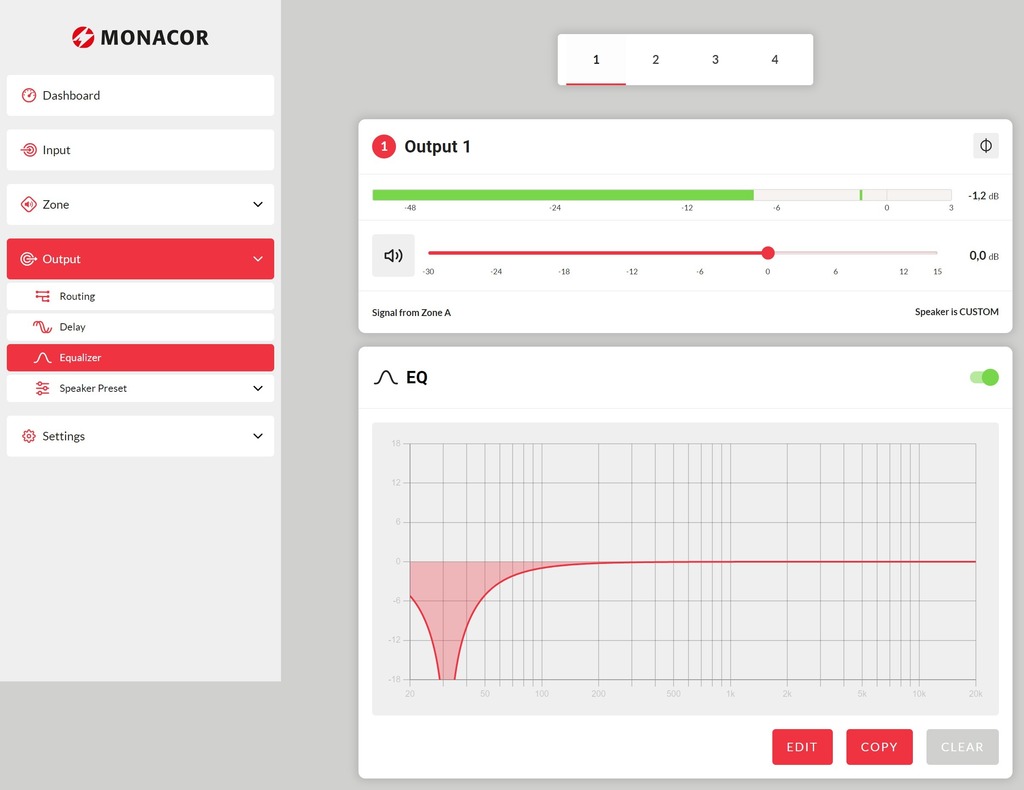

- Output with separate FIR filters
- Speaker matching: 10 ms
- Switchable output phase
- Adjustable compressor/limiter
- Adjustable delay
- Mix inputs
- Talkover with priority routing
- Built-in sine wave noise generator

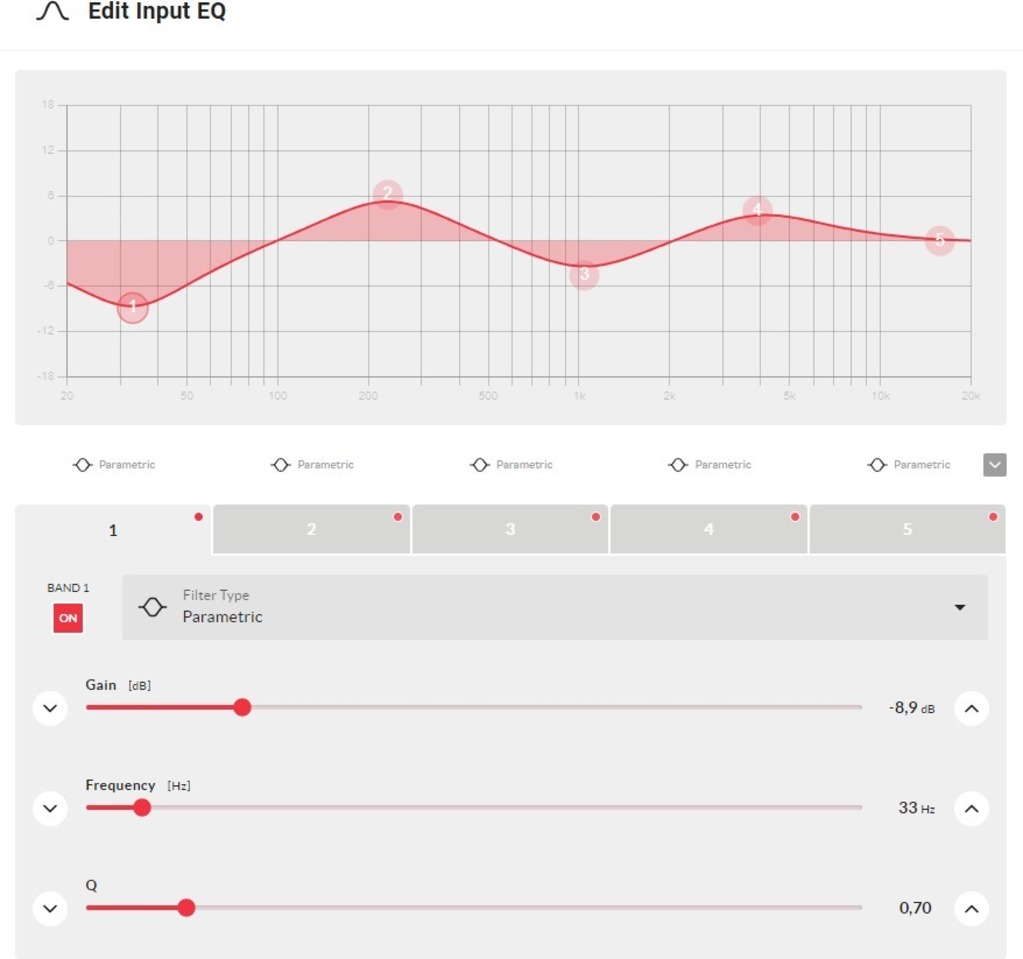

- Parametric 5-band equalizer for input
- Protected against short circuit, DC voltage overload, undervoltage, excess temperature and overload
