Order no.: 0179240

PAS-254D

Order no.: 0179240

PAS-254D

Portable amplifier system, for processions and other mobile applications. Very comfortable to wear and great mobility due to backpack method 1 speaker with 4 speaker chassis Class D power amplifier Integrated 2-channel multifrequency wireless receiver (TXA-1822MR) Bluetooth receiver for wireless connection of mobile audio devices Adjustable USB/SD card player with connection for external storage media Built-in rechargeable lead gel battery 12 V/7.2 Ah (operating time: up to 7 hours) Compartment for spare rechargeable battery to extend operating time Integrated automatic battery charging Charging socket for supplied charger 1 input via comb. jack mic (XLR)/line (6.3 mm), gain control, tone control, mic input with 12 V phantom power 1 stereo line input via RCA jacks, gain control, tone control MIX OUT output (RCA) Output for a speaker (min. impedance: 4 Ω), either additionally or alternatively to existing speakers Adjustable voice over function Limiter function Nylon backpack with storage pockets Matching microphone transmitters or pocket transmitters are available at option, e.g. TXA-800HT and TXA-800HSE. Licence-free in the EU.

About

Portable amplifier system,
for processions and other mobile applications.

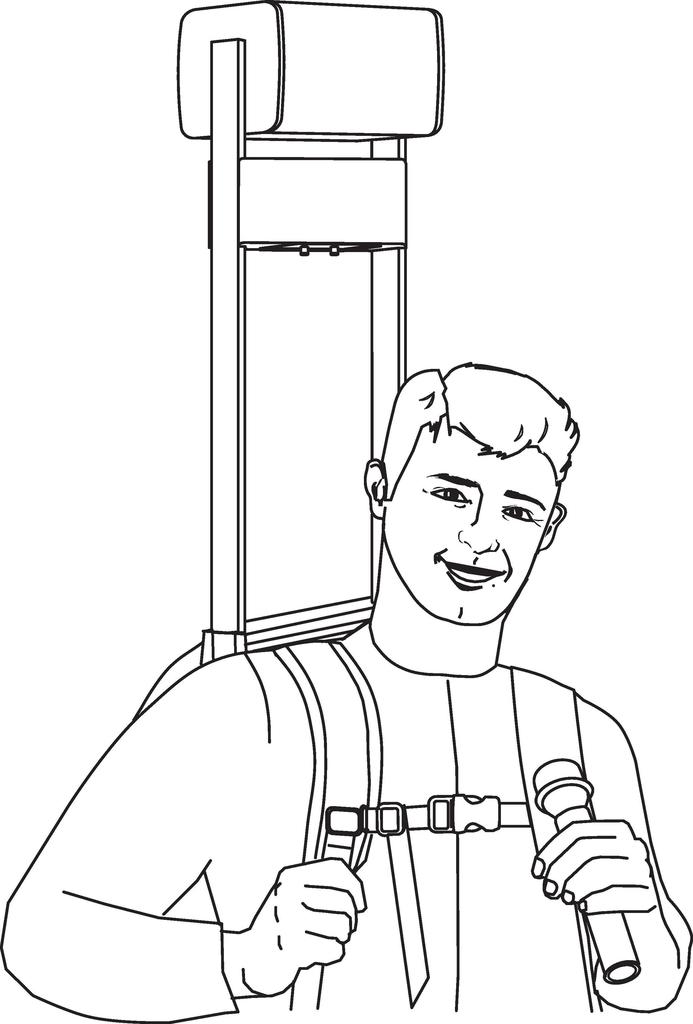

  • Very comfortable to wear and great mobility due to backpack method
  • 1 speaker with 4 speaker chassis
  • Class D power amplifier
  • Integrated 2-channel multifrequency wireless receiver (TXA-1822MR)
  • Bluetooth receiver for wireless connection of mobile audio devices
  • Adjustable USB/SD card player with connection for external storage media
  • Built-in rechargeable lead gel battery 12 V/7.2 Ah (operating time: up to 7 hours)
  • Compartment for spare rechargeable battery to extend operating time
  • Integrated automatic battery charging
  • Charging socket for supplied charger
  • 1 input via comb. jack mic (XLR)/line (6.3 mm), gain control, tone control, mic input with 12 V phantom power
  • 1 stereo line input via RCA jacks, gain control, tone control
  • MIX OUT output (RCA)
  • Output for a speaker (min. impedance: 4 Ω), either additionally or alternatively to existing speakers
  • Adjustable voice over function
  • Limiter function
  • Nylon backpack with storage pockets

Matching microphone transmitters or pocket transmitters are available at option, e.g. TXA-800HT and TXA-800HSE.

Licence-free in the EU.

Specifications

Rated power (PRMS) 70 W
Peak output power 80 W
Frequency range 80-20,000 Hz
Carrier frequency 863.1-864.9 MHz
Operating range ≈ 100 m
Inputs 2 mV (mic),

14 mV (line, jack),

80 mV (line, RCA)

Link 300 mV
Power supply rech. batt. 12 V/7.2 Ah
Admiss. ambient temp. 0-40 °C
Dimensions Total length: 120 cm
Weight 7.7 kg

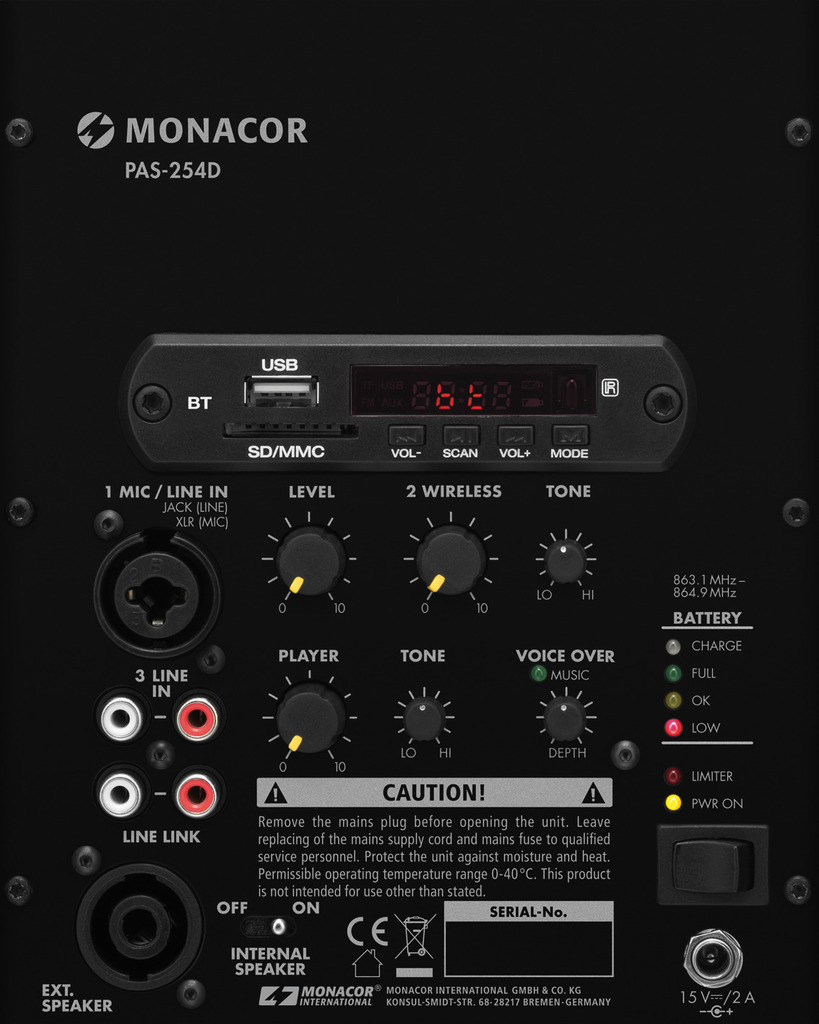

Connections 1 x XLR (mic),

1 x 6.3 mm jack (line),

1 x RCA L/R (line in),

1 x RCA L/R (line out),

1 x USB,

1 x SPEAKER
