Order no.: 0129810

PAST-500/SW

Order no.: 0129810

Wall bracket for PA speaker systems

Black lacquered
Pivoting (approx. 150°) and tilting (approx. 30°), with removable slide
Mandrel for accepting e.g. PA speaker systems with stand insert as well as carrier plates and adpater plates

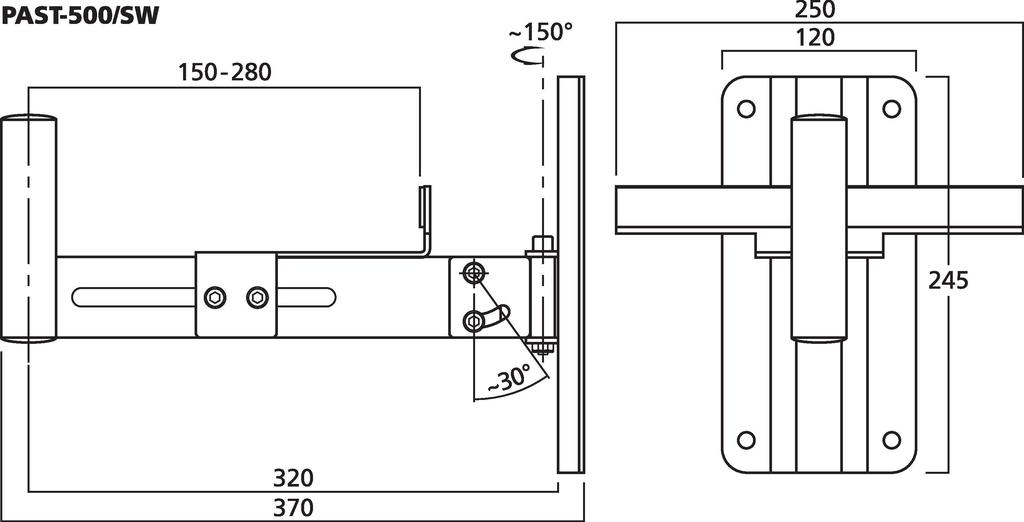

Distance between mandrel and mounting plate: 320 mm
Total length: 370 mm
Load capacity: 30 kg

Safety Note

To be installed by experts only! Pay attention to precise screw connection! Please use suitable safety ropes!

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

Wall bracket for PA speaker systems

Black lacquered
Pivoting (approx. 150°) and tilting (approx. 30°), with removable slide
Mandrel for accepting e.g. PA speaker systems with stand insert as well as carrier plates and adpater plates
Distance between mandrel and mounting plate: 320 mm
Total length: 370 mm
Load capacity: 30 kg

Safety Note

To be installed by experts only! Pay attention to precise screw connection! Please use suitable safety ropes!

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Description	wall bracket
Suitable for	PA speaker systems
Features	mandrel
Material	metal
Colour	black
Max. load/centr. weight concentr.	30 kg
Pivoting	150°
Tilting	30°
Length	370 mm
Weight	2.34 kg
