Order no.: 0111140

PAST-515/SW

Order no.: 0111140

PAST-515/SW

Wall bracket for compact PA speaker systems Black lacquered Pivoting (approx. 150°) and tilting (approx. 30°) Mandrel for accepting e.g. PA speaker systems with stand insert as well as carrier plates and adapter plates Distance between mandrel and mounting plate: 175 mm Total length: 210 mm Load capacity: 30 kg Safety Note To be installed by experts only! Pay attention to precise screw connection! Please use suitable safety ropes!

About

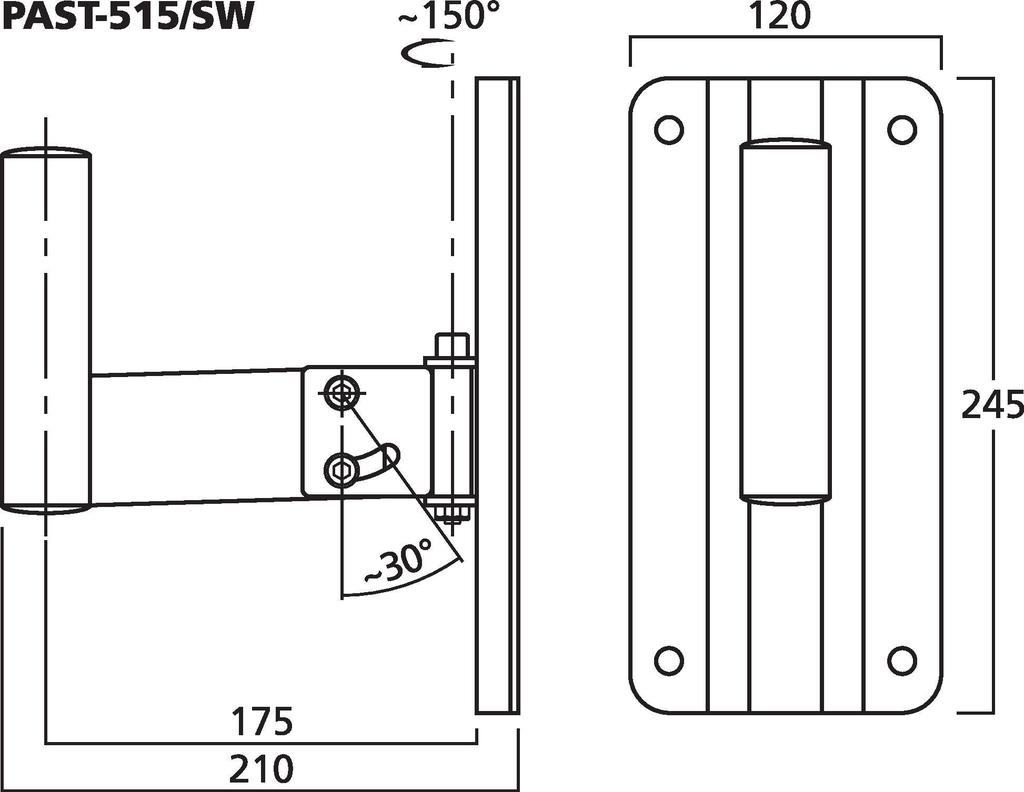

Wall bracket for compact PA speaker systems
  • Black lacquered
  • Pivoting (approx. 150°) and tilting (approx. 30°)
  • Mandrel for accepting e.g. PA speaker systems with stand insert as well as carrier plates and adapter plates
  • Distance between mandrel and mounting plate: 175 mm
  • Total length: 210 mm
  • Load capacity: 30 kg
Safety Note
To be installed by experts only! Pay attention to precise screw connection! Please use suitable safety ropes!

Specifications

Description wall bracket
Suitable for PA speaker systems
Features mandrel
Material metal
Colour black
Max. load/centr. weight concentr. 30 kg
Length 210 mm
Weight 1.54 kg
