Order no.: 0110090

PAST-68/SW

Order no.: 0110090

PAST-68/SW

Push-on tilting adapter with mounting plate
  • Adjustable tilting angle, to be secured with locking screw
  • Black lacquered steel version
  • Mounting plate (90 x 105 mm) with 4 mounting holes and 2 elongated holes for accepting speaker systems
  • Suitable for stands with a standard diameter
  • Maximum load: 15 kg
  • Supplied with 2 locking screws and 4 self-cutting mounting screws
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

About

Push-on tilting adapter with mounting plate
  • Adjustable tilting angle, to be secured with locking screw
  • Black lacquered steel version
  • Mounting plate (90 x 105 mm) with 4 mounting holes and 2 elongated holes for accepting speaker systems
  • Suitable for stands with a standard diameter
  • Maximum load: 15 kg
  • Supplied with 2 locking screws and 4 self-cutting mounting screws
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Description push-on tilting adapter
Suitable for stands with standard diameter
Material steel
Colour black

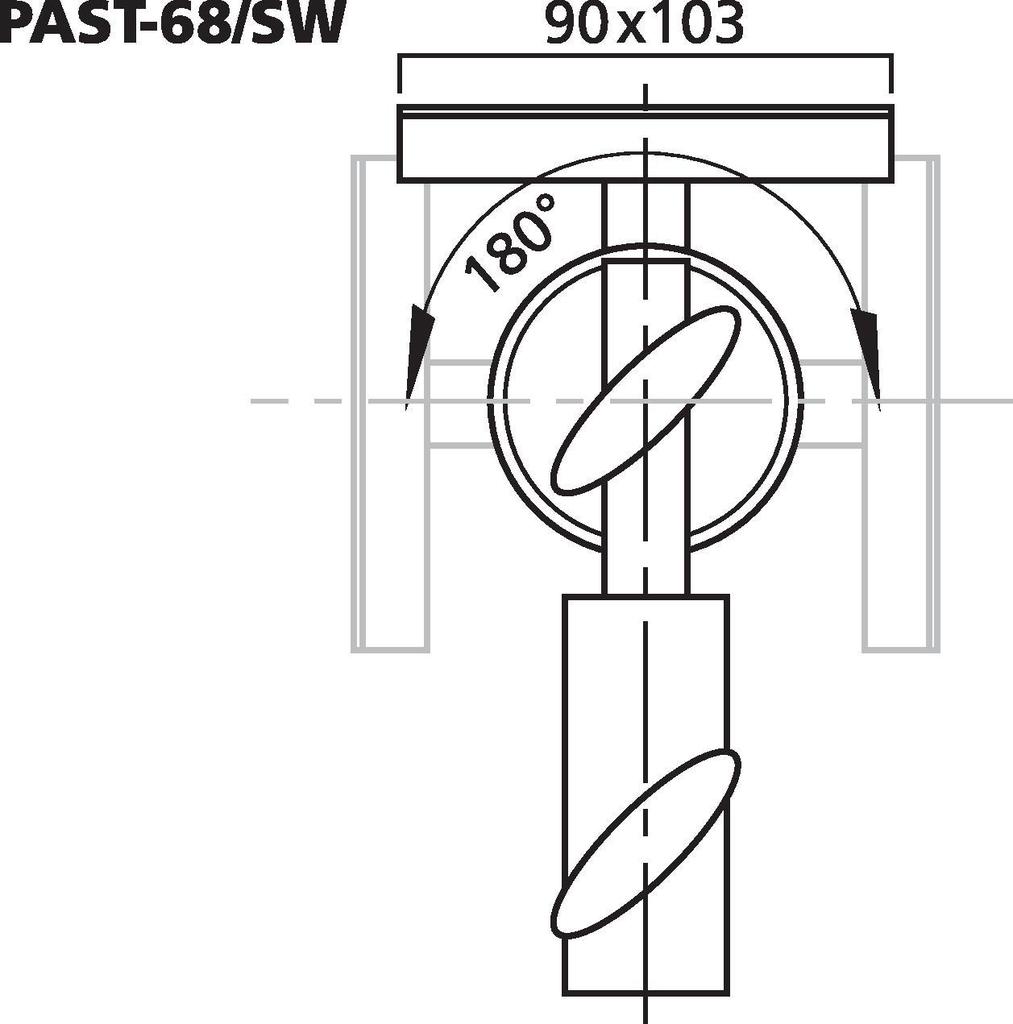

Mounting plate 90 x 105 mm
Tilting 180°
Weight 775 g
EAN code 4007754186222
Net weight 0.775 kg
