Order no.: 0110610

PAST-84/SW

Order no.: 0110610

PAST-84/SW

Wall bracket for PA speaker systems Black lacquered, robust special square tube design Tilting angle adjustable in 4 steps (90-115°), to be secured with locking screw Max. distance between mandrel and wall-mounted square profile tube: 470 mm Load capacity: 25 kg Safety Note To be installed by experts only! Pay attention to precise screw connection! Please use suitable safety ropes!

continue

About

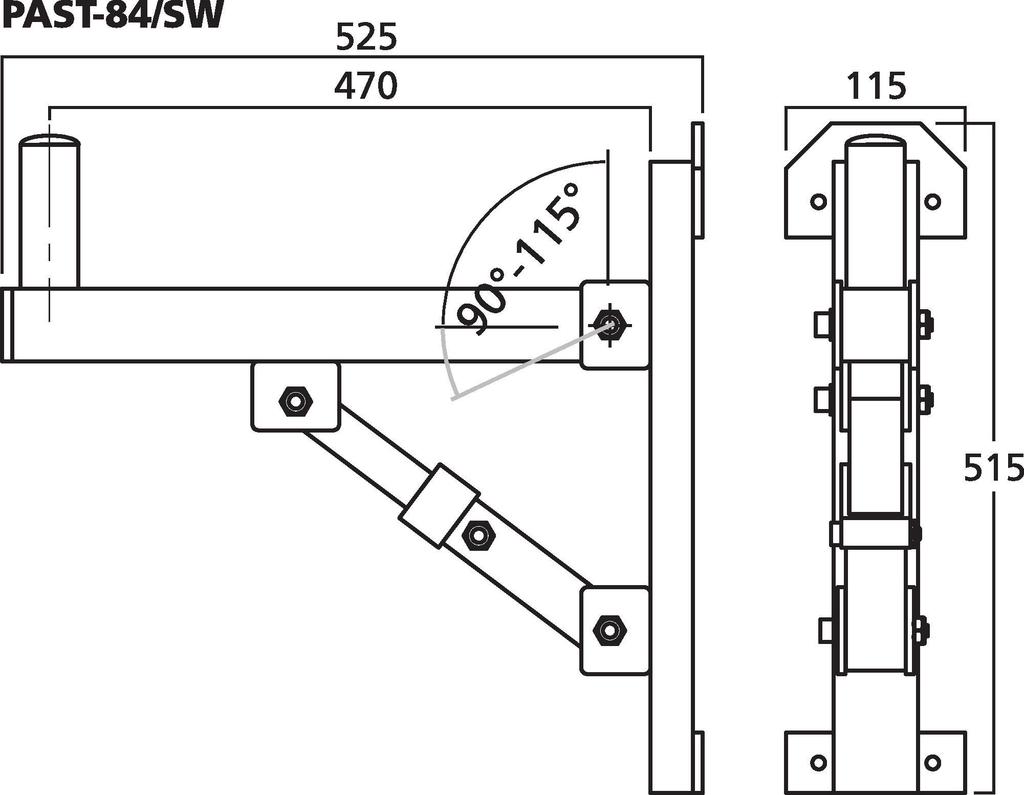

Wall bracket for PA speaker systems

Black lacquered, robust special square tube design
Tilting angle adjustable in 4 steps (90-115°), to be secured with locking screw
Max. distance between mandrel and wall-mounted square profile tube: 470 mm
Load capacity: 25 kg

Safety Note

To be installed by experts only! Pay attention to precise screw connection! Please use suitable safety ropes!

Specifications

Description	wall bracket
Suitable for	PA speaker systems
Features	mandrel
Material	metal
Colour	black
Max. load/centr. weight concentr.	25 kg
Length	470 mm
Weight	2.805 kg
