Order no.: 0111270

PAST-88/SW

Order no.: 0111270

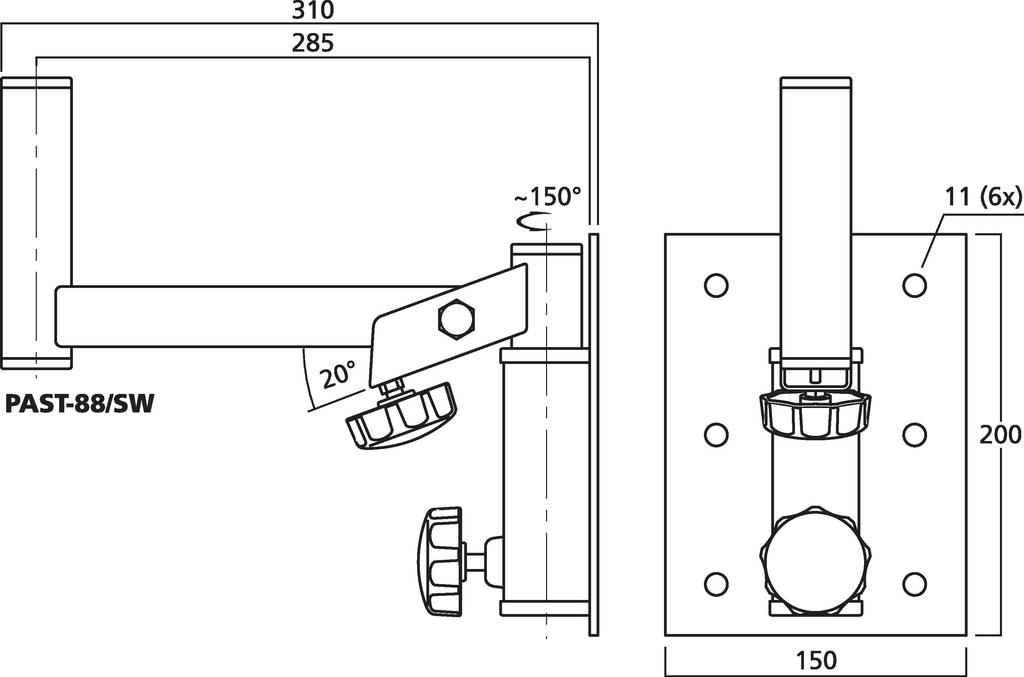

Wall bracket for PA speaker systems

Black lacquered
Pivoting (approx. 150°) and tilting (approx. 20°), to be secured with locking screws
Mandrel for accepting e.g. PA speaker systems with stand insert as well as carrier plates and adapter plates
Distance between mandrel and mounting plate: 285 mm
Total length: 310 mm
Load capacity: 20 kg

Safety Note

To be installed by experts only! Pay attention to precise screw connection! Please use suitable safety ropes!

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

Wall bracket for PA speaker systems

Black lacquered
Pivoting (approx. 150°) and tilting (approx. 20°), to be secured with locking screws
Mandrel for accepting e.g. PA speaker systems with stand insert as well as carrier plates and adapter plates
Distance between mandrel and mounting plate: 285 mm
Total length: 310 mm
Load capacity: 20 kg

Safety Note

To be installed by experts only! Pay attention to precise screw connection! Please use suitable safety ropes!

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Description	wall bracket
Suitable for	PA speaker systems
Features	mandrel
Material	metal
Colour	black
Max. load/centr. weight concentr.	20 kg
Mounting plate	150 x 200 mm
Pivoting	150°
Tilting	20°
Length	310 mm
Weight	2.024 kg
Special feature	pivoting and tilting
